Roxtec solutions

Roxtec TB seal with SL TB

Roxtec solutions · Roxtec

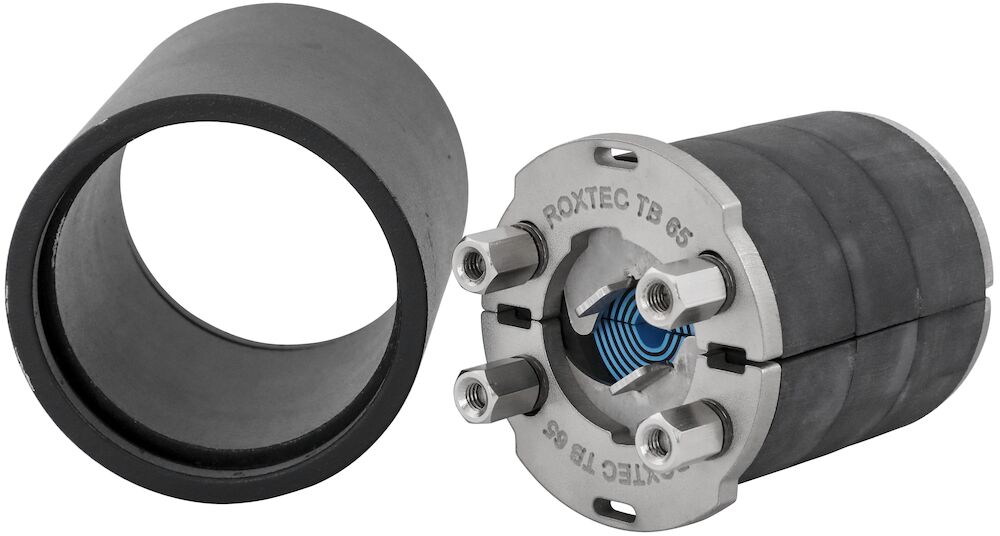

The Roxtec TB (tank boundary) with SL TB is a round seal with a steel sleeve for a single cable or pipe. The entry seal has two halves with removable rubber layers making it adaptable to cables and pipes of different sizes. The front fittings ensure mechanical anchorage in the sleeve. The SL TB sleeve is welded to the structure.

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Request a quote for this product

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

TB 65 KIT AISI316 WOC/PRIMED

Art. No. 184905

Aperture dimension Ø (mm)
80 - 82
Configuration
1x (4.0-30.0)
External dimension Ø (mm)
80
Weight (kg)
1.61
Quote this article number

TB 65 KIT AISI316 WOC/AISI316

Art. No. 196482

Aperture dimension Ø (mm)
80 - 82
Configuration
1x (4.0-30.0)
External dimension Ø (mm)
80
Weight (kg)
1.65
Quote this article number

TB 105 KIT AISI316 WOC/PRIMED

Art. No. 200102

Aperture dimension Ø (mm)
120 - 122
Configuration
1x (24.0-54.0)
External dimension Ø (mm)
136
Weight (kg)
2.83
Quote this article number

TB 105 KIT AISI316 WOC/AISI316

Art. No. 200103

Aperture dimension Ø (mm)
120 - 122
Configuration
1x (24.0-54.0)
External dimension Ø (mm)
136
Weight (kg)
2.86
Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

Source checked 2026-08-08: official Roxtec product page.

About Roxtec solutions

Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.

Typical applications:

Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
