RS 25 BG AISI316
Art. No. 164758
- Aperture dimension Ø (mm)
- 25 - 26
- Configuration
- 1x (3.6-12.0)
- External dimension Ø (mm)
- 32
- Weight (kg)
- 0.09
Roxtec solutions

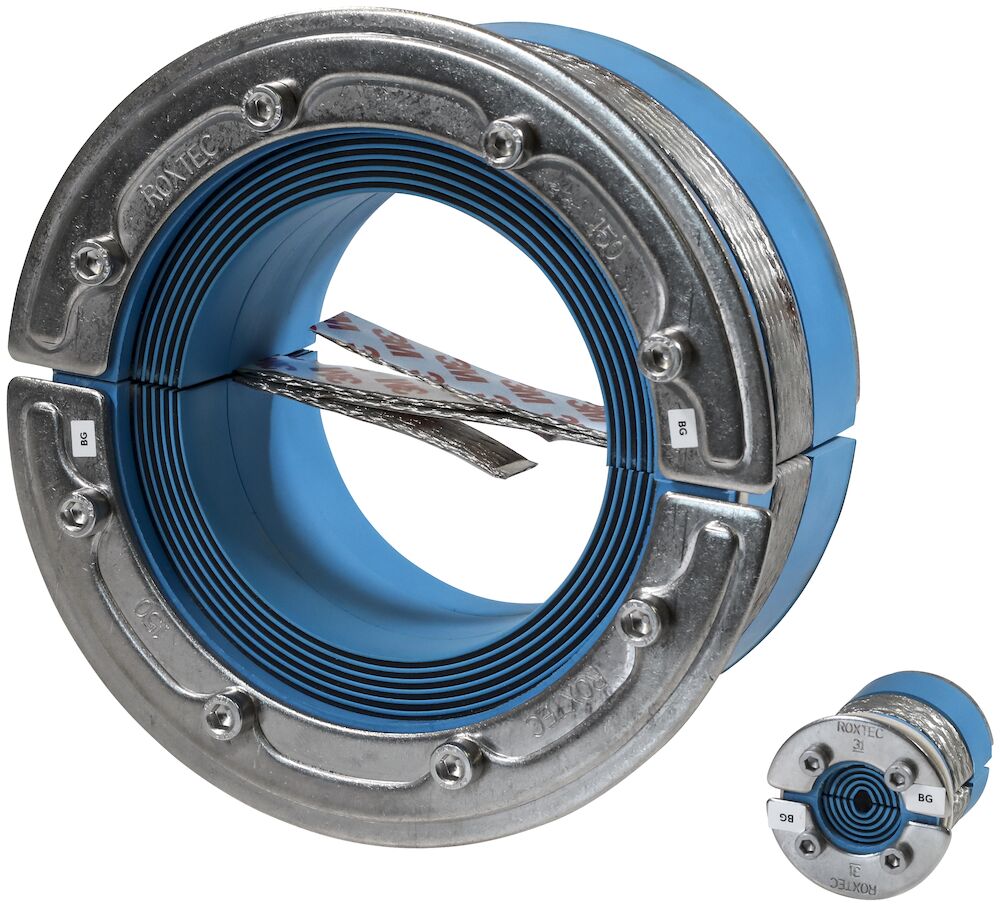

Roxtec RS BG™ seal
Roxtec solutions · Roxtec
The Roxtec RS BG™ seal for single armored or metal-clad cables or metallic pipes is ideal for bonding and grounding applications with fire and tightness requirements.
- Rodent resistant
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS 31 BG AISI316
Art. No. 164773
- Aperture dimension Ø (mm)
- 31 - 32
- Configuration
- 1x (4.0-17.0)
- External dimension Ø (mm)
- 37
- Weight (kg)
- 0.08
RS 43 BG AISI316
Art. No. 164774
- Aperture dimension Ø (mm)
- 43 - 45
- Configuration
- 1x (4.0-23.0)
- External dimension Ø (mm)
- 53
- Weight (kg)
- 0.26
RS 50 BG AISI316
Art. No. 125982
- Aperture dimension Ø (mm)
- 50 - 52
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 60
- Weight (kg)
- 0.34
RS 68 BG AISI316
Art. No. 164776
- Aperture dimension Ø (mm)
- 68 - 70
- Configuration
- 1x (26.0-48.0)
- External dimension Ø (mm)
- 78
- Weight (kg)
- 0.57
RS 75 BG AISI316
Art. No. 164777
- Aperture dimension Ø (mm)
- 75 - 77
- Configuration
- 1x (24.0-54.0)
- External dimension Ø (mm)
- 85
- Weight (kg)
- 0.67
RS 100 BG AISI316
Art. No. 164778
- Aperture dimension Ø (mm)
- 100 - 102
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 110
- Weight (kg)
- 1.15
RS 100 BG AISI316 WOC
Art. No. 182934
- Aperture dimension Ø (mm)
- 100 - 102
- Configuration
- 1x (48.0-70.0)
- External dimension Ø (mm)
- 110
- Weight (kg)
- 1
RS 125 BG AISI316
Art. No. 164779
- Aperture dimension Ø (mm)
- 125 - 127
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 145
- Weight (kg)
- 1.7
RS 125 BG AISI316 WOC
Art. No. 190074
- Aperture dimension Ø (mm)
- 125 - 127
- Configuration
- 1x (66.0-98.0)
- External dimension Ø (mm)
- 145
- Weight (kg)
- 1.46
RS 150 BG AISI316 WOC
Art. No. 164780
- Aperture dimension Ø (mm)
- 150 - 152
- Configuration
- 1x (93.0-119.0)
- External dimension Ø (mm)
- 170
- Weight (kg)
- 1.83
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RS BG (en) pdf (manufacturer document)
- Roxtec RS BG seal for metal pipes (en) pdf (manufacturer document)
- S1508686 RS BG RS 25-150 BG PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
