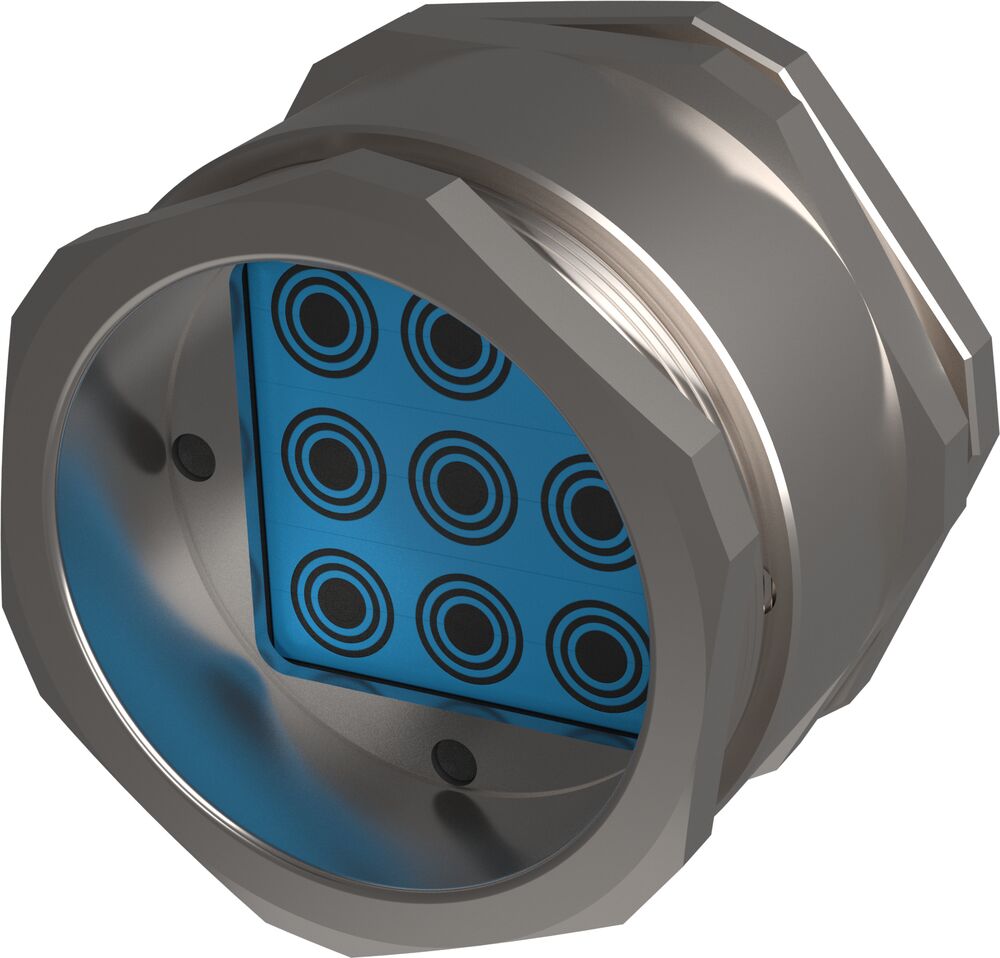

Roxtec RG M63 seal representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec RG M63 seal

Roxtec solutions · Product details and source-listed options

The Roxtec RG M63 is a round entry seal for multiple cables. The transit fits standard ISO 63 knock-outs and can accommodate from 1 to 9 cables. This cable gland option is available in 316 stainless steel.

  • Area efficient
  • Allows pre-terminated cables

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 3 article options

RG M63/1 AISI316

Art. No. RG00063010021

Aperture dimension Ø (mm)
63 - 64
Configuration
1x (9.5-32.5)
External dimension Ø (mm)
74
Weight (kg)
0.55
Quote this article number

RG M63/4 AISI316

Art. No. RG00063040021

Aperture dimension Ø (mm)
63 - 64
Configuration
4x (3.5-16.5)
External dimension Ø (mm)
74
Weight (kg)
0.55
Quote this article number

RG M63/9 AISI316

Art. No. RG00063090021

Aperture dimension Ø (mm)
63 - 64
Configuration
9x (3.5-10.5)
External dimension Ø (mm)
74
Weight (kg)
0.55
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (4)

Product sources

About Roxtec solutions

Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.

Typical applications:

  • Cable and pipe penetrations
  • New construction
  • Retrofit and upgrade work

Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
