SLA R 50/1 GALV
Art. No. 164393
- Aperture dimension Ø (mm)
- 34 - 40
- Configuration
- 1x (10.0-25.0)
- External dimension Ø (mm)
- 60
- Weight (kg)
- 1.05
Roxtec solutions

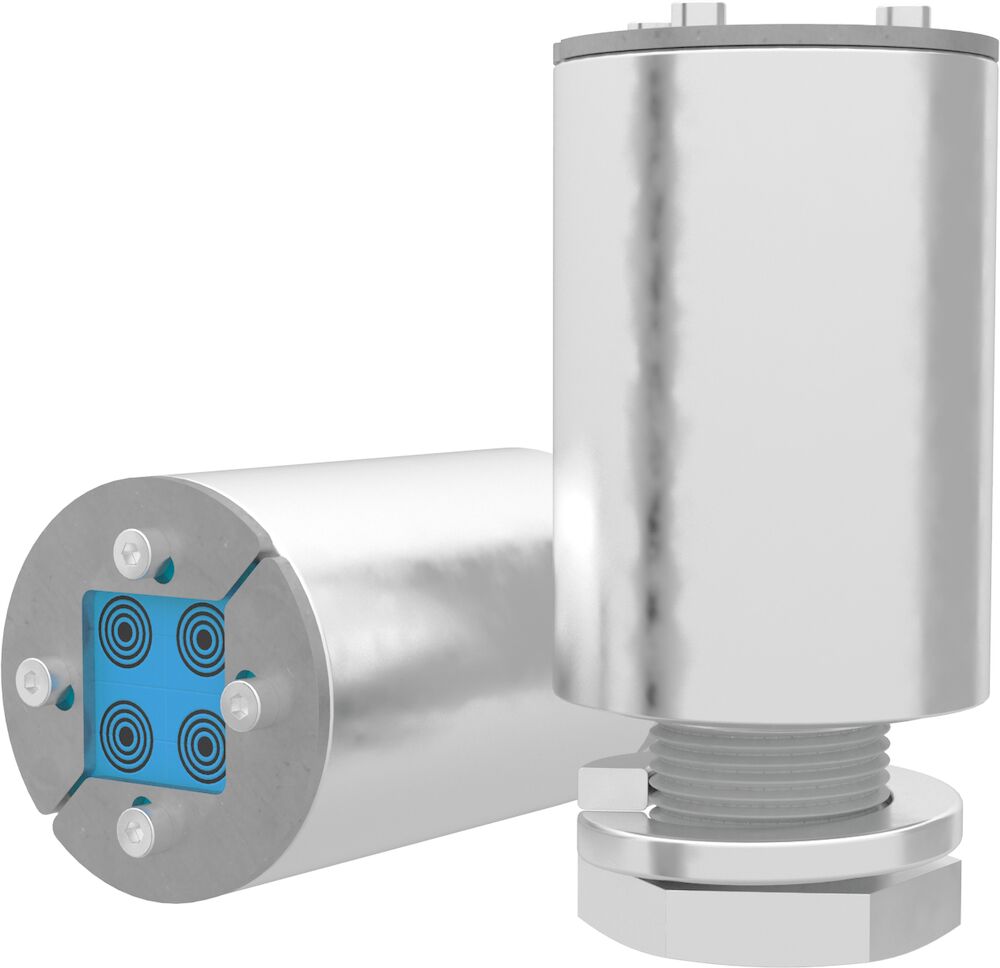

Roxtec R transit with SLA
Roxtec solutions · Roxtec
The Roxtec R with SLA is a multi-cable transit with sleeve for round holes. The compression is integrated in the transit frame so it seals by expansion. The standard sealing modules are adaptable to cables of different sizes and can be used to build in spare capacity in the transit. The sleeve is threaded and is attached to the structure with a counter nut.
- Area efficient
- Perfect for retrofit
- Quick and easy to install
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SLA R 50/4 GALV
Art. No. 164395
- Aperture dimension Ø (mm)
- 34 - 40
- Configuration
- 4x (3.0-11.0)
- External dimension Ø (mm)
- 60
- Weight (kg)
- 1.06
SLA R 75/1 GALV
Art. No. 164401
- Aperture dimension Ø (mm)
- 42 - 49
- Configuration
- 1x (9.5-32.5)
- External dimension Ø (mm)
- 85
- Weight (kg)
- 1.8
SLA R 75/4 GALV
Art. No. 164403
- Aperture dimension Ø (mm)
- 42 - 49
- Configuration
- 4x (3.5-16.5)
- External dimension Ø (mm)
- 85
- Weight (kg)
- 1.82
SLA R 100/1 GALV
Art. No. 164409
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 1x (28.0-54.0)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.91
SLA R 100/4 GALV
Art. No. 164411
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 4x (10.0-25.0)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.9
SLA R 100/9 GALV
Art. No. 164413
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 3x (4.0-14.5), 6x (3.5-16.5)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.92
SLA R 100/16 GALV
Art. No. 164415
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 16x (3.0-11.0)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.85
SLA R 50/1 AISI316
Art. No. 164392
- Aperture dimension Ø (mm)
- 34 - 40
- Configuration
- 1x (10.0-25.0)
- External dimension Ø (mm)
- 60
- Weight (kg)
- 1.06
SLA R 50/4 AISI316
Art. No. 164394
- Aperture dimension Ø (mm)
- 34 - 40
- Configuration
- 4x (3.0-11.0)
- External dimension Ø (mm)
- 60
- Weight (kg)
- 1.07
SLA R 75/1 AISI316
Art. No. 164400
- Aperture dimension Ø (mm)
- 42 - 49
- Configuration
- 1x (9.5-32.5)
- External dimension Ø (mm)
- 85
- Weight (kg)
- 1.8
SLA R 75/4 AISI316
Art. No. 164402
- Aperture dimension Ø (mm)
- 42 - 49
- Configuration
- 4x (3.5-16.5)
- External dimension Ø (mm)
- 85
- Weight (kg)
- 1.95
SLA R 100/1 AISI316
Art. No. 164408
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 1x (28.0-54.0)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.93
SLA R 100/4 AISI316
Art. No. 164410
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 4x (10.0-25.0)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.92
SLA R 100/9 AISI316
Art. No. 164412
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 3x (4.0-14.5), 6x (3.5-16.5)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.92
SLA R 100/16 AISI316
Art. No. 164414
- Aperture dimension Ø (mm)
- 80 - 85
- Configuration
- 16x (3.0-11.0)
- External dimension Ø (mm)
- 111
- Weight (kg)
- 2.93
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- R (en) pdf (manufacturer document)
- SLA (en) pdf (manufacturer document)
- S1509323 SLA KIT R FRAMES PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
