LABSEAL C LTX/6
Art. No. 246143
- Aperture dimensions WxH (mm)
- 165(+2/-1) x 261(+2/-1)
- Configuration
- 6x (24.0-54.0)
- External dimensions WxHxD (mm)
- 201 x 296 x 146
- Weight (kg)
- 4.5
Roxtec

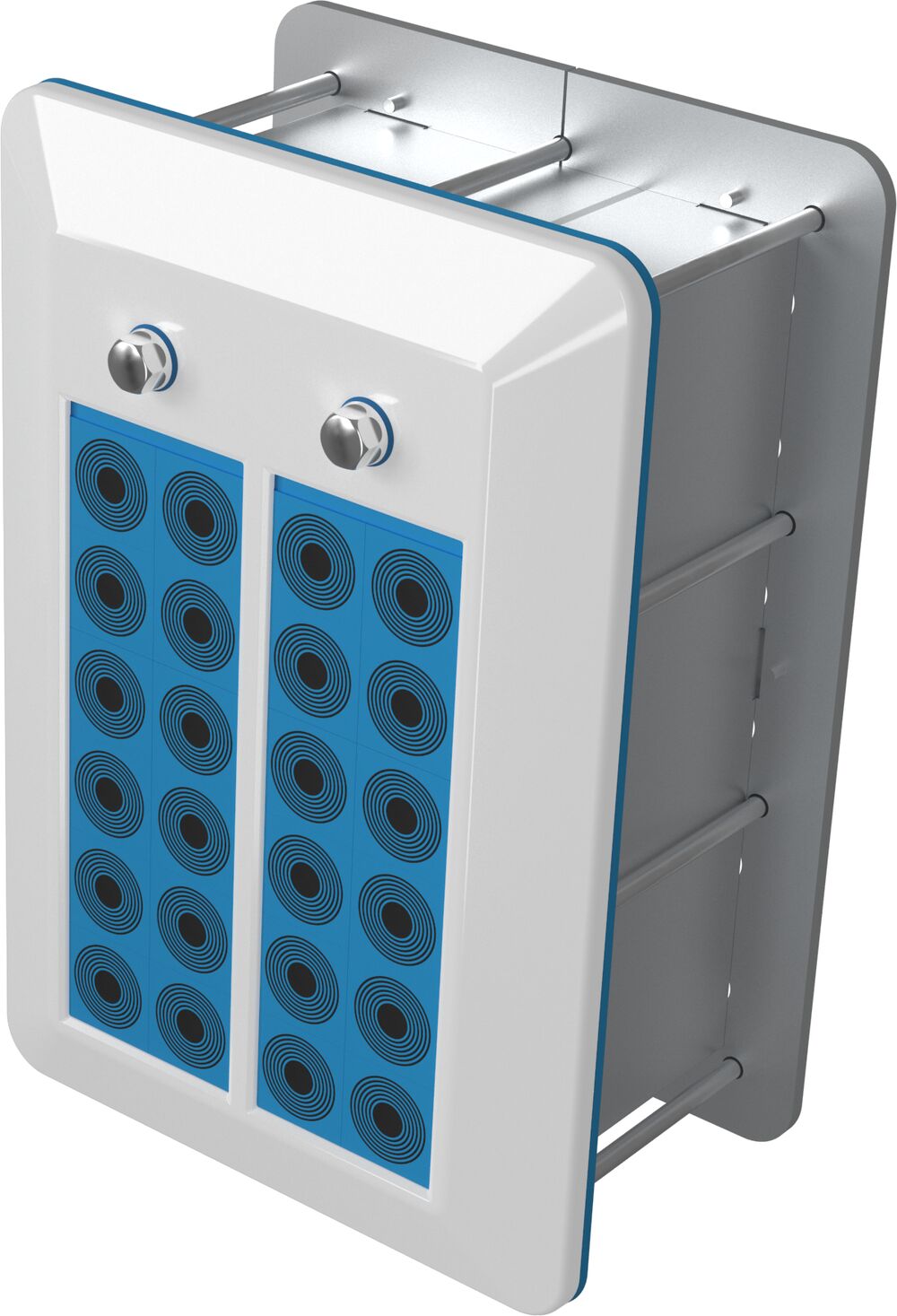

Roxtec LabSeal™ C LTX
The Roxtec LabSeal™ is optimized for cable and pipe penetrations in airtight facilities such as laboratories and cleanrooms. It is hygienically designed with an easy-to-clean powder-coated aluminum frame and a smooth surface with drainable edges, integrated compression units and hidden mounting screws. The lightweight and area efficient transit is easy to install. It ensures an airtight seal when attached to the wall or ceiling and provides spare capacity for future upgrades.
- Quick and easy to install
- Easy to maintain and inspect
- Provides built-in spare capacity
- Modular design
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
Listed 3 article options
LABSEAL C LTX/15
Art. No. 246142
- Aperture dimensions WxH (mm)
- 165(+2/-1) x 261(+2/-1)
- Configuration
- 12x (10.0-25.0), 3x (24.0-54.0)
- External dimensions WxHxD (mm)
- 201 x 296 x 146
- Weight (kg)
- 4.5
LABSEAL C LTX/24
Art. No. 246141
- Aperture dimensions WxH (mm)
- 165(+2/-1) x 261(+2/-1)
- Configuration
- 24x (10.0-25.0)
- External dimensions WxHxD (mm)
- 201 x 296 x 146
- Weight (kg)
- 4.54
Reference documents
These links open manufacturer-hosted reference files. Check each source document revision before use.
manufacturer document (4)
Product sources
- Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
