CRL 4"/1
Art. No. 102997
- Aperture dimension Ø (mm)
- 98 - 99
- Configuration
- 1x (24.0-54.0)
- External dimension Ø (mm)
- 115
- Weight (kg)
- 0.54
Roxtec solutions

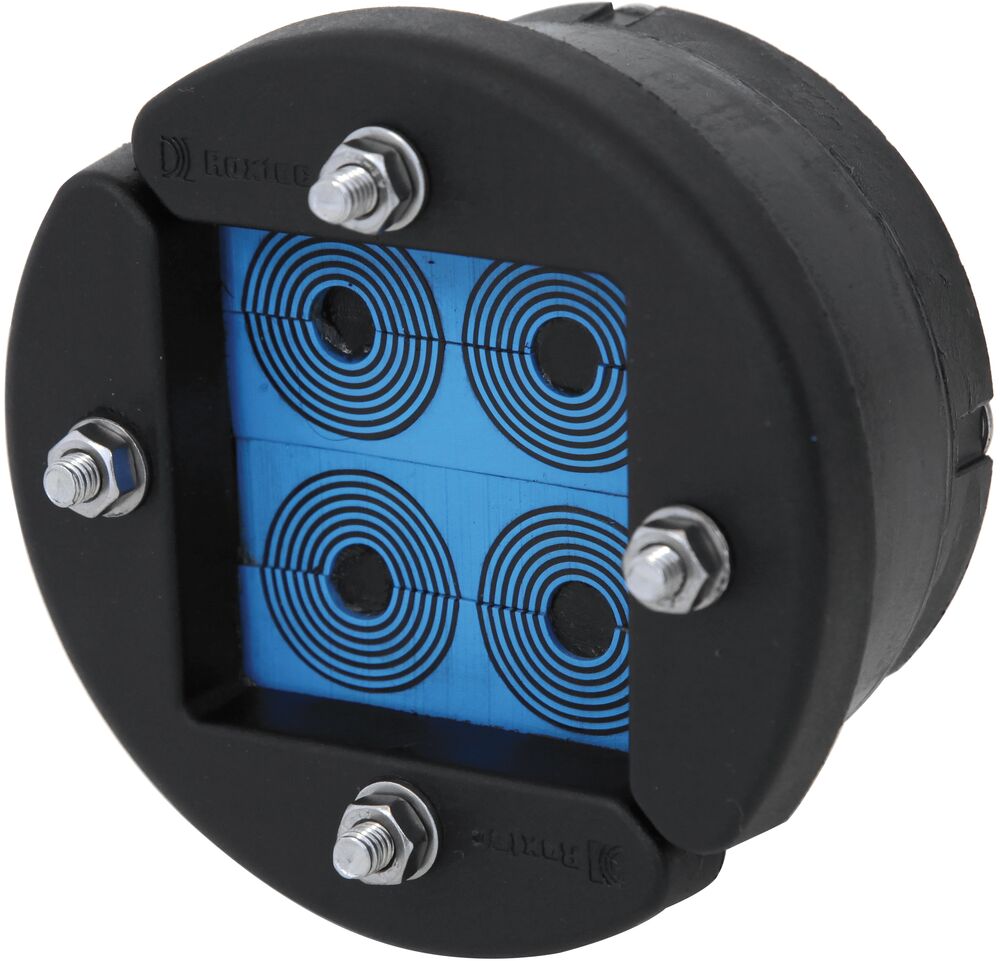

Roxtec CRL seal
Roxtec solutions · Roxtec
The Roxtec CRL is a round sealing solution for 4" and 5" holes. The square packing space in the frame houses sealing modules and cables, pipes and fiber optics. Compression is integrated in the frame.
- Light-weight
- Area efficient
- Adapts to cables and pipes of different sizes
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
CRL 4"/4
Art. No. 102993
- Aperture dimension Ø (mm)
- 98 - 99
- Configuration
- 4x (10.0-29.0)
- External dimension Ø (mm)
- 115
- Weight (kg)
- 0.57
CRL 4"/5
Art. No. 102994
- Aperture dimension Ø (mm)
- 98 - 99
- Configuration
- 2x (10.0-29.0), 3x (3.5-16.5)
- External dimension Ø (mm)
- 115
- Weight (kg)
- 0.57
CRL 4"/9
Art. No. 102995
- Aperture dimension Ø (mm)
- 98 - 99
- Configuration
- 9x (3.5-16.5)
- External dimension Ø (mm)
- 115
- Weight (kg)
- 0.56
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- CRL (en) pdf (manufacturer document)
- S1022631 CRL 4" KITS ASSEMBLY pdf (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
