ComSeal 10/4
Art. No. 105299
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 149(+1/-1)
- Configuration
- 2x (9.5-32.5), 2x (3.5-16.5)
- External dimensions WxHxD (mm)
- 80.5 x 173 x 55
- Weight (kg)
- 0.62
Roxtec solutions

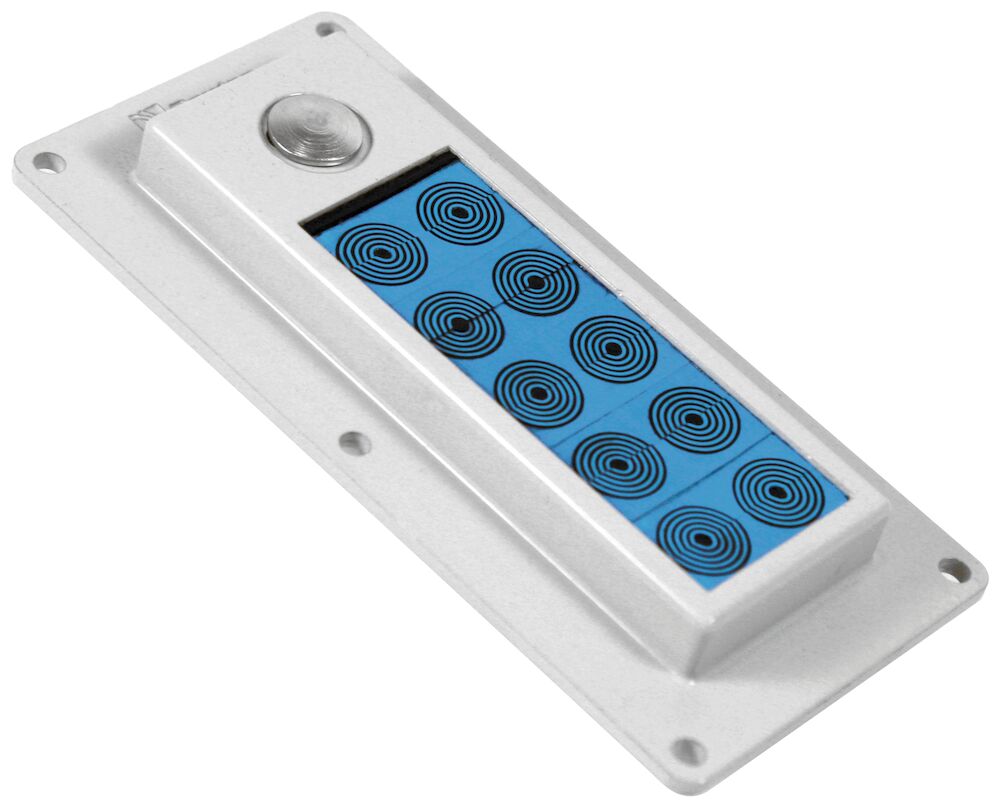

Roxtec ComSeal™
Roxtec solutions · Roxtec
The Roxtec ComSeal™ is rated for IP 55 and available with powder coated aluminum. The transit is available in six different sizes to accommodate up to 32 cables.
- Rodent resistant
- Corrosion resistant
- Light-weight
- Area efficient
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
ComSeal 10/7
Art. No. 105301
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 149(+1/-1)
- Configuration
- 6x (3.5-16.5), 1x (9.5-32.5)
- External dimensions WxHxD (mm)
- 80.5 x 173 x 55
- Weight (kg)
- 0.62
ComSeal 10/10
Art. No. 105302
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 149(+1/-1)
- Configuration
- 10x (3.5-16.5)
- External dimensions WxHxD (mm)
- 80.5 x 173 x 55
- Weight (kg)
- 0.61
ComSeal 12/3
Art. No. 105303
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 169(+1/-1)
- Configuration
- 3x (9.5-32.5)
- External dimensions WxHxD (mm)
- 88 x 216 x 55
- Weight (kg)
- 0.77
ComSeal 12/6
Art. No. 105305
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 169(+1/-1)
- Configuration
- 2x (9.5-32.5), 4x (3.5-16.5)
- External dimensions WxHxD (mm)
- 88 x 216 x 55
- Weight (kg)
- 0.78
ComSeal 12/9
Art. No. 105306
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 169(+1/-1)
- Configuration
- 8x (3.5-16.5), 1x (9.5-32.5)
- External dimensions WxHxD (mm)
- 88 x 216 x 55
- Weight (kg)
- 0.78
ComSeal 12/12
Art. No. 105307
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 169(+1/-1)
- Configuration
- 12x (3.5-16.5)
- External dimensions WxHxD (mm)
- 88 x 216 x 55
- Weight (kg)
- 0.78
ComSeal 15/3
Art. No. 105308
- Aperture dimensions WxH (mm)
- 61(+1/-1) x 195(+1/-1)
- Configuration
- 3x (28.0-44.0)
- External dimensions WxHxD (mm)
- 90.5 x 223 x 55
- Weight (kg)
- 0.86
ComSeal 16/4
Art. No. 105310
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 209(+1/-1)
- Configuration
- 4x (9.5-32.5)
- External dimensions WxHxD (mm)
- 80.5 x 233 x 55
- Weight (kg)
- 0.79
ComSeal 16/7
Art. No. 105312
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 209(+1/-1)
- Configuration
- 3x (9.5-32.5), 4x (3.5-16.5)
- External dimensions WxHxD (mm)
- 80.5 x 233 x 55
- Weight (kg)
- 0.8
ComSeal 16/10
Art. No. 105313
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 209(+1/-1)
- Configuration
- 2x (9.5-32.5), 8x (3.5-16.5)
- External dimensions WxHxD (mm)
- 80.5 x 233 x 55
- Weight (kg)
- 0.8
ComSeal 16/16
Art. No. 105314
- Aperture dimensions WxH (mm)
- 56(+1/-1) x 209(+1/-1)
- Configuration
- 16x (3.5-16.5)
- External dimensions WxHxD (mm)
- 80.5 x 233 x 55
- Weight (kg)
- 0.77
ComSeal 30/6
Art. No. 105315
- Aperture dimensions WxH (mm)
- 120(+1/-1) x 195(+1/-1)
- Configuration
- 6x (28.0-44.0)
- External dimensions WxHxD (mm)
- 155 x 231 x 55
- Weight (kg)
- 1.62
ComSeal 32/8
Art. No. 105316
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 8x (9.5-32.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 55
- Weight (kg)
- 1.4
ComSeal 32/14
Art. No. 105320
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 6x (9.5-32.5), 8x (3.5-16.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 55
- Weight (kg)
- 1.4
ComSeal 32/20
Art. No. 105321
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 4x (9.5-32.5), 16x (3.5-16.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 55
- Weight (kg)
- 1.39
ComSeal 32/32
Art. No. 105322
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 32x (3.5-16.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 55
- Weight (kg)
- 1.39
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- COMSEAL (en) pdf (manufacturer document)
- S1008266 COMSEAL 16 APERTURE DIMENSION pdf (manufacturer document)
- S1008267 COMSEAL 32 APERTURE DIMENSION pdf (manufacturer document)
- S1013122 COMSEAL 10 APERTURE DIMENSION PDF (manufacturer document)
- S1014129 COMSEAL 12 APERTURE DIMENSION pdf (manufacturer document)
- S1018204 COMSEAL 15 APERTURE DIMENSION pdf (manufacturer document)
- S1019307 COMSEAL 30 APERTURE DIMENSION pdf (manufacturer document)
- S1600631 COMSEAL 10 KITS PDF (manufacturer document)
- S1600649 COMSEAL 16 KITS PDF (manufacturer document)
- S1600651 COMSEAL 15 KITS PDF (manufacturer document)
- S1600655 COMSEAL 30 KITS PDF (manufacturer document)
- S1600659 COMSEAL 12 KITS PDF (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
