COMSEAL 32/8 BG
Art. No. 196985
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 8x (9.5-32.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 56
- Weight (kg)
- 1.84
Roxtec solutions

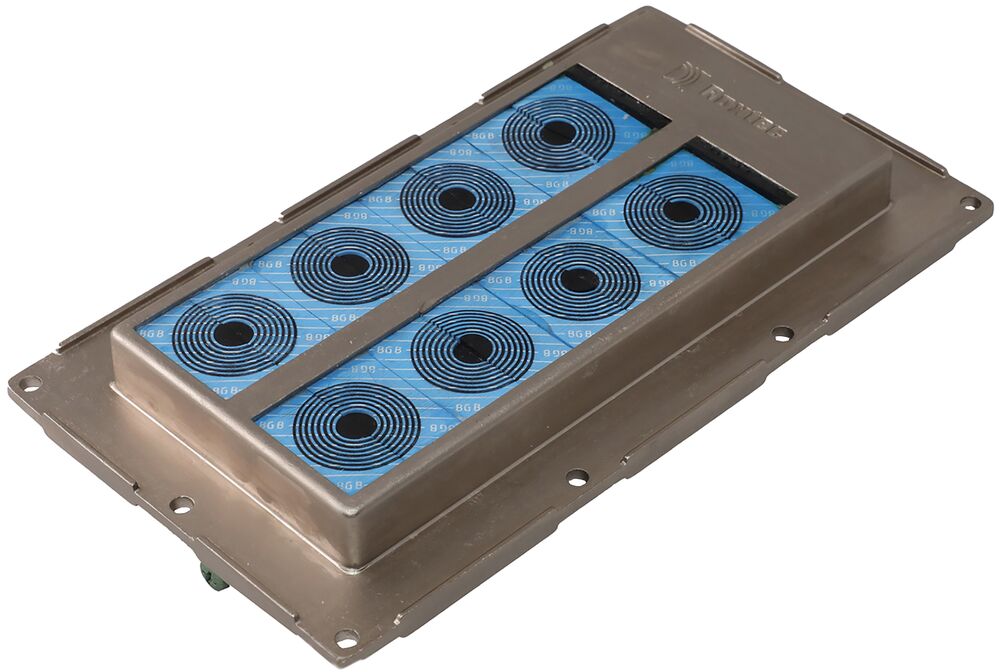

Roxtec ComSeal BG™ transit
Roxtec solutions · Roxtec
The Roxtec ComSeal BG™ is rated for IP 55 and designed for bonding and grounding of armored and metal-clad cables and pipes. The seal is available with frame in nickel-plated aluminum and in one size to accommodate up to 32 cables. The Roxtec BG™ sealing modules adapt to cables and pipes of different sizes and can be used to build in spare capacity in the seal.
- Rodent resistant
- Light-weight
- Area efficient
- Allows pre-terminated cables
- Provides built-in spare capacity
- Adapts to cables and pipes of different sizes
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
COMSEAL 32/20 BG
Art. No. 196984
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 16x (3.5-16.5), 4x (9.5-32.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 56
- Weight (kg)
- 1.82
COMSEAL 32/32 BG
Art. No. 196987
- Aperture dimensions WxH (mm)
- 103(+1/-1) x 209(+1/-1)
- Configuration
- 32x (3.5-16.5)
- External dimensions WxHxD (mm)
- 135 x 241 x 56
- Weight (kg)
- 1.83
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- CM BG B (en) pdf (manufacturer document)
- Roxtec ComSeal 32 BG (en) pdf (manufacturer document)
- CABLE PREPARATION (en) pdf (manufacturer document)
- S1008267 COMSEAL 32 APERTURE DIMENSION pdf (manufacturer document)
- Data sheet (metric) (manufacturer document)
- Data sheet (imperial) (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
Not sure this is the right product? Compare the Roxtec solutions family or describe your application.
