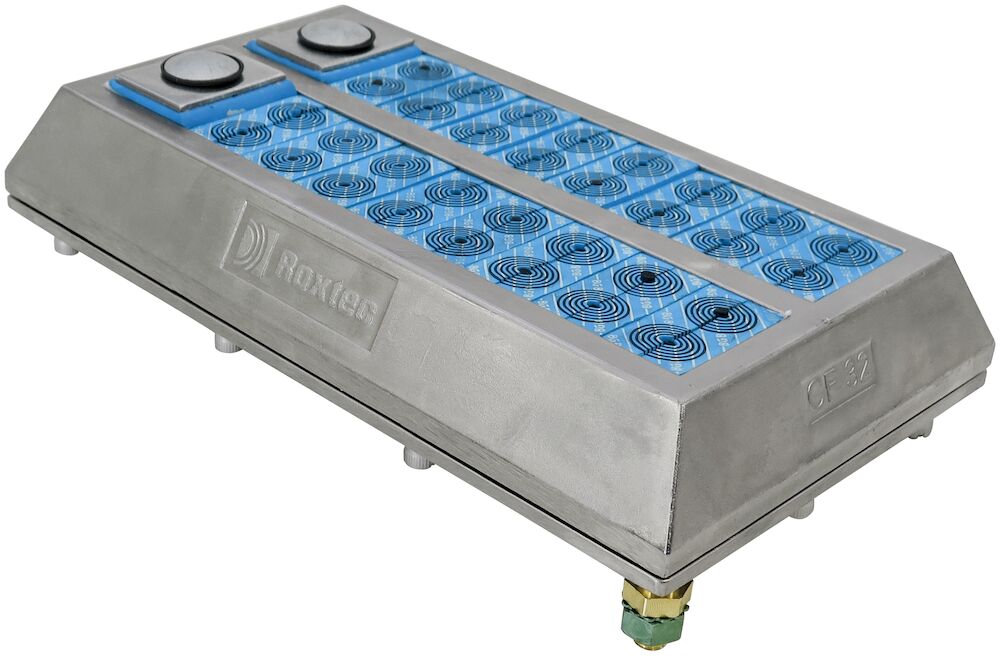

Roxtec CF 8/32 BG™ transit

Roxtec solutions · Roxtec

The Roxtec CF 8 BG™ and CF 32 BG™ are cable entry seals for bonding and grounding of armored and metal-clad cables. The transits have frames of cast nickel-plated aluminum. The Roxtec BG™ sealing modules are adaptable to different sizes of cable.

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Request a quote for this product

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

CF 8/8 BG B

Art. No. 103464

Aperture dimensions WxH (mm)
61(+0.5/-0.5) x 127(+0.5/-0.5)
Configuration
8x (3.5-16.5)
External dimensions WxHxD (mm)
75 x 140 x 65
Weight (kg)
0.86
Quote this article number

CF 32/20 BG B

Art. No. 103463

Aperture dimensions WxH (mm)
110(+0.5/-0.5) x 216(+0.5/-0.5)
Configuration
4x (9.5-32.5), 16x (3.5-16.5)
External dimensions WxHxD (mm)
130 x 230 x 65
Weight (kg)
2.55
Quote this article number

CF 32/32 BG B

Art. No. 103461

Aperture dimensions WxH (mm)
110(+0.5/-0.5) x 216(+0.5/-0.5)
Configuration
32x (3.5-16.5)
External dimensions WxHxD (mm)
130 x 230 x 65
Weight (kg)
2.5
Quote this article number

CF 32/8 BG B

Art. No. 103462

Aperture dimensions WxH (mm)
110(+0.5/-0.5) x 216(+0.5/-0.5)
Configuration
8x (9.5-32.5)
External dimensions WxHxD (mm)
130 x 230 x 65
Weight (kg)
2.55
Quote this article number
