Roxtec CF 16 Ex transit

Roxtec solutions · Roxtec

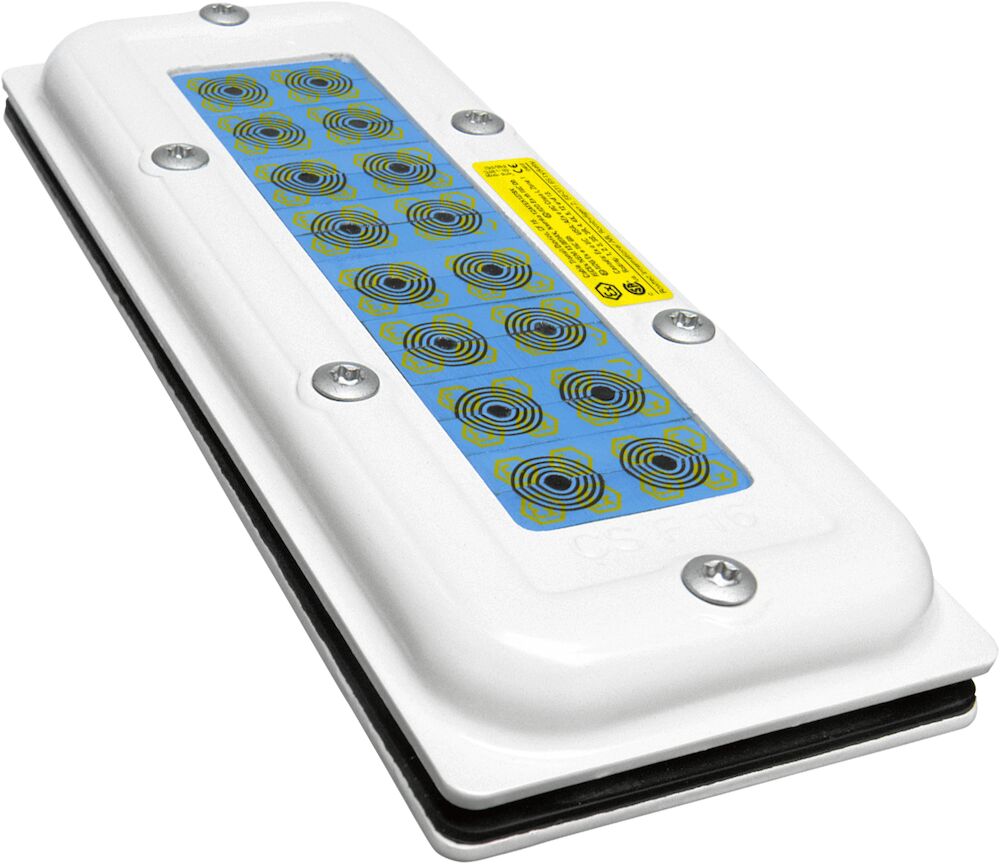

The Roxtec CF 16 Ex is a low profile cable entry seal for enclosures. The transit device is certified for use in Ex e and Ex tb areas. The seal is available in 304 stainless steel and openable versions, as well as for EMC applications.

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Request a quote for this product

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

CF 16/4 Ex AISI304

Art. No. EXECF16000421

Aperture dimensions WxH (mm)
71(+1/-1) x 187(+2/-0.5)
Configuration
4x (9.5-32.5)
External dimensions WxHxD (mm)
93 x 234 x 42
Weight (kg)
1.55
Quote this article number

CF 16/10 Ex AISI304

Art. No. EXECF16001021

Aperture dimensions WxH (mm)
71(-2) x 187
Configuration
2x (9.5-32.5), 8x (3.5-16.5)
External dimensions WxHxD (mm)
93 x 234 x 42
Weight (kg)
1
Quote this article number

CF 16/16 Ex AISI304

Art. No. EXECF16001621

Aperture dimensions WxH (mm)
71(-2) x 187
Configuration
16x (3.5-16.5)
External dimensions WxHxD (mm)
93 x 234 x 42
Weight (kg)
1.57
Quote this article number

CF 16/19 Ex AISI304

Art. No. EXECF16001921

Aperture dimensions WxH (mm)
71(-2) x 187
Configuration
6x (3.5-16.5), 12x (3.5-10.5), 1x (9.5-32.5)
External dimensions WxHxD (mm)
93 x 234 x 42
Weight (kg)
1.57
Quote this article number
