C RS SLO 43 ALU
Art. No. 234690
- Aperture dimension Ø (mm)
- 44 - 46
- Configuration
- 1x (4.0-23.0)
- External dimension Ø (mm)
- 63
- Weight (kg)
- 0.25
Roxtec

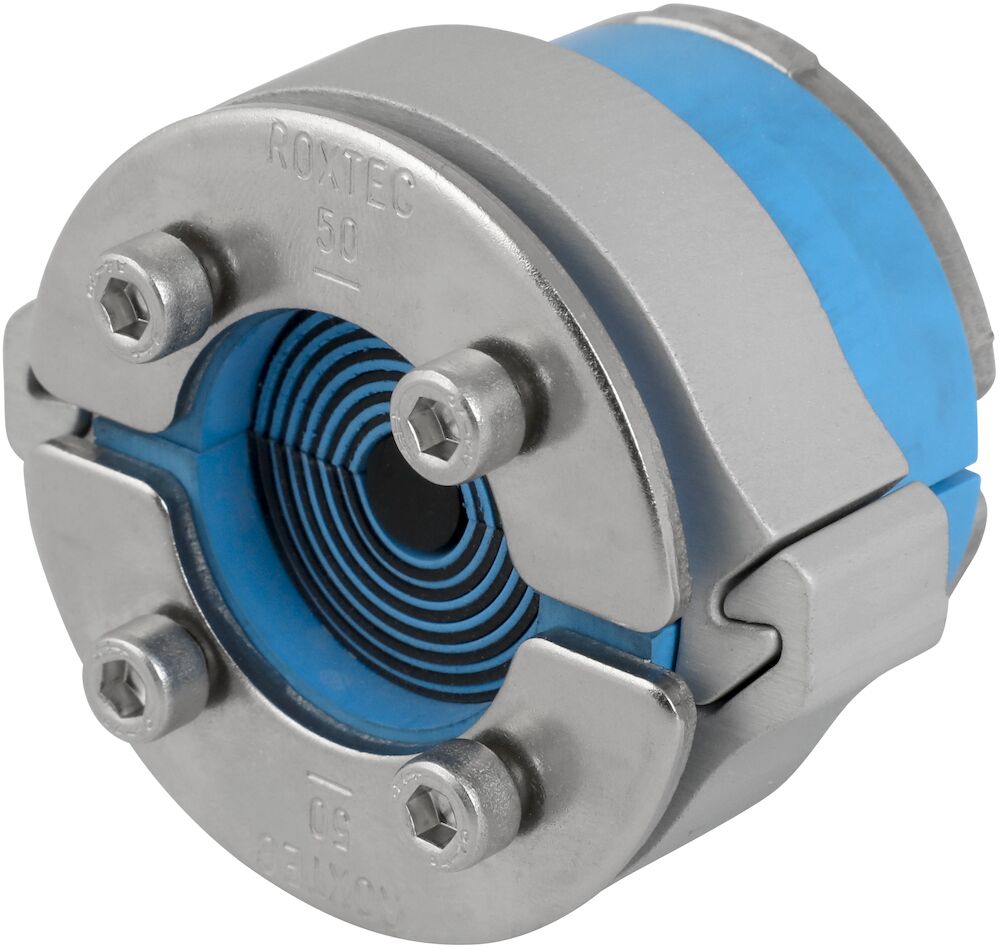

Roxtec C RS SLO seal
The Roxtec C RS SLO is a lightweight yet very strong sealing solution for single cable and pipe entries in cabinets, enclosures, and equipment. Providing ingress and fire protection as well as vibration-proof cable retention, it is ideal for mobility sectors such as rolling stock. The solution consists of an adaptable Roxtec C RS seal and a Roxtec C SLO sleeve. It is available in four different sizes to cover cables and pipes ranging from 4 to 54 mm.
- Light-weight
- Area efficient
- Allows pre-terminated cables
- Openable
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
Listed 4 article options
C RS SLO 50 ALU
Art. No. 234691
- Aperture dimension Ø (mm)
- 50 - 53
- Configuration
- 1x (8.0-30.0)
- External dimension Ø (mm)
- 70
- Weight (kg)
- 0.29
C RS SLO 68 ALU
Art. No. 234692
- Aperture dimension Ø (mm)
- 69 - 71
- Configuration
- 1x (26.0-48.0)
- External dimension Ø (mm)
- 91
- Weight (kg)
- 0.43
C RS SLO 75 ALU
Art. No. 234694
- Aperture dimension Ø (mm)
- 76 - 78
- Configuration
- 1x (24.0-54.0)
- External dimension Ø (mm)
- 98
- Weight (kg)
- 0.5
Reference documents
These links open manufacturer-hosted reference files. Check each source document revision before use.
manufacturer document (4)
Product sources
- Source checked 2026-08-08: official Roxtec product page.
About Roxtec solutions
Roxtec solutions group complete cable and pipe transit arrangements by application. Send the penetration details or a known part number so the requested scope can be reviewed.
Typical applications:
- Cable and pipe penetrations
- New construction
- Retrofit and upgrade work
