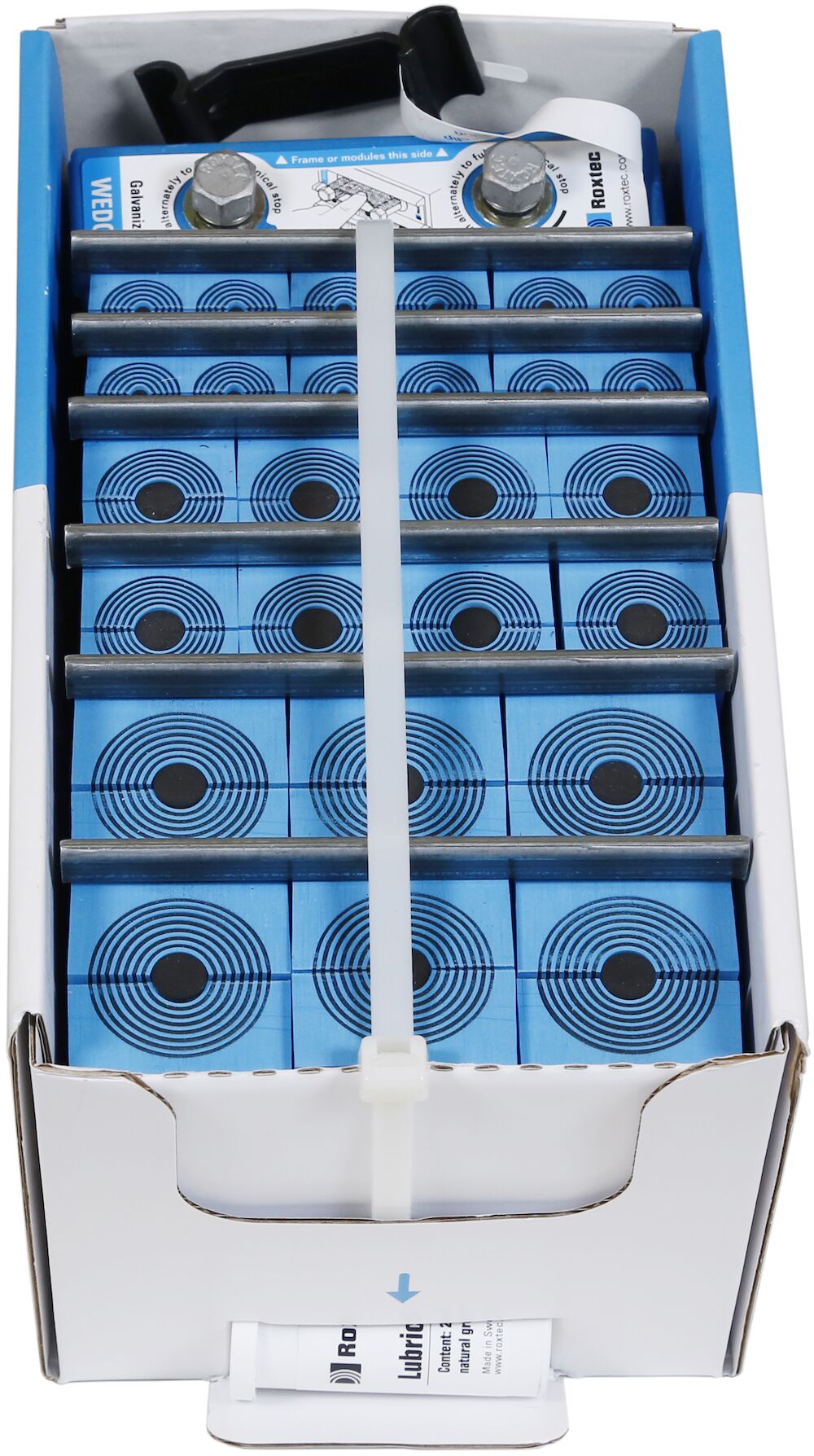

Roxtec sealing kit representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec sealing kit

Roxtec sealing components · Product details and source-listed options

The Roxtec sealing kit includes all components needed for sealing a rectangular Roxtec transit frame in size 6. The clearly arranged kit simplifies installation and keeps the number of articles to a minimum. It is available in three different configurations to match the cable and pipe density.

  • To be used with a Roxtec frame to form a complete solution

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 6 article options

SEALING KIT 6/18 GALV

Art. No. 112013

Configuration
6x (3.5-16.5), 12x (9.5-32.5)
External dimensions WxHxD (mm)
120 x 218 x 109
Weight (kg)
3.64
Quote this article number

SEALING KIT 6/19 GALV

Art. No. 112014

Configuration
2x (28.0-54.0), 3x (9.5-32.5), 8x (10.0-25.0), 6x (3.5-16.5)
External dimensions WxHxD (mm)
120 x 218 x 109
Weight (kg)
3.64
Quote this article number

SEALING KIT 6/26 GALV

Art. No. 112021

Configuration
6x (9.5-32.5), 8x (10.0-25.0), 12x (3.5-16.5)
External dimensions WxHxD (mm)
120 x 218 x 109
Weight (kg)
3.75
Quote this article number

SEALING KIT 6/18 AISI 316

Art. No. 112023

Configuration
12x (9.5-32.5), 6x (3.5-16.5)
External dimensions WxHxD (mm)
120 x 218 x 109
Weight (kg)
3.65
Quote this article number

SEALING KIT 6/19 AISI 316

Art. No. 112024

Configuration
2x (28.0-54.0), 3x (9.5-32.5), 8x (10.0-25.0), 6x (3.5-16.5)
External dimensions WxHxD (mm)
120 x 218 x 109
Weight (kg)
3.62
Quote this article number

SEALING KIT 6/26 AISI316

Art. No. 112026

Configuration
6x (9.5-32.5), 8x (10.0-25.0), 12x (3.5-16.5)
External dimensions WxHxD (mm)
120 x 218 x 109
Weight (kg)
3.75
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (1)

Product sources

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

  • Transit packing
  • Cable and pipe module selection
  • Transit completion and re-entry
