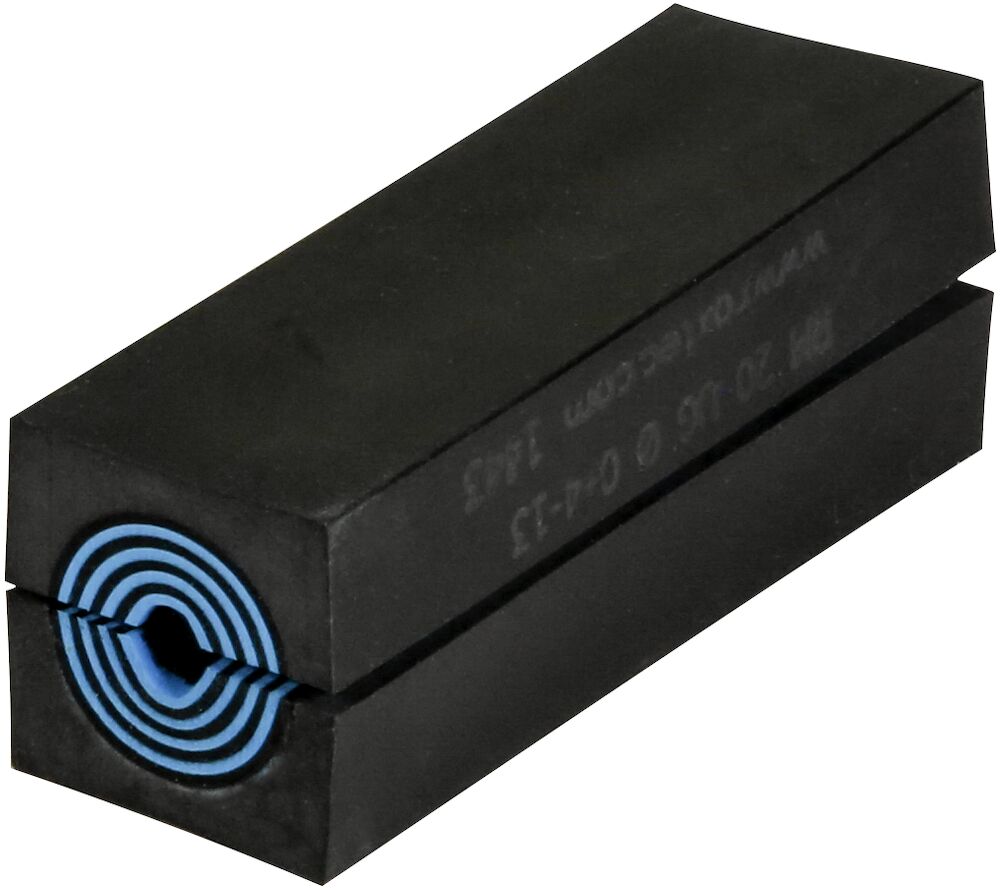

Roxtec RM UG™ module with Multidiameter™ representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec RM UG™ module with Multidiameter™

Roxtec sealing components · Product details and source-listed options

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. The UG version is used for transits in underground applications.

  • To be used with corresponding Roxtec components to form a complete sealing solution

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 8 article options

RM 20 UG

Art. No. 116871

External dimensions WxHxD (mm)
20 x 20 x 60
For cable/pipe Ø (mm)
4 - 13
Number of cables/pipes
1
Weight (kg)
0.03
Quote this article number

RM 20w40 UG

Art. No. 116870

External dimensions WxHxD (mm)
40 x 20 x 60
For cable/pipe Ø (mm)
4 - 13
Number of cables/pipes
2
Weight (kg)
0.06
Quote this article number

RM 30 UG

Art. No. 116837

External dimensions WxHxD (mm)
30 x 30 x 60
For cable/pipe Ø (mm)
10 - 23.5
Number of cables/pipes
1
Weight (kg)
0.06
Quote this article number

RM 40 UG

Art. No. 116865

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
9.5 - 31
Number of cables/pipes
1
Weight (kg)
0.12
Quote this article number

RM 60 UG

Art. No. 116869

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
24 - 52
Number of cables/pipes
1
Weight (kg)
0.28
Quote this article number

RM 80 UG

Art. No. 174929

External dimensions WxHxD (mm)
80 x 80 x 60
For cable/pipe Ø (mm)
48 - 68
Number of cables/pipes
1
Weight (kg)
0.5
Quote this article number

RM 80 UG WOC

Art. No. 177304

External dimensions WxHxD (mm)
80 x 80 x 60
For cable/pipe Ø (mm)
48 - 68
Number of cables/pipes
1
Weight (kg)
0.34
Quote this article number

RM 120 UG WOC

Art. No. 177306

External dimensions WxHxD (mm)
120 x 120 x 60
For cable/pipe Ø (mm)
67.5 - 96
Number of cables/pipes
1
Weight (kg)
0.86
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (1)

Product sources

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

  • Transit packing
  • Cable and pipe module selection
  • Transit completion and re-entry

Not sure this is the right product? Compare the Roxtec sealing components family or describe your application.
