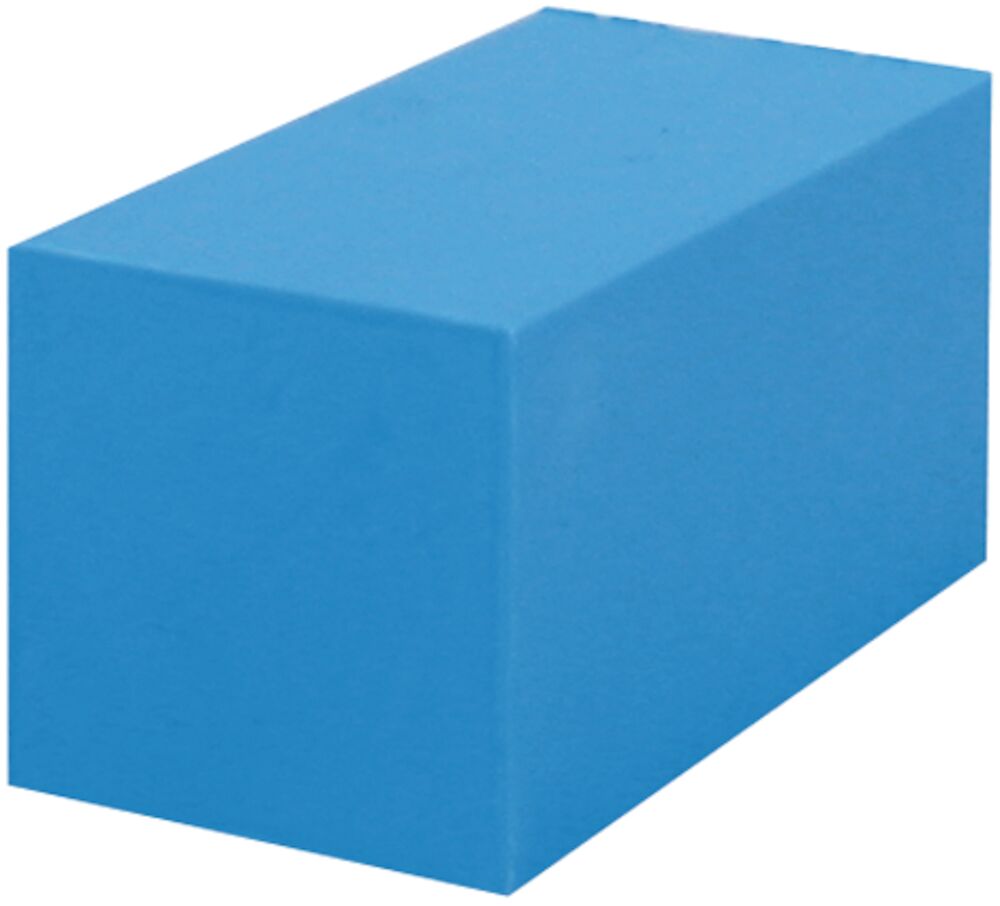

Roxtec RM solid compensation module representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec RM solid compensation module

Roxtec sealing components · Product details and source-listed options

Roxtec RM solid compensation modules are 60 mm (2.362") deep. The RC version is used for the Roxtec SRC frame which has rounded corners.

  • To be used with corresponding Roxtec components to form a complete sealing solution

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 9 article options

RM 5/0x24

Art. No. RM00305241000

External dimensions WxHxD (mm)
5 x 5 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.06
Quote this article number

RM 10/0x12

Art. No. RM00310121000

External dimensions WxHxD (mm)
10 x 10 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.1
Quote this article number

RM 15/0

Art. No. RM00300151000

External dimensions WxHxD (mm)
15 x 15 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.02
Quote this article number

RM 20/0

Art. No. RM00300201000

External dimensions WxHxD (mm)
20 x 20 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.04
Quote this article number

RM 30/0

Art. No. RM00300301000

External dimensions WxHxD (mm)
30 x 30 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.08
Quote this article number

RM 40/0

Art. No. RM00300401000

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.15
Quote this article number

RM 60/0

Art. No. RM00300601000

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.33
Quote this article number

RM 20/0 RC 4 PACK

Art. No. RMC0300201000

External dimensions WxHxD (mm)
20 x 20 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.13
Quote this article number

RM 40/0 RC 4 PACK

Art. No. RMC0300401000

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
0 - 0
Number of cables/pipes
0
Weight (kg)
0.3
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (3)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Listed 10 certificates
AuthorityRatingDivision / structureCablePipeType approvalStatus
BV A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Other Marine ABS Copper Copper-Nickel Fiberglass PB PE Plastic PP PVC PVDF Steel 73351/A1 BV No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Other Marine Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel LR2386976SF No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Other Marine Copper Fiberglass PB PE PE/ALU/PE Plastic PP PVC Steel LR2387043MB No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) GRP/FRP Marine — LR2543793UKMB No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) GRP/FRP — Copper Fiberglass PE/ALU/PE Plastic Steel Titanium LR2543794UKMB No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) GRP/FRP Marine — LR2543795UKMB No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) GRP/FRP — Copper Fiberglass PE/ALU/PE Plastic Steel Titanium LR2543796UKMB No renewal status stated
ClassNK A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Aluminium Steel — Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium TA251517E No renewal status stated
DNV A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Other Marine — TAF00001SH No renewal status stated
DNV A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Other — ABS Copper Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF Steel TAF00001SJ No renewal status stated

Product sources

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

  • Transit packing
  • Cable and pipe module selection
  • Transit completion and re-entry
