RM 5w120/0 ES B
Art. No. ERM1351201181
- External dimensions WxHxD (mm)
- 120 x 5 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.05
Roxtec sealing components

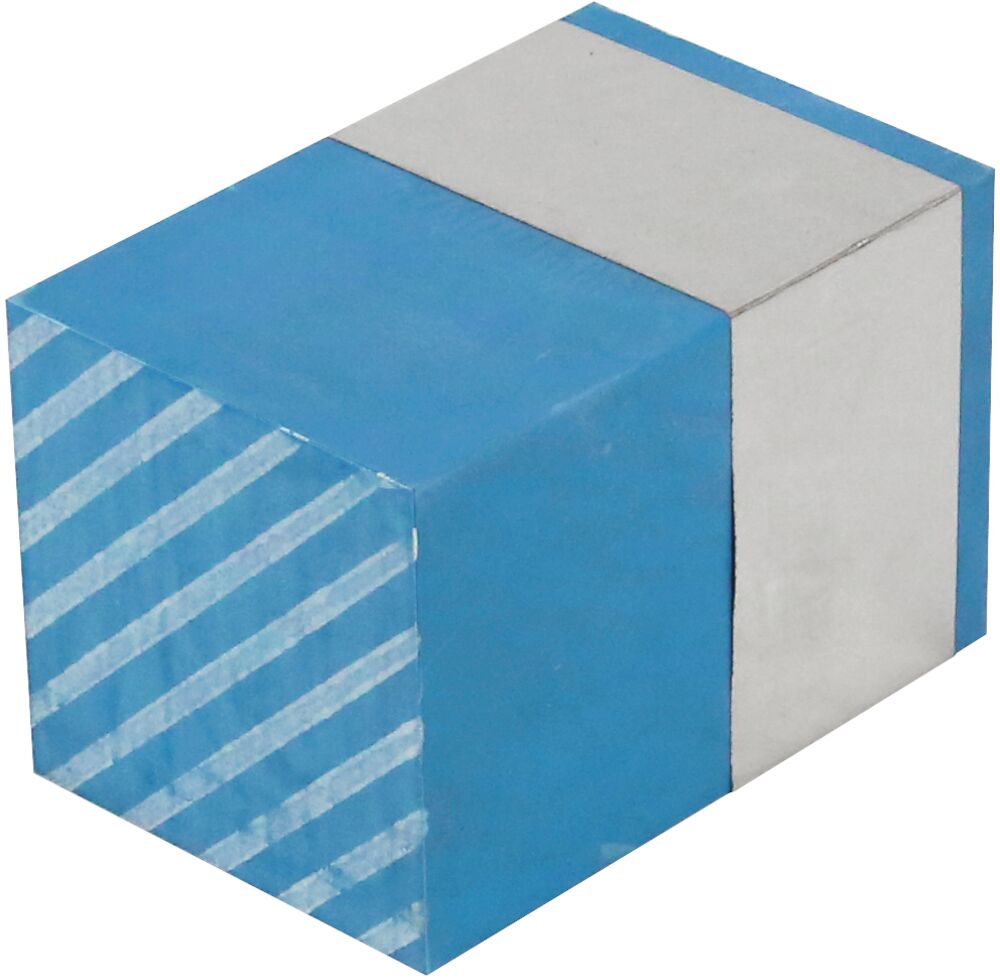

Roxtec RM ES solid compensation module
Roxtec sealing components · Roxtec
Roxtec RM modules are 60 mm (2.362") deep. The ES version of the solid module protects against high frequency radiated and conducted EMI/EMP in shielded environments.
- To be used with corresponding Roxtec components to form a complete sealing solution
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RM 10/0 ES B
Art. No. ERM1300101181
- External dimensions WxHxD (mm)
- 10 x 10 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.01
RM 10w120/0 ES B
Art. No. ERM1310121181
- External dimensions WxHxD (mm)
- 120 x 10 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.1
RM 15/0 ES B
Art. No. ERM1300151181
- External dimensions WxHxD (mm)
- 15 x 15 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.02
RM 30/0 ES B
Art. No. ERM1300301181
- External dimensions WxHxD (mm)
- 30 x 30 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.08
RM 20/0 ES B
Art. No. ERM1300201181
- External dimensions WxHxD (mm)
- 20 x 20 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.04
RM 40/0 ES B
Art. No. ERM1300401181
- External dimensions WxHxD (mm)
- 40 x 40 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.15
RM 40H80/0 ES B
Art. No. 173585
- External dimensions WxHxD (mm)
- 40 x 80 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.29
RM 60/0 ES B
Art. No. ERM1300601181
- External dimensions WxHxD (mm)
- 60 x 60 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.32
RM 5w120/0 ES
Art. No. ERM0305121181
- External dimensions WxHxD (mm)
- 120 x 5 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.05
RM 10/0 ES
Art. No. ERM0300101181
- External dimensions WxHxD (mm)
- 10 x 10 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.01
RM 10w120/0 ES
Art. No. ERM0310121181
- External dimensions WxHxD (mm)
- 120 x 10 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.1
RM 15/0 ES
Art. No. ERM0300151181
- External dimensions WxHxD (mm)
- 15 x 15 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.02
RM 20/0 ES
Art. No. ERM0300201181
- External dimensions WxHxD (mm)
- 20 x 20 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.04
RM 30/0 ES
Art. No. ERM0300301181
- External dimensions WxHxD (mm)
- 30 x 30 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.08
RM 40H80/0 ES
Art. No. 173583
- External dimensions WxHxD (mm)
- 40 x 80 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.3
RM 40/0 ES
Art. No. ERM0300401181
- External dimensions WxHxD (mm)
- 40 x 40 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.15
RM 60/0 ES
Art. No. ERM0300601181
- External dimensions WxHxD (mm)
- 60 x 60 x 60
- For cable/pipe Ø (mm)
- 0 - 0
- Number of cables/pipes
- 0
- Weight (kg)
- 0.34
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RM ES (en) pdf (manufacturer document)
- RM ES B (en) pdf (manufacturer document)
- S1000698 RM ES MODULES EMC SOLID MODULES PDF (manufacturer document)
- S1011265 RM ES B MODULES EMC SOLID MODULES PDF (manufacturer document)
Source checked 2026-08-08: official Roxtec product page.
About Roxtec sealing components
Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.
Typical applications:
- Transit packing
- Cable and pipe module selection
- Transit completion and re-entry
Not sure this is the right product? Compare the Roxtec sealing components family or describe your application.
