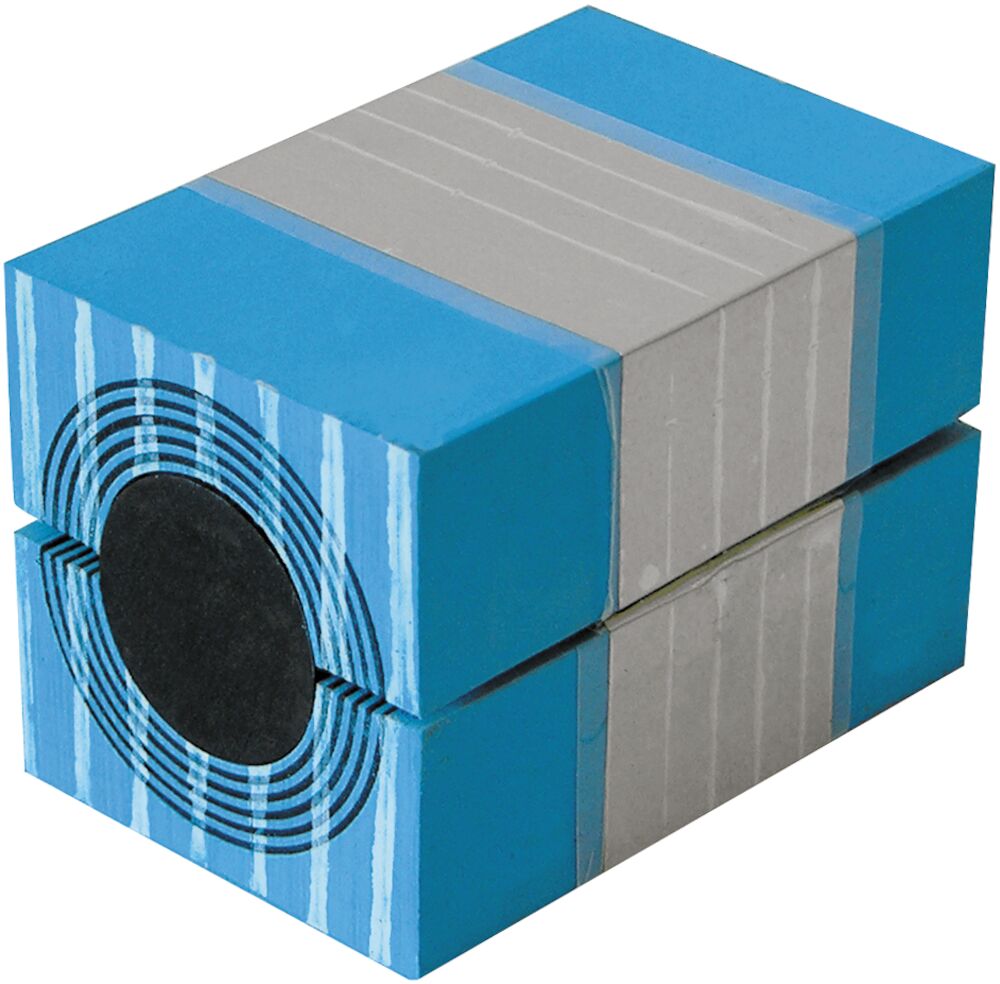

Roxtec RM ES module with Multidiameter™

Roxtec sealing components · Roxtec

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. The ES version protects against high frequency radiated and conducted EMI/EMP in shielded environments.

To be used with corresponding Roxtec components to form a complete sealing solution

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

RM 15 ES B

Art. No. ERM1100151181

External dimensions WxHxD (mm): 15 x 15 x 60
For cable/pipe Ø (mm): 3 - 11
Number of cables/pipes: 1
Weight (kg): 0.02

Quote this article number

RM 15w40 ES B

Art. No. ERM1115401181

External dimensions WxHxD (mm): 40 x 15 x 60
For cable/pipe Ø (mm): 3.5 - 10.5
Number of cables/pipes: 3
Weight (kg): 0.05

Quote this article number

RM 20 ES B

Art. No. ERM1100201181

External dimensions WxHxD (mm): 20 x 20 x 60
For cable/pipe Ø (mm): 4 - 14.5
Number of cables/pipes: 1
Weight (kg): 0.04

Quote this article number

RM 20w40 ES B

Art. No. ERM1120401181

External dimensions WxHxD (mm): 40 x 20 x 60
For cable/pipe Ø (mm): 3.5 - 16.5
Number of cables/pipes: 2
Weight (kg): 0.07

Quote this article number

RM 30 ES B

Art. No. ERM1100301181

External dimensions WxHxD (mm): 30 x 30 x 60
For cable/pipe Ø (mm): 10 - 25
Number of cables/pipes: 1
Weight (kg): 0.1

Quote this article number

RM 40 10-32 ES B

Art. No. ERM1140101181

External dimensions WxHxD (mm): 40 x 40 x 60
For cable/pipe Ø (mm): 9.5 - 32.5
Number of cables/pipes: 1
Weight (kg): 0.15

Quote this article number

RM 40 ES B

Art. No. ERM1100401181

External dimensions WxHxD (mm): 40 x 40 x 60
For cable/pipe Ø (mm): 21.5 - 34.5
Number of cables/pipes: 1
Weight (kg): 0.15

Quote this article number

RM 40H80 ES B

Art. No. 173584

External dimensions WxHxD (mm): 40 x 80 x 60
For cable/pipe Ø (mm): 21.5 - 34.5
Number of cables/pipes: 1
Weight (kg): 0.29

Quote this article number

RM 60 24-54 ES B

Art. No. ERM1160201181

External dimensions WxHxD (mm): 60 x 60 x 60
For cable/pipe Ø (mm): 24 - 54
Number of cables/pipes: 1
Weight (kg): 0.33

Quote this article number

RM 60 ES B

Art. No. ERM1100601181

External dimensions WxHxD (mm): 60 x 60 x 60
For cable/pipe Ø (mm): 28 - 54
Number of cables/pipes: 1
Weight (kg): 0.35

Quote this article number

RM 80 ES B

Art. No. 110098

External dimensions WxHxD (mm): 80 x 80 x 60
For cable/pipe Ø (mm): 48 - 71
Number of cables/pipes: 1
Weight (kg): 0.56

Quote this article number

RM 60 ES B WOC

Art. No. ERM1000601181

External dimensions WxHxD (mm): 60 x 60 x 60
For cable/pipe Ø (mm): 28 - 54
Number of cables/pipes: 1
Weight (kg): 0.26

Quote this article number

RM 80 ES B WOC

Art. No. 110100

External dimensions WxHxD (mm): 80 x 80 x 60
For cable/pipe Ø (mm): 48 - 71
Number of cables/pipes: 1
Weight (kg): 0.42

Quote this article number

RM 120 ES B WOC

Art. No. ERM1001201181

External dimensions WxHxD (mm): 120 x 120 x 60
For cable/pipe Ø (mm): 67.5 - 99
Number of cables/pipes: 1
Weight (kg): 0.94

Quote this article number

RM 15 ES

Art. No. ERM0100151181

External dimensions WxHxD (mm): 15 x 15 x 60
For cable/pipe Ø (mm): 3 - 11
Number of cables/pipes: 1
Weight (kg): 0.02

Quote this article number

RM 15w40 ES

Art. No. ERM0115401181

External dimensions WxHxD (mm): 40 x 15 x 60
For cable/pipe Ø (mm): 3.5 - 10.5
Number of cables/pipes: 3
Weight (kg): 0.05

Quote this article number

RM 20 ES

Art. No. ERM0100201181

External dimensions WxHxD (mm): 20 x 20 x 60
For cable/pipe Ø (mm): 4 - 14.5
Number of cables/pipes: 1
Weight (kg): 0.04

Quote this article number

RM 20w40 ES

Art. No. ERM0120401181

External dimensions WxHxD (mm): 40 x 20 x 60
For cable/pipe Ø (mm): 3.5 - 16.5
Number of cables/pipes: 2
Weight (kg): 0.07

Quote this article number

RM 30 ES

Art. No. ERM0100301181

External dimensions WxHxD (mm): 30 x 30 x 60
For cable/pipe Ø (mm): 10 - 25
Number of cables/pipes: 1
Weight (kg): 0.08

Quote this article number

RM 40 10-32 ES

Art. No. ERM0140101181

External dimensions WxHxD (mm): 40 x 40 x 60
For cable/pipe Ø (mm): 9.5 - 32.5
Number of cables/pipes: 1
Weight (kg): 0.15

Quote this article number

RM 40 ES

Art. No. ERM0100401181

External dimensions WxHxD (mm): 40 x 40 x 60
For cable/pipe Ø (mm): 21.5 - 34.5
Number of cables/pipes: 1
Weight (kg): 0.15

Quote this article number

RM 40H80 ES

Art. No. 173582

External dimensions WxHxD (mm): 40 x 80 x 60
For cable/pipe Ø (mm): 21.5 - 34.5
Number of cables/pipes: 1
Weight (kg): 0.28

Quote this article number

RM 60 24-54 ES

Art. No. ERM0160201181

External dimensions WxHxD (mm): 60 x 60 x 60
For cable/pipe Ø (mm): 24 - 54
Number of cables/pipes: 1
Weight (kg): 0.33

Quote this article number

RM 60 ES

Art. No. ERM0100601181

External dimensions WxHxD (mm): 60 x 60 x 60
For cable/pipe Ø (mm): 28 - 54
Number of cables/pipes: 1
Weight (kg): 0.35

Quote this article number

RM 80 ES

Art. No. 110095

External dimensions WxHxD (mm): 80 x 80 x 60
For cable/pipe Ø (mm): 48 - 71
Number of cables/pipes: 1
Weight (kg): 0.63

Quote this article number

RM 60 ES WOC

Art. No. ERM0000601181

External dimensions WxHxD (mm): 60 x 60 x 60
For cable/pipe Ø (mm): 28 - 54
Number of cables/pipes: 1
Weight (kg): 0.26

Quote this article number

RM 80 ES WOC

Art. No. 110097

External dimensions WxHxD (mm): 80 x 80 x 60
For cable/pipe Ø (mm): 48 - 71
Number of cables/pipes: 1
Weight (kg): 0.47

Quote this article number

RM 120 ES WOC

Art. No. ERM0001201181

External dimensions WxHxD (mm): 120 x 120 x 60
For cable/pipe Ø (mm): 67.5 - 99
Number of cables/pipes: 1
Weight (kg): 0.94

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

RM ES (en) pdf (manufacturer document)
RM ES B (en) pdf (manufacturer document)
RM ES B BTB (en) pdf (manufacturer document)
S1005749 RM ES B MODULES EMC ASSEMBLY PDF (manufacturer document)
S1005750 RM ES MODULES EMC ASSEMBLY PDF (manufacturer document)

Source checked 2026-08-08: official Roxtec product page.

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

Transit packing
Cable and pipe module selection
Transit completion and re-entry
