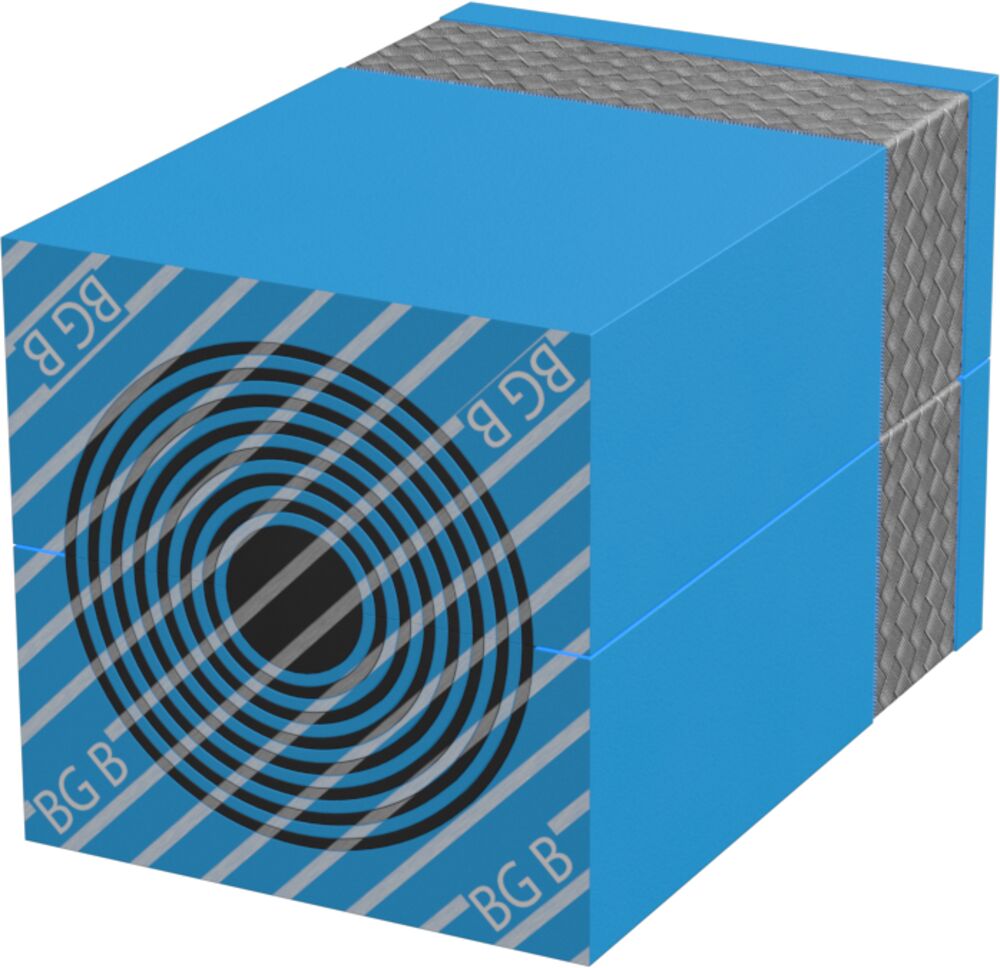

Roxtec RM BG™ module with Multidiameter™ representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec RM BG™ module with Multidiameter™

Roxtec sealing components · Product details and source-listed options

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. The BG version is used for bonding and grounding of armored and metal-clad cables.

  • To be used with corresponding Roxtec components to form a complete sealing solution

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Show all 24 article options

RM 20 BG B

Art. No. 103329

External dimensions WxHxD (mm)
20 x 20 x 60
For cable/pipe Ø (mm)
4 - 14.5
Number of cables/pipes
1
Weight (kg)
0.04
Quote this article number

RM 20w40 BG B

Art. No. 103331

External dimensions WxHxD (mm)
40 x 20 x 60
For cable/pipe Ø (mm)
3.5 - 16.5
Number of cables/pipes
2
Weight (kg)
0.07
Quote this article number

RM 30 BG B

Art. No. 103332

External dimensions WxHxD (mm)
30 x 30 x 60
For cable/pipe Ø (mm)
10 - 25
Number of cables/pipes
1
Weight (kg)
0.09
Quote this article number

RM 40 BG B

Art. No. 103334

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
21.5 - 34.5
Number of cables/pipes
1
Weight (kg)
0.15
Quote this article number

RM 40 10-32 BG B

Art. No. 103333

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
9.5 - 32.5
Number of cables/pipes
1
Weight (kg)
0.15
Quote this article number

RM 40H80 BG B

Art. No. 173592

External dimensions WxHxD (mm)
40 x 80 x 60
For cable/pipe Ø (mm)
21.5 - 34.5
Number of cables/pipes
1
Weight (kg)
0.3
Quote this article number

RM 60 BG B

Art. No. 103337

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
28 - 54
Number of cables/pipes
1
Weight (kg)
0.35
Quote this article number

RM 60 24-54 BG B

Art. No. 103336

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
24 - 54
Number of cables/pipes
1
Weight (kg)
0.34
Quote this article number

RM 80 BG B

Art. No. 118504

External dimensions WxHxD (mm)
80 x 80 x 60
For cable/pipe Ø (mm)
48 - 71
Number of cables/pipes
1
Weight (kg)
0.63
Quote this article number

RM 60 BG B WOC

Art. No. 109377

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
28 - 54
Number of cables/pipes
1
Weight (kg)
0.3
Quote this article number

RM 80 BG B WOC

Art. No. 118502

External dimensions WxHxD (mm)
80 x 80 x 60
For cable/pipe Ø (mm)
48 - 71
Number of cables/pipes
1
Weight (kg)
0.51
Quote this article number

RM 120 BG B WOC

Art. No. 103313

External dimensions WxHxD (mm)
120 x 120 x 60
For cable/pipe Ø (mm)
67.5 - 99
Number of cables/pipes
1
Weight (kg)
1.07
Quote this article number

RM 60 BG WOC

Art. No. 109375

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
28 - 54
Number of cables/pipes
1
Weight (kg)
0.29
Quote this article number

RM 80 BG WOC

Art. No. 118505

External dimensions WxHxD (mm)
80 x 80 x 60
For cable/pipe Ø (mm)
48 - 71
Number of cables/pipes
1
Weight (kg)
0.52
Quote this article number

RM 120 BG WOC

Art. No. 102412

External dimensions WxHxD (mm)
120 x 120 x 60
For cable/pipe Ø (mm)
67.5 - 99
Number of cables/pipes
1
Weight (kg)
1.07
Quote this article number

RM 20 BG

Art. No. 102415

External dimensions WxHxD (mm)
20 x 20 x 60
For cable/pipe Ø (mm)
4 - 14.5
Number of cables/pipes
1
Weight (kg)
0.04
Quote this article number

RM 20w40 BG

Art. No. 102416

External dimensions WxHxD (mm)
40 x 20 x 60
For cable/pipe Ø (mm)
3.5 - 16.5
Number of cables/pipes
2
Weight (kg)
0.07
Quote this article number

RM 30 BG

Art. No. 102417

External dimensions WxHxD (mm)
30 x 30 x 60
For cable/pipe Ø (mm)
10 - 25
Number of cables/pipes
1
Weight (kg)
0.09
Quote this article number

RM 40 10-32 BG

Art. No. 102419

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
9.5 - 32.5
Number of cables/pipes
1
Weight (kg)
0.15
Quote this article number

RM 40 BG

Art. No. 102420

External dimensions WxHxD (mm)
40 x 40 x 60
For cable/pipe Ø (mm)
21.5 - 34.5
Number of cables/pipes
1
Weight (kg)
0.15
Quote this article number

RM 40H80 BG

Art. No. 173590

External dimensions WxHxD (mm)
40 x 80 x 60
For cable/pipe Ø (mm)
21.5 - 34.5
Number of cables/pipes
1
Weight (kg)
0.3
Quote this article number

RM 60 BG

Art. No. 102423

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
28 - 54
Number of cables/pipes
1
Weight (kg)
0.34
Quote this article number

RM 60 24-54 BG

Art. No. 102422

External dimensions WxHxD (mm)
60 x 60 x 60
For cable/pipe Ø (mm)
24 - 54
Number of cables/pipes
1
Weight (kg)
0.33
Quote this article number

RM 80 BG

Art. No. 118506

External dimensions WxHxD (mm)
80 x 80 x 60
For cable/pipe Ø (mm)
48 - 71
Number of cables/pipes
1
Weight (kg)
0.64
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (5)

Product sources

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

  • Transit packing
  • Cable and pipe module selection
  • Transit completion and re-entry

Not sure this is the right product? Compare the Roxtec sealing components family or describe your application.
