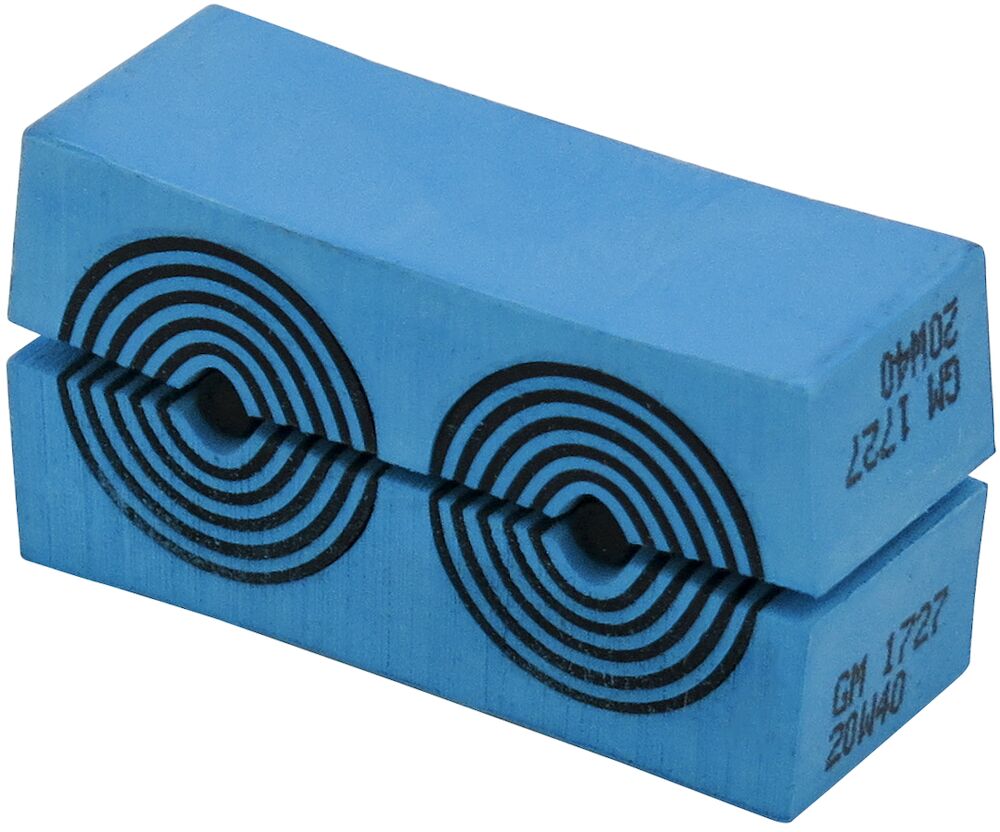

Roxtec GM module with Multidiameter™ representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec GM module with Multidiameter™

Roxtec sealing components · Product details and source-listed options

Roxtec GM sealing modules are 15 mm (0.590") deep and easy to adapt to cables and pipes of different sizes thanks to Multidiameter™, the Roxtec innovation based on removable layers. When used with a core, the module functions as spare module for future capacity.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • For cables and pipes 3.5-32.5 mm (0.141"-1.281") OD

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 3 article options

GM 13,3w40

Art. No. GM00113401000

External dimensions WxHxD (mm)
40 x 13 x 15
For cable/pipe Ø (mm)
3.5 - 10.5
Number of cables/pipes
3
Weight (kg)
0.01
Quote this article number

GM 20w40

Art. No. GM00120401000

External dimensions WxHxD (mm)
40 x 20 x 15
For cable/pipe Ø (mm)
3.5 - 16.5
Number of cables/pipes
2
Weight (kg)
0.02
Quote this article number

GM 40 10-32

Art. No. GM00140101000

External dimensions WxHxD (mm)
40 x 40 x 15
For cable/pipe Ø (mm)
9.5 - 32.5
Number of cables/pipes
1
Weight (kg)
0.04
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (1)

Product sources

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

  • Transit packing
  • Cable and pipe module selection
  • Transit completion and re-entry
