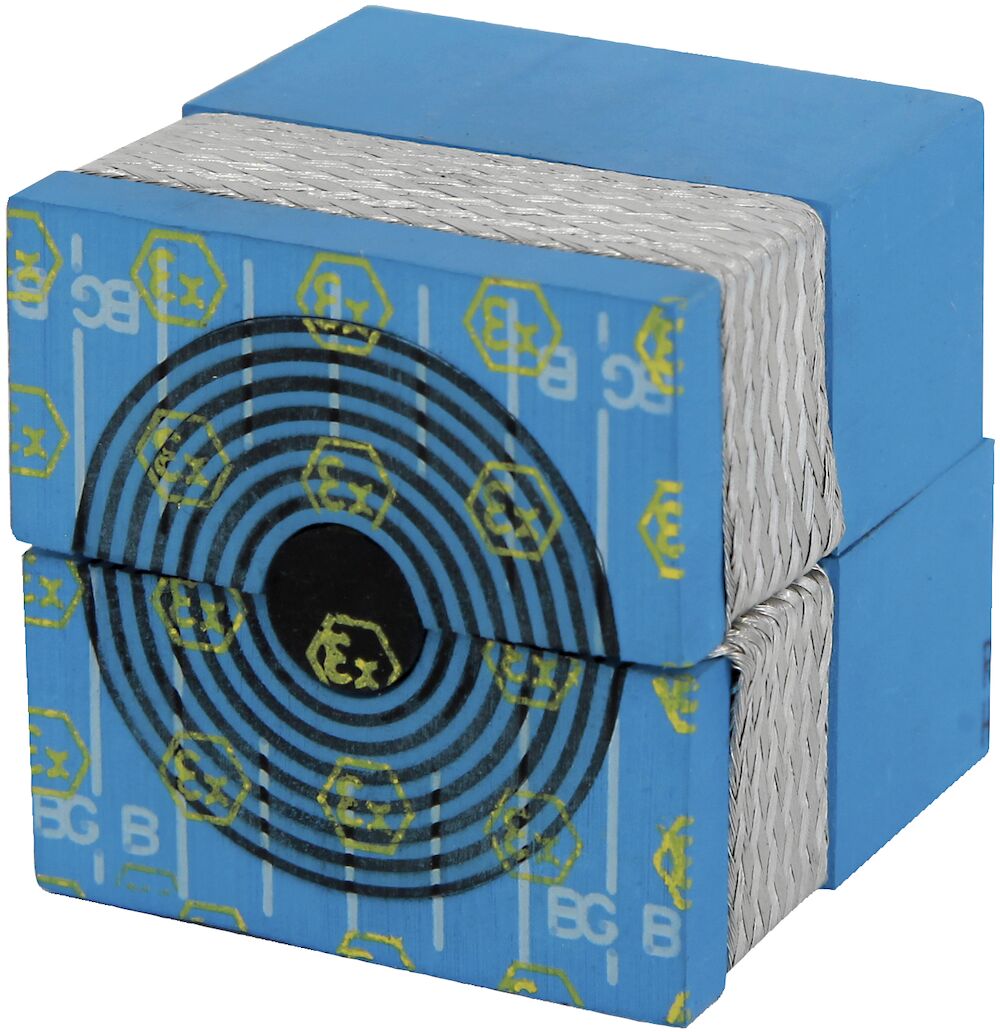

Roxtec CM BG™ Ex module with Multidiameter™ representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec CM BG™ Ex module with Multidiameter™

Roxtec sealing components · Product details and source-listed options

Roxtec CM modules are 40 mm (1.575") deep and easily adapted to cables and pipes of different sizes. When used with a solid core, the module functions as a spare module for future capacity. The BG Ex version is used for bonding and grounding of armored cables in potentially explosive atmospheres and hazardous locations.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 3 article options

CM 20w40 BG B Ex

Art. No. 102745

External dimensions WxHxD (mm)
40 x 20 x 40
For cable/pipe Ø (mm)
3.5 - 16.5
Number of cables/pipes
2
Weight (kg)
0.05
Quote this article number

CM 30w40 BG B Ex

Art. No. 102748

External dimensions WxHxD (mm)
40 x 30 x 40
For cable/pipe Ø (mm)
10 - 25
Number of cables/pipes
1
Weight (kg)
0.08
Quote this article number

CM 40 10-32 BG B Ex

Art. No. 102749

External dimensions WxHxD (mm)
40 x 40 x 40
For cable/pipe Ø (mm)
9.5 - 32.5
Number of cables/pipes
1
Weight (kg)
0.11
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (1)

Product sources

About Roxtec sealing components

Roxtec sealing components are the modules, compression parts, and related pieces used to complete a transit. The full assembly must be reviewed as a system.

Typical applications:

  • Transit packing
  • Cable and pipe module selection
  • Transit completion and re-entry

Not sure this is the right product? Compare the Roxtec sealing components family or describe your application.
