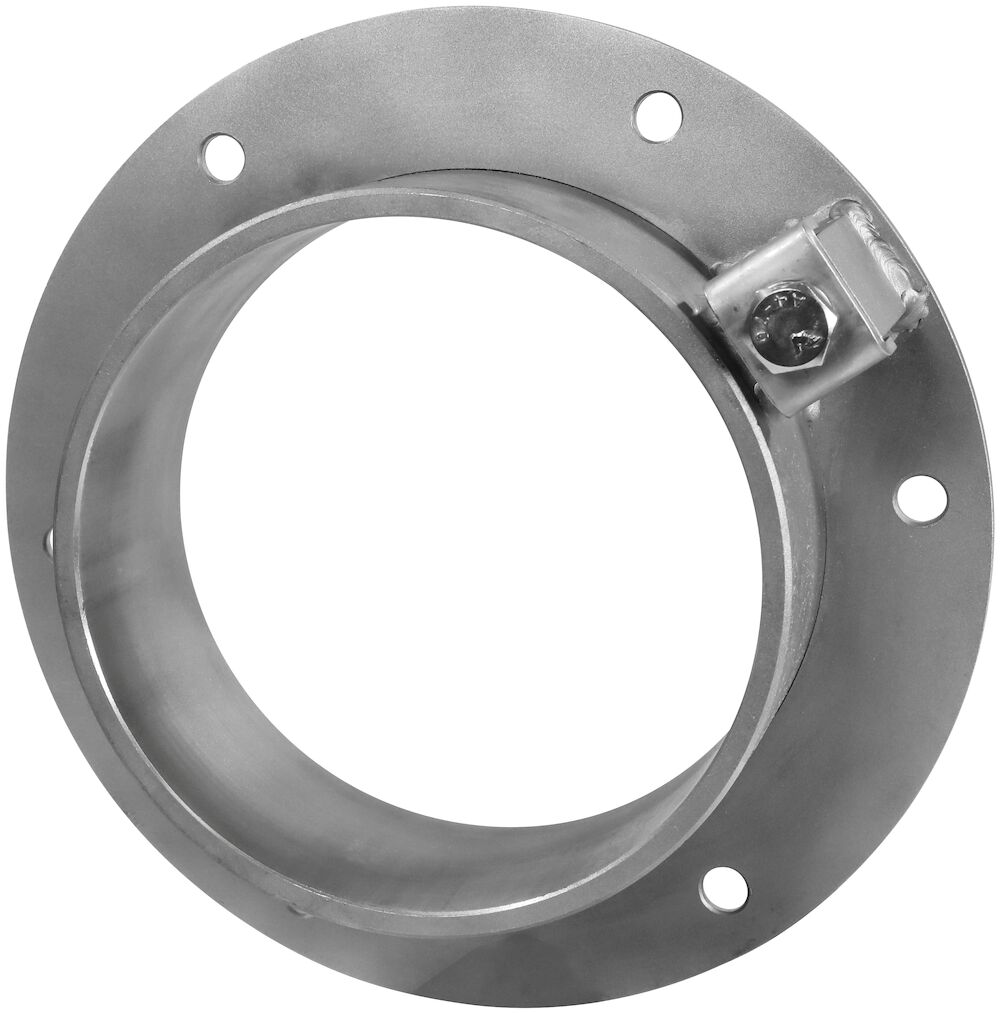

Roxtec SLF RS BG™ sleeve representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec SLF RS BG™ sleeve

Roxtec round frames/seals · Product details and source-listed options

The Roxtec SLF RS BG™ sleeve with flange for Roxtec round seals has an integrated terminal to simplify connection to the system protective earth bar. It has pre-drilled holes for easy bolting to even structures.

  • To be used with Roxtec RS BG™ seals
  • Attachment by bolting

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 9 article options

SLFRS 25 BG AISI316

Art. No. 200987

Aperture dimension Ø (mm)
38 - 44
External dimensions ØxZ (mm)
96 x 35
Internal Ø (mm)
25.5
Weight (kg)
0.4
Quote this article number

SLFRS 31 BG AISI316

Art. No. 200988

Aperture dimension Ø (mm)
44 - 50
External dimensions ØxZ (mm)
102 x 35
Internal Ø (mm)
31.5
Weight (kg)
0.4
Quote this article number

SLFRS 43 BG AISI316

Art. No. 200989

Aperture dimension Ø (mm)
56 - 62
External dimensions ØxZ (mm)
110 x 65
Internal Ø (mm)
44
Weight (kg)
0.7
Quote this article number

SLFRS 50 BG AISI316

Art. No. 200990

Aperture dimension Ø (mm)
67 - 73
External dimensions ØxZ (mm)
140 x 65
Internal Ø (mm)
51
Weight (kg)
1.14
Quote this article number

SLFRS 68 BG AISI316

Art. No. 200991

Aperture dimension Ø (mm)
87 - 93
External dimensions ØxZ (mm)
155 x 65
Internal Ø (mm)
69.5
Weight (kg)
1.66
Quote this article number

SLFRS 75 BG AISI316

Art. No. 200992

Aperture dimension Ø (mm)
93 - 99
External dimensions ØxZ (mm)
165 x 65
Internal Ø (mm)
76.5
Weight (kg)
1.66
Quote this article number

SLFRS 100 BG AISI316

Art. No. 200993

Aperture dimension Ø (mm)
118 - 128
External dimensions ØxZ (mm)
195 x 65
Internal Ø (mm)
101
Weight (kg)
2
Quote this article number

SLFRS 125 BG AISI316

Art. No. 200994

Aperture dimension Ø (mm)
144 - 154
External dimensions ØxZ (mm)
213 x 65
Internal Ø (mm)
126
Weight (kg)
2.46
Quote this article number

SLFRS 150 BG AISI316

Art. No. 202031

Aperture dimension Ø (mm)
168 - 178
External dimensions ØxZ (mm)
236 x 65
Internal Ø (mm)
151
Weight (kg)
2.9
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (2)

Product sources

About Roxtec round frames/seals

Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.

Typical applications:

  • Round openings
  • Sleeves and core-drilled holes
  • Cable and pipe entries
