SLEEV-IT FC-MAR16M
Art. No. 106239
- Aperture dimension Ø (mm)
- 18 - 26
- For cable/pipe Ø (mm)
- 16 - 16
- Weight (kg)
- 0.11
Roxtec round frames/seals

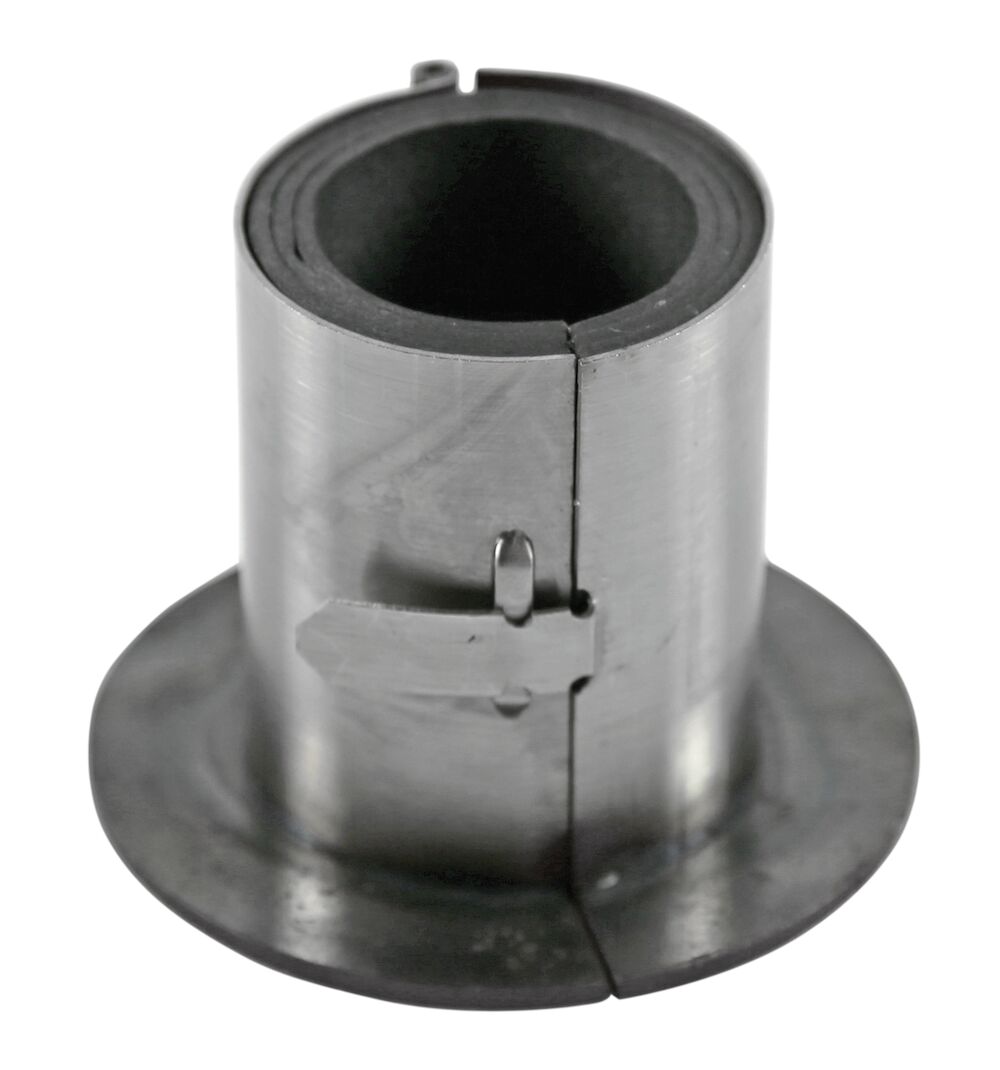

Roxtec Sleev-it™ Fire penetration seal
Roxtec round frames/seals · Roxtec
The Roxtec Sleev-it™ Fire penetration seal is a light-weight solution for single plastic pipes in fire rated divisions. The transit is tack-welded directly to the structure and requires no sleeve. The stainless steel casing contains layers of intumescent-based material that react with the heat of a fire to protect the penetration once the plastic pipe begins to soften. The penetration seal is openable and can be installed after the pipe system which makes it ideal for retrofit projects. Available with primed mild steel or aluminum flange.
- For various types of plastic pipes
- Openable
- Single side installation
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
SLEEV-IT FC-MAR20M
Art. No. 106245
- Aperture dimension Ø (mm)
- 22 - 30
- For cable/pipe Ø (mm)
- 20 - 20
- Weight (kg)
- 0.13
SLEEV-IT FC-MAR25M
Art. No. 106247
- Aperture dimension Ø (mm)
- 27 - 35
- For cable/pipe Ø (mm)
- 25 - 25
- Weight (kg)
- 0.14
SLEEV-IT FC-MAR32M
Art. No. 106249
- Aperture dimension Ø (mm)
- 34 - 42
- For cable/pipe Ø (mm)
- 32 - 32
- Weight (kg)
- 0.17
SLEEV-IT FC-MAR40M
Art. No. 106251
- Aperture dimension Ø (mm)
- 42 - 50
- For cable/pipe Ø (mm)
- 40 - 40
- Weight (kg)
- 0.21
SLEEV-IT FC-MAR50M (1.5")
Art. No. 106253
- Aperture dimension Ø (mm)
- 50 - 58
- For cable/pipe Ø (mm)
- 48.3 - 48.3
- Weight (kg)
- 0.36
SLEEV-IT FC-MAR60M (2")
Art. No. 106255
- Aperture dimension Ø (mm)
- 62 - 70
- For cable/pipe Ø (mm)
- 60.3 - 60.3
- Weight (kg)
- 0.4
SLEEV-IT FC-MAR63M
Art. No. 106257
- Aperture dimension Ø (mm)
- 65 - 73
- For cable/pipe Ø (mm)
- 63 - 63
- Weight (kg)
- 0.41
SLEEV-IT FC-MAR66M
Art. No. 117916
- Aperture dimension Ø (mm)
- 68 - 76
- For cable/pipe Ø (mm)
- 66 - 66
- Weight (kg)
- 0.53
SLEEV-IT FC-MAR75M
Art. No. 106259
- Aperture dimension Ø (mm)
- 77 - 85
- For cable/pipe Ø (mm)
- 75 - 75
- Weight (kg)
- 0.55
SLEEV-IT FC-MAR82M
Art. No. 117919
- Aperture dimension Ø (mm)
- 84 - 92
- For cable/pipe Ø (mm)
- 82 - 82
- Weight (kg)
- 0.57
SLEEV-IT FC-MAR90M (3")
Art. No. 106261
- Aperture dimension Ø (mm)
- 91 - 99
- For cable/pipe Ø (mm)
- 88.9 - 88.9
- Weight (kg)
- 0.67
SLEEV-IT FC-MAR110M
Art. No. 106263
- Aperture dimension Ø (mm)
- 112 - 120
- For cable/pipe Ø (mm)
- 110 - 110
- Weight (kg)
- 0.83
SLEEV-IT FC-MAR115M (4")
Art. No. 106265
- Aperture dimension Ø (mm)
- 116 - 124
- For cable/pipe Ø (mm)
- 114.3 - 114.3
- Weight (kg)
- 0.83
SLEEV-IT FC-MAR125M
Art. No. 106267
- Aperture dimension Ø (mm)
- 127 - 135
- For cable/pipe Ø (mm)
- 125 - 125
- Weight (kg)
- 0.91
SLEEV-IT FC-MAR140M
Art. No. 106269
- Aperture dimension Ø (mm)
- 142 - 150
- For cable/pipe Ø (mm)
- 140 - 140
- Weight (kg)
- 1.05
SLEEV-IT FC-MAR160M
Art. No. 106271
- Aperture dimension Ø (mm)
- 162 - 170
- For cable/pipe Ø (mm)
- 160 - 160
- Weight (kg)
- 1.3
SLEEV-IT FC-MAR169M (6")
Art. No. 106273
- Aperture dimension Ø (mm)
- 170 - 178
- For cable/pipe Ø (mm)
- 168.3 - 168.3
- Weight (kg)
- 1.37
SLEEV-IT FC-MAR200M
Art. No. 106275
- Aperture dimension Ø (mm)
- 202 - 210
- For cable/pipe Ø (mm)
- 200 - 200
- Weight (kg)
- 1.86
SLEEV-IT FC-MAR219M (8")
Art. No. 106278
- Aperture dimension Ø (mm)
- 221 - 229
- For cable/pipe Ø (mm)
- 219.1 - 219.1
- Weight (kg)
- 1.95
SLEEV-IT FC-MAR225M
Art. No. 106280
- Aperture dimension Ø (mm)
- 227 - 235
- For cable/pipe Ø (mm)
- 225 - 225
- Weight (kg)
- 2.07
SLEEV-IT FC MAR16M ALU
Art. No. 151280
- Aperture dimension Ø (mm)
- 20 - 26
- For cable/pipe Ø (mm)
- 16 - 16
- Weight (kg)
- 0.2
SLEEV-IT FC MAR20M ALU
Art. No. 151281
- Aperture dimension Ø (mm)
- 24 - 30
- For cable/pipe Ø (mm)
- 20 - 20
- Weight (kg)
- 0.16
SLEEV-IT FC MAR25M ALU
Art. No. 151282
- Aperture dimension Ø (mm)
- 29 - 35
- For cable/pipe Ø (mm)
- 25 - 25
- Weight (kg)
- 0.17
SLEEV-IT FC MAR32M ALU
Art. No. 151283
- Aperture dimension Ø (mm)
- 36 - 42
- For cable/pipe Ø (mm)
- 32 - 32
- Weight (kg)
- 0.2
SLEEV-IT FC MAR40M ALU
Art. No. 151284
- Aperture dimension Ø (mm)
- 44 - 50
- For cable/pipe Ø (mm)
- 40 - 40
- Weight (kg)
- 0.22
SLEEV-IT FC MAR50M ALU (1.5")
Art. No. 151285
- Aperture dimension Ø (mm)
- 52 - 58
- For cable/pipe Ø (mm)
- 48.3 - 48.3
- Weight (kg)
- 0.3
SLEEV-IT FC MAR60M ALU (2")
Art. No. 151286
- Aperture dimension Ø (mm)
- 64 - 70
- For cable/pipe Ø (mm)
- 60.3 - 60.3
- Weight (kg)
- 0.3
SLEEV-IT FC MAR63M ALU
Art. No. 151287
- Aperture dimension Ø (mm)
- 67 - 73
- For cable/pipe Ø (mm)
- 63 - 63
- Weight (kg)
- 0.4
SLEEV-IT FC MAR66M ALU
Art. No. 153747
- Aperture dimension Ø (mm)
- 68 - 76
- For cable/pipe Ø (mm)
- 66 - 66
- Weight (kg)
- 0.4
SLEEV-IT FC MAR75M ALU
Art. No. 151288
- Aperture dimension Ø (mm)
- 79 - 85
- For cable/pipe Ø (mm)
- 75 - 75
- Weight (kg)
- 0.4
SLEEV-IT FC MAR82M ALU
Art. No. 153748
- Aperture dimension Ø (mm)
- 86 - 92
- For cable/pipe Ø (mm)
- 82 - 82
- Weight (kg)
- 0.5
SLEEV-IT FC MAR90M ALU (3")
Art. No. 151289
- Aperture dimension Ø (mm)
- 93 - 99
- For cable/pipe Ø (mm)
- 88.9 - 88.9
- Weight (kg)
- 0.5
SLEEV-IT FC MAR110M ALU
Art. No. 151290
- Aperture dimension Ø (mm)
- 112 - 120
- For cable/pipe Ø (mm)
- 110 - 110
- Weight (kg)
- 0.7
SLEEV-IT FC MAR115M ALU (4")
Art. No. 151291
- Aperture dimension Ø (mm)
- 118 - 124
- For cable/pipe Ø (mm)
- 114.3 - 114.3
- Weight (kg)
- 0.7
SLEEV-IT FC MAR125M ALU
Art. No. 151292
- Aperture dimension Ø (mm)
- 129 - 135
- For cable/pipe Ø (mm)
- 125 - 125
- Weight (kg)
- 0.8
SLEEV-IT FC MAR140M ALU
Art. No. 151293
- Aperture dimension Ø (mm)
- 144 - 150
- For cable/pipe Ø (mm)
- 140 - 140
- Weight (kg)
- 1
SLEEV-IT FC MAR160M ALU
Art. No. 151294
- Aperture dimension Ø (mm)
- 164 - 170
- For cable/pipe Ø (mm)
- 160 - 160
- Weight (kg)
- 1
SLEEV-IT FC MAR169M ALU (6")
Art. No. 151295
- Aperture dimension Ø (mm)
- 172 - 178
- For cable/pipe Ø (mm)
- 168.3 - 168.3
- Weight (kg)
- 1.1
SLEEV-IT FC MAR200M ALU
Art. No. 151296
- Aperture dimension Ø (mm)
- 204 - 210
- For cable/pipe Ø (mm)
- 200 - 200
- Weight (kg)
- 1.5
SLEEV-IT FC MAR219M ALU (8")
Art. No. 151297
- Aperture dimension Ø (mm)
- 223 - 229
- For cable/pipe Ø (mm)
- 219.1 - 219.1
- Weight (kg)
- 1.6
SLEEV-IT FC MAR225M ALU
Art. No. 151298
- Aperture dimension Ø (mm)
- 229 - 235
- For cable/pipe Ø (mm)
- 225 - 225
- Weight (kg)
- 1.7
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- SLEEV-IT FC (en) pdf (manufacturer document)
- SLEEV-IT ALU FC (en) pdf (manufacturer document)
- S1026329 ROXTEC SLEEV-IT FIRE PENETRATION SEAL PDF (manufacturer document)
- S1507771 SLEEV IT FC ALU FC 16-225 ALU PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Plastic | 23-2372499-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS PB PE PE/ALU/PE Plastic PP PVC | 25-0167862-PDA | No renewal status stated |
| ABS | A class fire | Steel | — | Plastic | 25-0284065-PDA | No renewal status stated |
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | 46204/A1 BV | No renewal status stated |
| BV | A class fire Water tightness (catastrophic) | Aluminium | — | ABS PB PE Plastic PP uPVC / PVC | 53012/B0 | No renewal status stated |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS Other PB PE PE/ALU/PE PP PVC | GB21PTB00023 | Source states: under renewal |
| RINA | A class fire | Steel | — | ABS Other PB PE PE/ALU/PE Plastic PP PVC PVDF | LAB142926CS/001-002 | No renewal status stated |
| RINA | B class fire | Sandwich | — | Plastic | LAB354825CS | No renewal status stated |
| RINA | A class fire | Aluminium | — | Plastic | LAB498522CS/001 | No renewal status stated |
| RINA | A class fire | Aluminium | — | Plastic | LAB498522CS/002 | No renewal status stated |
| LR | A class fire B class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | LR2493429MB | No renewal status stated |
| LR | A class fire B class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | LR2493430UKMB | No renewal status stated |
| LR | A class fire B class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | LR2493474SF | No renewal status stated |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | — | ABS Other PB PE PE/ALU/PE Plastic PP PVC PVDF | TA26337E(R) | No renewal status stated |
| DNV | B class fire | Sandwich | — | Plastic | TAF0000067 Revision 1 | Source states: under renewal |
| DNV | A class fire Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | TAF00000HK | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
