RS PPS 31 AISI 316
Art. No. PPS0000031021
- Aperture dimension Ø (mm)
- 31 - 32
- For cable/pipe Ø (mm)
- 4 - 17
- Weight (kg)
- 0.2
Roxtec round frames/seals

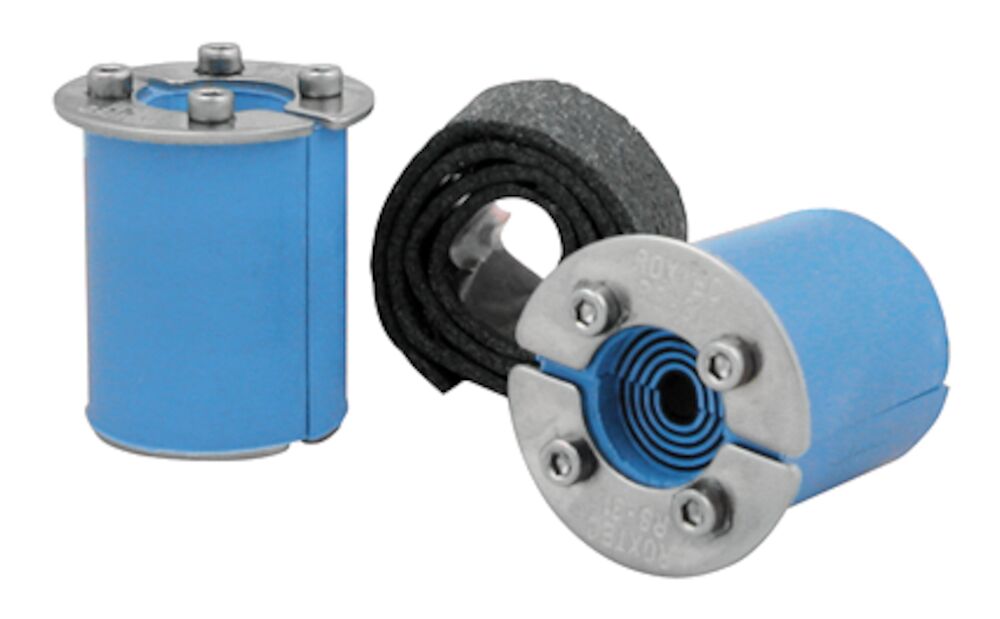

Roxtec RS PPS seal
Roxtec round frames/seals · Roxtec
The Roxtec RS PPS is a back-to-back solution for openings with plastic pipes in decks and bulkheads. The kit consists of two seals and one intumescent sealing strip. It is used with a SL PPS sleeve.
- For plastic pipes up to 386 mm
- Intended for use with SL PPS sleeve
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS PPS 43 AISI 316
Art. No. PPS0000043021
- Aperture dimension Ø (mm)
- 43 - 45
- For cable/pipe Ø (mm)
- 4 - 23
- Weight (kg)
- 0.4
RS PPS 50 AISI 316
Art. No. PPS0000050021
- Aperture dimension Ø (mm)
- 50 - 52
- For cable/pipe Ø (mm)
- 8 - 30
- Weight (kg)
- 0.5
RS PPS 68 AISI 316
Art. No. PPS0000068021
- Aperture dimension Ø (mm)
- 68 - 70
- For cable/pipe Ø (mm)
- 26 - 48
- Weight (kg)
- 0.8
RS PPS 75 AISI316
Art. No. PPS0000075021
- Aperture dimension Ø (mm)
- 75 - 77
- For cable/pipe Ø (mm)
- 24 - 54
- Weight (kg)
- 0.9
RS PPS 100 AISI 316 WOC
Art. No. PPS0000100021
- Aperture dimension Ø (mm)
- 100 - 102
- For cable/pipe Ø (mm)
- 48 - 70
- Weight (kg)
- 1.3
RS PPS 125 AISI 316 WOC
Art. No. PPS0000125021
- Aperture dimension Ø (mm)
- 125 - 127
- For cable/pipe Ø (mm)
- 66 - 98
- Weight (kg)
- 1.9
RS PPS 150 AISI 316 WOC
Art. No. PPS0000150021
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 93 - 119
- Weight (kg)
- 2.6
RS PPS 175 AISI316 WOC
Art. No. PPS0000175021
- Aperture dimension Ø (mm)
- 175 - 177
- For cable/pipe Ø (mm)
- 119 - 145
- Weight (kg)
- 3.67
RS PPS 200 AISI316 WOC
Art. No. PPS0000200021
- Aperture dimension Ø (mm)
- 200 - 203
- For cable/pipe Ø (mm)
- 138 - 170
- Weight (kg)
- 4.35
RS PPS 225 AISI316 WOC
Art. No. PPS0000225021
- Aperture dimension Ø (mm)
- 225 - 228
- For cable/pipe Ø (mm)
- 151 - 181
- Weight (kg)
- 4.35
RS PPS 250 AISI316 WOC
Art. No. PPS0000250021
- Aperture dimension Ø (mm)
- 250 - 253
- For cable/pipe Ø (mm)
- 176 - 206
- Weight (kg)
- 17
RS PPS 300 AISI316 WOC
Art. No. PPS0000300021
- Aperture dimension Ø (mm)
- 300 - 303
- For cable/pipe Ø (mm)
- 206 - 236
- Weight (kg)
- 8.7
RS PPS 350 AISI316 WOC
Art. No. PPS0000350021
- Aperture dimension Ø (mm)
- 350 - 353
- For cable/pipe Ø (mm)
- 244 - 286
- Weight (kg)
- 11.41
RS PPS 400 AISI316 WOC
Art. No. PPS0000400021
- Aperture dimension Ø (mm)
- 400 - 403
- For cable/pipe Ø (mm)
- 294 - 336
- Weight (kg)
- 18.68
RS PPS 450 AISI316 WOC
Art. No. 189422
- Aperture dimension Ø (mm)
- 450 - 453
- For cable/pipe Ø (mm)
- 344 - 386
- Weight (kg)
- 24
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RS PPS (en) pdf (manufacturer document)
- S1007685 RS PPS SEAL RS PPS 31 - RS PPS 200 PDF (manufacturer document)
- S1012814 RS PPS SEALS RS PPS 225-450 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded Unshielded | ABS Bundle Copper Copper-Nickel Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC Steel | 12509/E0 | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Other PE PE/ALU/PE PVC | 23-2456071-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | 25-0151112-PDA | No renewal status stated |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | ABS Other PB PE PE/ALU/PE Plastic PP PVC PVDF | GB23PTB00036_03 | No renewal status stated |
| RINA | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Other PE/ALU/PE Plastic | LAB280324CS/001/002 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Stainless steel Steel | — | ABS Bundle HDPE Other PB PE PE/ALU/PE Plastic PP PVC PVDF | LR21431832SF-03 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | ABS HDPE PB PE PE/ALU/PE Plastic PP PVC PVDF | MEDB00000NX | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE Other PB PE PE/ALU/PE Plastic PP PVDF | MEDB000036A | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | ABS HDPE PB PE PE/ALU/PE Plastic PP PVC PVDF | MERB00000NX | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | ABS HDPE PB PE PE/ALU/PE Plastic PP PVC PVDF | MERB000036A | Source states: under renewal |
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA251517E | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
