RS 25 PE AISI316
Art. No. PRS0100251121
- Aperture dimension Ø (mm)
- 25 - 26
- For cable/pipe Ø (mm)
- 3.6 - 12
- Weight (kg)
- 0.04
Roxtec round frames/seals

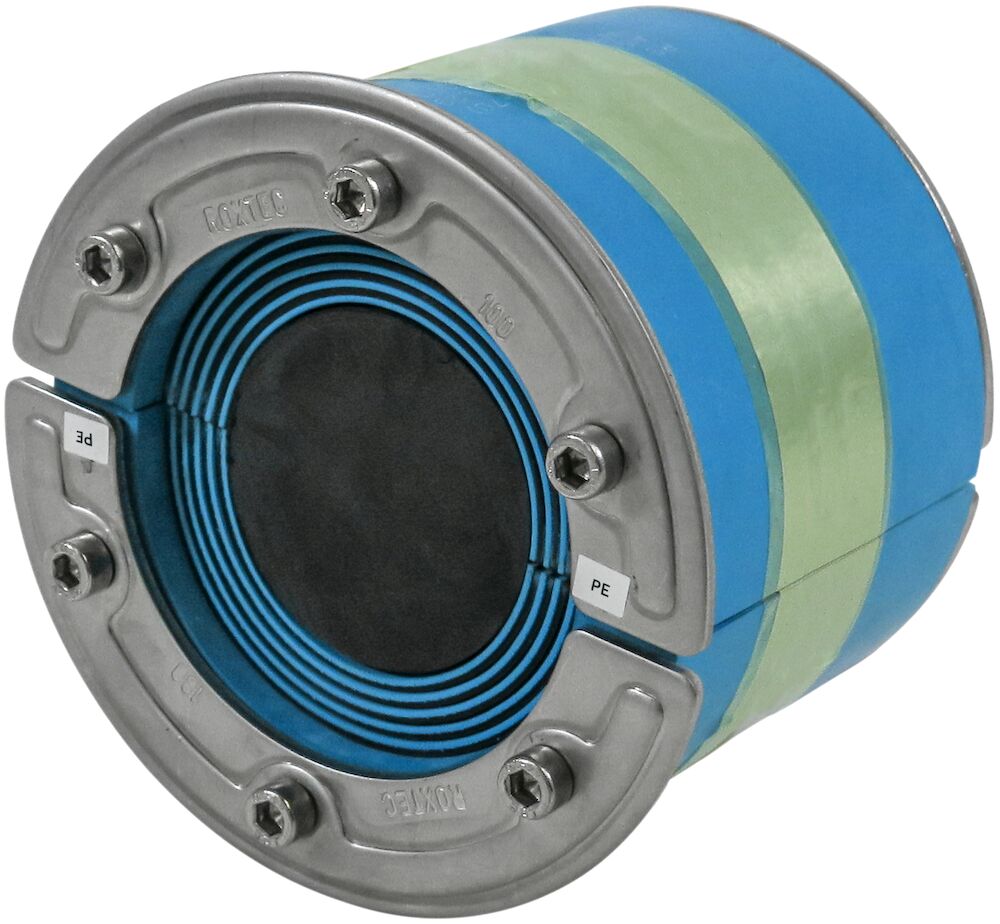

Roxtec RS PE seal
Roxtec round frames/seals · Roxtec
The Roxtec RS PE is a round entry seal consisting of two halves with an adaptable center with removable layers. Compression is integrated in the seal. The product protects against conducted EMI. Allows installation around an existing cable or pipe.
- For one cable/pipe
- Sleeve accessory available
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS 31 PE AISI316
Art. No. PRS0100311121
- Aperture dimension Ø (mm)
- 31 - 32
- For cable/pipe Ø (mm)
- 4 - 17
- Weight (kg)
- 0.06
RS 43 PE AISI316
Art. No. PRS0100431121
- Aperture dimension Ø (mm)
- 43 - 45
- For cable/pipe Ø (mm)
- 4 - 23
- Weight (kg)
- 0.24
RS 50 PE AISI316
Art. No. PRS0100501121
- Aperture dimension Ø (mm)
- 50 - 52
- For cable/pipe Ø (mm)
- 8 - 30
- Weight (kg)
- 0.32
RS 68 PE AISI316
Art. No. PRS0100681121
- Aperture dimension Ø (mm)
- 68 - 70
- For cable/pipe Ø (mm)
- 26 - 48
- Weight (kg)
- 0.5
RS 75 PE AISI316
Art. No. PRS0100751121
- Aperture dimension Ø (mm)
- 75 - 77
- For cable/pipe Ø (mm)
- 24 - 54
- Weight (kg)
- 0.58
RS 100 PE AISI316
Art. No. PRS0101001121
- Aperture dimension Ø (mm)
- 100 - 102
- For cable/pipe Ø (mm)
- 48 - 70
- Weight (kg)
- 1.01
RS 125 PE AISI316
Art. No. PRS0101251121
- Aperture dimension Ø (mm)
- 125 - 127
- For cable/pipe Ø (mm)
- 66 - 98
- Weight (kg)
- 1.57
RS 100 PE AISI316 WOC
Art. No. PRS0001001121
- Aperture dimension Ø (mm)
- 100 - 102
- For cable/pipe Ø (mm)
- 48 - 70
- Weight (kg)
- 0.85
RS 125 PE AISI316 WOC
Art. No. PRS0001251121
- Aperture dimension Ø (mm)
- 125 - 127
- For cable/pipe Ø (mm)
- 66 - 98
- Weight (kg)
- 1.23
RS 150 PE AISI316 WOC
Art. No. PRS0001501121
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 93 - 119
- Weight (kg)
- 1.58
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RS ES (en) pdf (manufacturer document)
- S1005805 RS PE SEALS RS 75-150 PE PDF (manufacturer document)
- S1005806 RS PE SEALS RS 25-31 PE PDF (manufacturer document)
- S1005807 RS PE SEALS RS 43-68 PE PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| BV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded Unshielded | ABS Bundle Copper Copper-Nickel Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC Steel | 12509/E0 | No renewal status stated |
| BV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | — | 15027/E0 BV | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Fiberglass Steel Titanium | 24-0026230-PDA | No renewal status stated |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Fiberglass Steel Titanium | 24-0026230-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | — | Bundle Copper Copper-Nickel Fiberglass Steel | 25-0118234-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Fiberglass Steel | 25-0118234-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | 25-0234779-PDA | Source states: under renewal |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | 25-0234779-PDA-DUP | Source states: under renewal |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Bundle Copper Copper-Nickel Fiberglass Other Steel | 25-0278844-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Bundle Copper Copper-Nickel Fiberglass Other Steel | 25-0278844-PDA-DUP | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | — | 25-0389615-PDA | No renewal status stated |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | — | 25-0389615-PDA-DUP | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction Telecom | Conduit Steel | C-AJ-8309 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 639 | No renewal status stated |
| Factory Mutual Approval | F fire T fire | Gypsum | Other | — | FM Fire Stop Design 644 | No renewal status stated |
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | Bundle Copper Copper-Nickel Fiberglass Steel | LR21217042SF-04 | Source states: under renewal |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Steel Titanium | MEDB0000128 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MEDB00002SD | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Bundle Copper Copper-Nickel Fiberglass Steel | MEDB00006GS | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | — | Bundle Copper Copper-Nickel Fiberglass Other Steel Titanium | MERB0000128 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | — | MERB00002SD | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | — | Bundle Copper Copper-Nickel Fiberglass Steel Titanium | MERB00006GS | Source states: under renewal |
| DNV | Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | All | Aluminium Copper Copper-Nickel Plastic Steel | TAE000000W | No renewal status stated |
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | — | TAF00000D8 | No renewal status stated |
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | — | Fiberglass Other Steel | TAF00001NG | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | — | Conduit Steel | W-J-1300 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3251 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3256 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3368 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | — | — | — | XHJI7.R15556 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
