RS 25 BG AISI316
Art. No. 164758
- Aperture dimension Ø (mm)
- 25 - 26
- For cable/pipe Ø (mm)
- 3.6 - 12
- Weight (kg)
- 0.09
Roxtec round frames/seals

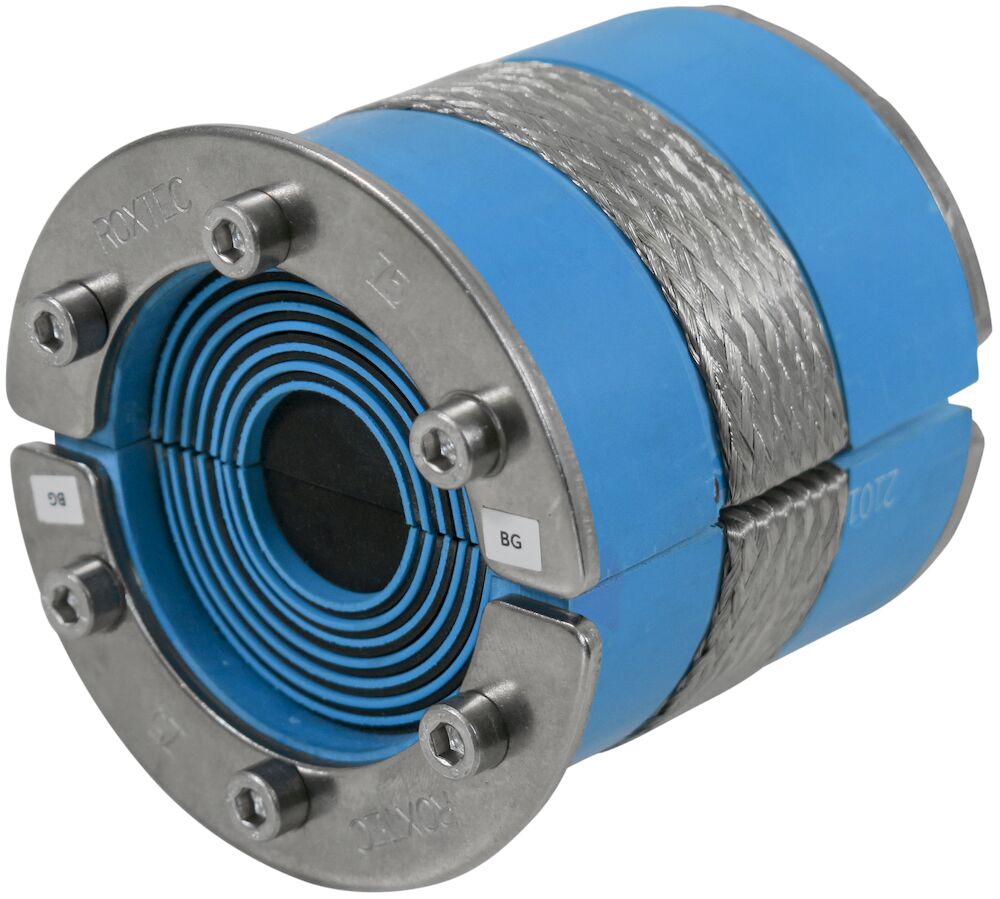

Roxtec RS BG™ seal
Roxtec round frames/seals · Roxtec
The Roxtec RS BG™ is a round entry seal consisting of two adaptable halves with removable layers. It is ideal for sealing, bonding and grounding of single armored or metal-clad cables or metallic pipes. Compression is integrated in the seal, allowing installation around an existing cable or pipe.
- Attachment by expansion
- For one cable or pipe
- Sleeves available in versions for welding or bolting
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
RS 31 BG AISI316
Art. No. 164773
- Aperture dimension Ø (mm)
- 31 - 32
- For cable/pipe Ø (mm)
- 4 - 17
- Weight (kg)
- 0.08
RS 43 BG AISI316
Art. No. 164774
- Aperture dimension Ø (mm)
- 43 - 45
- For cable/pipe Ø (mm)
- 4 - 23
- Weight (kg)
- 0.26
RS 50 BG AISI316
Art. No. 125982
- Aperture dimension Ø (mm)
- 50 - 52
- For cable/pipe Ø (mm)
- 8 - 30
- Weight (kg)
- 0.34
RS 68 BG AISI316
Art. No. 164776
- Aperture dimension Ø (mm)
- 68 - 70
- For cable/pipe Ø (mm)
- 26 - 48
- Weight (kg)
- 0.57
RS 75 BG AISI316
Art. No. 164777
- Aperture dimension Ø (mm)
- 75 - 77
- For cable/pipe Ø (mm)
- 24 - 54
- Weight (kg)
- 0.67
RS 100 BG AISI316
Art. No. 164778
- Aperture dimension Ø (mm)
- 100 - 102
- For cable/pipe Ø (mm)
- 48 - 70
- Weight (kg)
- 1.15
RS 100 BG AISI316 WOC
Art. No. 182934
- Aperture dimension Ø (mm)
- 100 - 102
- For cable/pipe Ø (mm)
- 48 - 70
- Weight (kg)
- 1
RS 125 BG AISI316
Art. No. 164779
- Aperture dimension Ø (mm)
- 125 - 127
- For cable/pipe Ø (mm)
- 66 - 98
- Weight (kg)
- 1.7
RS 125 BG AISI316 WOC
Art. No. 190074
- Aperture dimension Ø (mm)
- 125 - 127
- For cable/pipe Ø (mm)
- 66 - 98
- Weight (kg)
- 1.46
RS 150 BG AISI316 WOC
Art. No. 164780
- Aperture dimension Ø (mm)
- 150 - 152
- For cable/pipe Ø (mm)
- 93 - 119
- Weight (kg)
- 1.83
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- RS BG (en) pdf (manufacturer document)
- Roxtec RS BG seal for metal pipes (en) pdf (manufacturer document)
- S1508686 RS BG RS 25-150 BG PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
