Roxtec RS B Ex kit

Roxtec round frames/seals · Roxtec

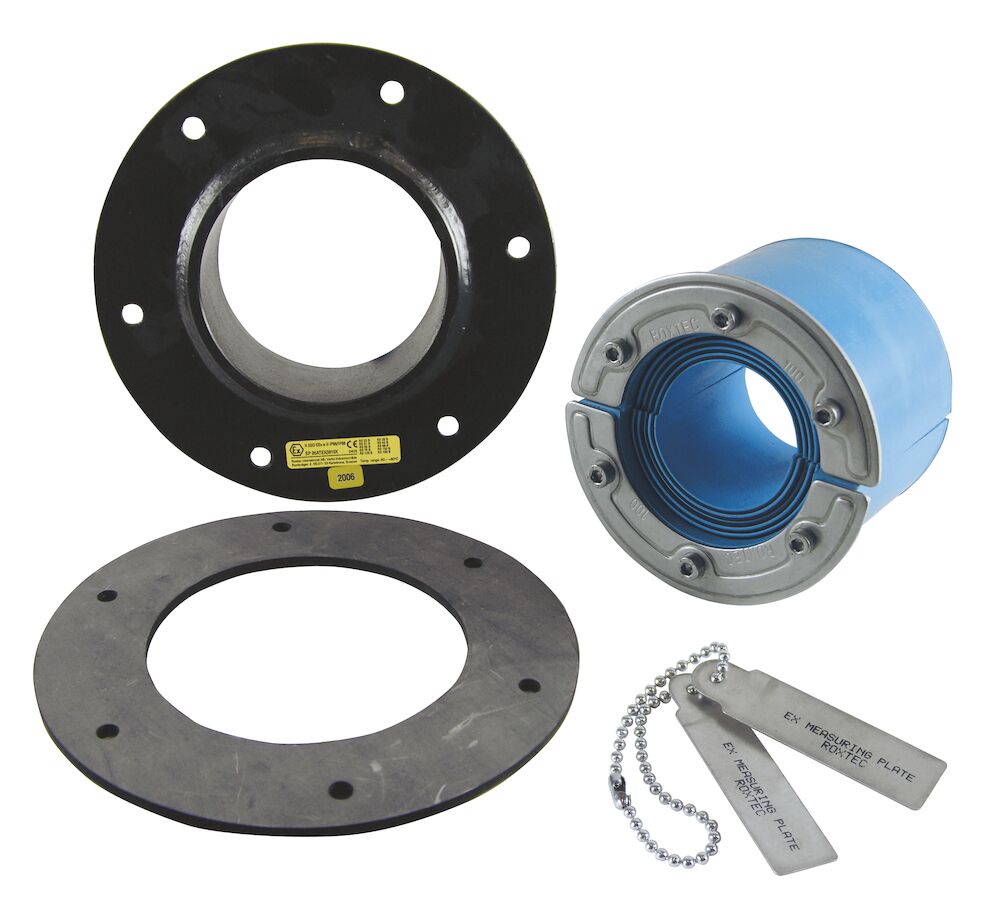

The Roxtec RS B Ex is a round entry seal including a sleeve for bolting. The seal consists of two halves and an adaptable center with removable layers. Compression is integrated in the seal.

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Request a quote for this product

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

RS 100 B Ex AISI316 WOC/PRIMED

Art. No. EXRSB0100102112

Aperture dimension Ø (mm)
116 - 118
For cable/pipe Ø (mm)
48 - 70
Weight (kg)
2.9
Quote this article number

RS 125 B Ex AISI316 WOC/PRIMED

Art. No. EXRSB0125102112

Aperture dimension Ø (mm)
142 - 144
For cable/pipe Ø (mm)
66 - 98
Weight (kg)
3.45
Quote this article number

RS 150 B Ex AISI316 WOC/PRIMED

Art. No. EXRSB0150102112

Aperture dimension Ø (mm)
166 - 168
For cable/pipe Ø (mm)
93 - 119
Weight (kg)
4.2
Quote this article number

RS 25 B Ex AISI316/GALV

Art. No. EXRSB0250002118

Aperture dimension Ø (mm)
36 - 36
For cable/pipe Ø (mm)
3.6 - 12
Weight (kg)
0.43
Quote this article number

RS 43 B Ex AISI316/GALV

Art. No. EXRSB0430002118

Aperture dimension Ø (mm)
54 - 54
For cable/pipe Ø (mm)
4 - 23
Weight (kg)
0.92
Quote this article number

RS 50 B Ex AISI316/GALV

Art. No. 101918

Aperture dimension Ø (mm)
65 - 65
For cable/pipe Ø (mm)
8 - 30
Weight (kg)
1.45
Quote this article number

RS 75 B Ex AISI316/GALV

Art. No. EXRSB0750002118

Aperture dimension Ø (mm)
91 - 91
For cable/pipe Ø (mm)
24 - 54
Weight (kg)
2.05
Quote this article number

RS 100 B Ex AISI316 WOC/GALV

Art. No. EXRSB0100102118

Aperture dimension Ø (mm)
116 - 116
For cable/pipe Ø (mm)
48 - 70
Weight (kg)
2.9
Quote this article number

RS 100 B Ex AISI316/GALV

Art. No. EXRSB1000002118

Aperture dimension Ø (mm)
116 - 116
For cable/pipe Ø (mm)
48 - 70
Weight (kg)
3
Quote this article number

RS 125 B Ex AISI316 WOC/GALV

Art. No. EXRSB0125102118

Aperture dimension Ø (mm)
142 - 142
For cable/pipe Ø (mm)
66 - 98
Weight (kg)
3.6
Quote this article number

RS 125 B Ex AISI316/GALV

Art. No. EXRSB1250002118

Aperture dimension Ø (mm)
125 - 127
For cable/pipe Ø (mm)
66 - 98
Weight (kg)
4.26
Quote this article number

RS 150 B Ex AISI316 WOC/GALV

Art. No. EXRSB0150102118

Aperture dimension Ø (mm)
166 - 166
For cable/pipe Ø (mm)
93 - 119
Weight (kg)
4.47
Quote this article number

RS 25 B Ex AISI316/AISI316

Art. No. EXRSB0250002121

Aperture dimension Ø (mm)
36 - 38
For cable/pipe Ø (mm)
3.6 - 12
Weight (kg)
0.48
Quote this article number

RS 43 B Ex AISI316/AISI316

Art. No. EXRSB0430002121

Aperture dimension Ø (mm)
54 - 56
For cable/pipe Ø (mm)
4 - 23
Weight (kg)
0.9
Quote this article number

RS 50 B Ex AISI316/AISI316

Art. No. EXRSB0500002121

Aperture dimension Ø (mm)
65 - 67
For cable/pipe Ø (mm)
8 - 30
Weight (kg)
1.45
Quote this article number

RS 75 B Ex AISI316/AISI316

Art. No. EXRSB0750002121

Aperture dimension Ø (mm)
91 - 93
For cable/pipe Ø (mm)
24 - 54
Weight (kg)
2.08
Quote this article number

RS 100 B Ex AISI316 WOC/AISI316

Art. No. EXRSB0100102121

Aperture dimension Ø (mm)
116 - 118
For cable/pipe Ø (mm)
48 - 70
Weight (kg)
2.7
Quote this article number

RS 100 B Ex AISI316/AISI316

Art. No. EXRSB1000002121

Aperture dimension Ø (mm)
116 - 116
For cable/pipe Ø (mm)
48 - 70
Weight (kg)
3
Quote this article number

RS 125 B Ex AISI316 WOC/AISI316

Art. No. EXRSB0125102121

Aperture dimension Ø (mm)
142 - 144
For cable/pipe Ø (mm)
66 - 98
Weight (kg)
3.6
Quote this article number

RS 125 B Ex AISI316/AISI316

Art. No. 163616

Aperture dimension Ø (mm)
142 - 142
For cable/pipe Ø (mm)
66 - 98
Weight (kg)
3.94
Quote this article number

RS 150 B Ex AISI316 WOC/AISI316

Art. No. EXRSB0150002121

Aperture dimension Ø (mm)
166 - 168
For cable/pipe Ø (mm)
93 - 119
Weight (kg)
4.06
Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

AuthorityRatingDivision / structureCablePipeType approvalStatus
BV A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Steel Armored Marine Shielded Unshielded ABS Bundle Copper Copper-Nickel Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC Steel 12509/E0 No renewal status stated
BV Gas tightness (catastrophic) H class fire Water tightness (catastrophic) Steel Marine — 15027/E0 BV No renewal status stated
CSA Ex — Armored Other Conduit 2254189 No renewal status stated
SGS Ex — Armored Other Conduit 25-08-162752/E25-08-169410/NB0002 No renewal status stated
LLC SERTIS-CENTER Ex — Other Conduit CII 23.0812 X No renewal status stated
CSA Ex — Armored Other Conduit CSAE 23UKEX1066X No renewal status stated
Roxtec International AB Ex — — — DoC RM and HD Ex No renewal status stated
Nemko Ex — Other — IECEx NEM 120014X No renewal status stated
LR A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Aluminium Steel Marine Bundle Copper Copper-Nickel Fiberglass Steel LR21217042SF-04 Source states: under renewal
NCC Ex — Other Conduit NCC 11.0174 X No renewal status stated
Nemko Ex — — — Nemko 12ATEX1278X No renewal status stated
RISE Ex — — — RISE25ATEX0001 No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec round frames/seals

Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
