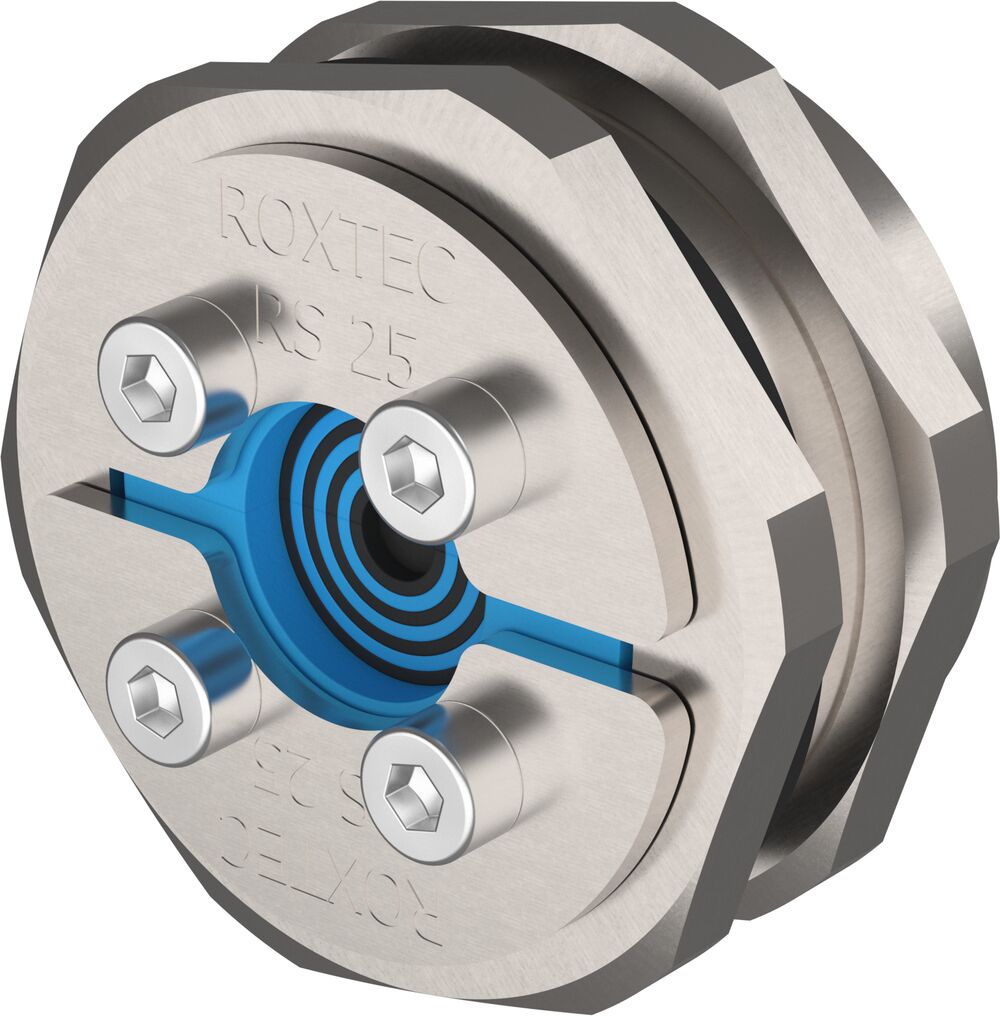

Roxtec C RS T kit representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec C RS T kit

Roxtec round frames/seals · Product details and source-listed options

The Roxtec C RS T entry seal is a small-sized solution for cabinets and equipment. The product is supplied as ready-made kits which include all necessary components.

  • Attachment by counter ring nut
  • For one cable or pipe
  • Available in four sizes

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 8 article options

C RS T 25 AISI316

Art. No. 104761

Aperture dimension Ø (mm)
33 - 33
For cable/pipe Ø (mm)
3.6 - 12
Weight (kg)
0.11
Quote this article number

C RS T 31 AISI316

Art. No. 5CRST00011494

Aperture dimension Ø (mm)
41 - 41
For cable/pipe Ø (mm)
4 - 17
Weight (kg)
0.16
Quote this article number

C RS T 43 AISI316

Art. No. 106064

Aperture dimension Ø (mm)
52 - 52
For cable/pipe Ø (mm)
4 - 23
Weight (kg)
0.38
Quote this article number

C RS T 50 AISI316

Art. No. 106065

Aperture dimension Ø (mm)
64 - 64
For cable/pipe Ø (mm)
8 - 30
Weight (kg)
0.65
Quote this article number

C RS T 25

Art. No. CRST010025046

Aperture dimension Ø (mm)
33 - 33
For cable/pipe Ø (mm)
3.6 - 12
Weight (kg)
0.1
Quote this article number

C RS T 31

Art. No. CRST010031046

Aperture dimension Ø (mm)
41 - 41
For cable/pipe Ø (mm)
4 - 17
Weight (kg)
0.16
Quote this article number

C RS T 43

Art. No. CRST010043046

Aperture dimension Ø (mm)
52 - 52
For cable/pipe Ø (mm)
4 - 23
Weight (kg)
0.39
Quote this article number

C RS T 50

Art. No. CRST010050046

Aperture dimension Ø (mm)
64 - 64
For cable/pipe Ø (mm)
8 - 30
Weight (kg)
0.66
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (2)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Listed 6 certificates
AuthorityRatingDivision / structureCablePipeType approvalStatus
CSA IP tightness UL/NEMA tightness — Other Copper Steel 1333944 No renewal status stated
Roxtec International AB — — — — Declaration of conformity Compact No renewal status stated
Underwriters Laboratories Inc. UL/NEMA tightness — — — E209828 No renewal status stated
Underwriters Laboratories Inc. IP tightness UL/NEMA tightness — — — E496911 No renewal status stated
Underwriters Laboratories Inc. UL/NEMA tightness — — — NITW2.E209828 No renewal status stated
Underwriters Laboratories Inc. UL/NEMA tightness — — — NITW8.E209828 No renewal status stated

Product sources

About Roxtec round frames/seals

Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.

Typical applications:

  • Round openings
  • Sleeves and core-drilled holes
  • Cable and pipe entries

Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
