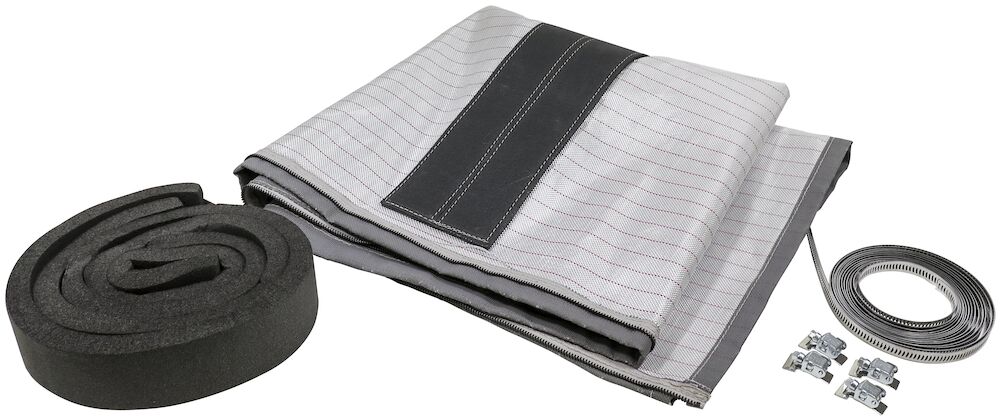

GK FS SK representative product image
Representative product image. Size or configuration can vary.

Roxtec

GK FS SK

Roxtec round frames/seals · Product details and source-listed options

The GK Firestop sealing kit for marine above waterline applications consists of components for fire and cold smoke prevention, all developed for easy use and closing of the transit.

  • Integrated intumescent material
  • Cold smoke-tight fabric and zipper
  • For cables, cable bundles or bus-bars

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Show all 20 article options

GK FS SK 89 KIT

Art. No. 197464

Aperture dimension Ø (mm)
84 - 89
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
0.66
Quote this article number

GK FS SK 127 KIT

Art. No. 197465

Aperture dimension Ø (mm)
107 - 127
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1
Quote this article number

GK FS SK 140 KIT

Art. No. 197466

Aperture dimension Ø (mm)
120 - 140
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
0.82
Quote this article number

GK FS SK 168 KIT

Art. No. 197467

Aperture dimension Ø (mm)
138 - 168
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.2
Quote this article number

GK FS SK 219 KIT

Art. No. 197468

Aperture dimension Ø (mm)
179 - 219
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.55
Quote this article number

GK FS SK 244 KIT

Art. No. 197469

Aperture dimension Ø (mm)
204 - 244
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.78
Quote this article number

GK FS SK 273 KIT

Art. No. 197470

Aperture dimension Ø (mm)
233 - 273
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.89
Quote this article number

GK FS SK 200x150 KIT

Art. No. 197472

Aperture dimension Ø (mm)
169 - 182
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.27
Quote this article number

GK FS SK 200x170 KIT

Art. No. 197474

Aperture dimension Ø (mm)
176 - 189
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.36
Quote this article number

GK FS SK 250x170 KIT

Art. No. 197475

Aperture dimension Ø (mm)
208 - 224
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.58
Quote this article number

GK FS SK 89 KIT NON-OPENABLE

Art. No. 197823

Aperture dimension Ø (mm)
84 - 89
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
0.55
Quote this article number

GK FS SK 127 KIT NON-OPENABLE

Art. No. 197817

Aperture dimension Ø (mm)
107 - 127
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
0.71
Quote this article number

GK FS SK 140 KIT NON-OPENABLE

Art. No. 197820

Aperture dimension Ø (mm)
120 - 140
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
0.7
Quote this article number

GK FS SK 168 KIT NON-OPENABLE

Art. No. 197821

Aperture dimension Ø (mm)
138 - 168
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.1
Quote this article number

GK FS SK 219 KIT NON-OPENABLE

Art. No. 197824

Aperture dimension Ø (mm)
179 - 219
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.43
Quote this article number

GK FS SK 244 KIT NON-OPENABLE

Art. No. 197825

Aperture dimension Ø (mm)
204 - 244
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.65
Quote this article number

GK FS SK 273 KIT NON-OPENABLE

Art. No. 197814

Aperture dimension Ø (mm)
233 - 273
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
2.3
Quote this article number

GK FS SK 200x150 KIT NON-OPENABLE

Art. No. 197813

Aperture dimension Ø (mm)
169 - 182
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.16
Quote this article number

GK FS SK 200x170 KIT NON-OPENABLE

Art. No. 197818

Aperture dimension Ø (mm)
176 - 189
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.26
Quote this article number

GK FS SK 250x170 KIT NON-OPENABLE

Art. No. 197822

Aperture dimension Ø (mm)
208 - 224
For cable/pipe Ø (mm)
0 - 50
Weight (kg)
1.49
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (5)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Listed 12 certificates
AuthorityRatingDivision / structureCablePipeType approvalStatus
ABS A class fire Steel Marine Bundle 25-0300656-PDA No renewal status stated
BV A class fire Steel Marine Bundle 61826/B0 BV No renewal status stated
CCS A class fire Gas tightness (catastrophic) Water tightness (catastrophic) Aluminium Steel Marine — GB23PTB00036_01 No renewal status stated
DNV A class fire Steel Marine — MEDB000069T No renewal status stated
DNV A class fire Aluminium Marine — MEDB00007FN No renewal status stated
DNV A class fire Steel Bus duct — MEDB000085D No renewal status stated
DNV A class fire Aluminium Marine — MERB00007FN No renewal status stated
DNV A class fire Steel Bus duct — MERB000085D No renewal status stated
DNV A class fire Steel Marine — MERB0001N9S No renewal status stated
ClassNK A class fire Steel Armored Marine — TA26251E(R) No renewal status stated
DNV A class fire Steel Bus duct — TAF00001E2 No renewal status stated
DNV A class fire Aluminium Marine — TAF00001N7 No renewal status stated

Product sources

About Roxtec round frames/seals

Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.

Typical applications:

  • Round openings
  • Sleeves and core-drilled holes
  • Cable and pipe entries
