C RS SLO 43 ALU
Art. No. 234690
- Aperture dimension Ø (mm)
- 44 - 46
- For cable/pipe Ø (mm)
- 4 - 23
- Weight (kg)
- 0.25
Roxtec round frames/seals

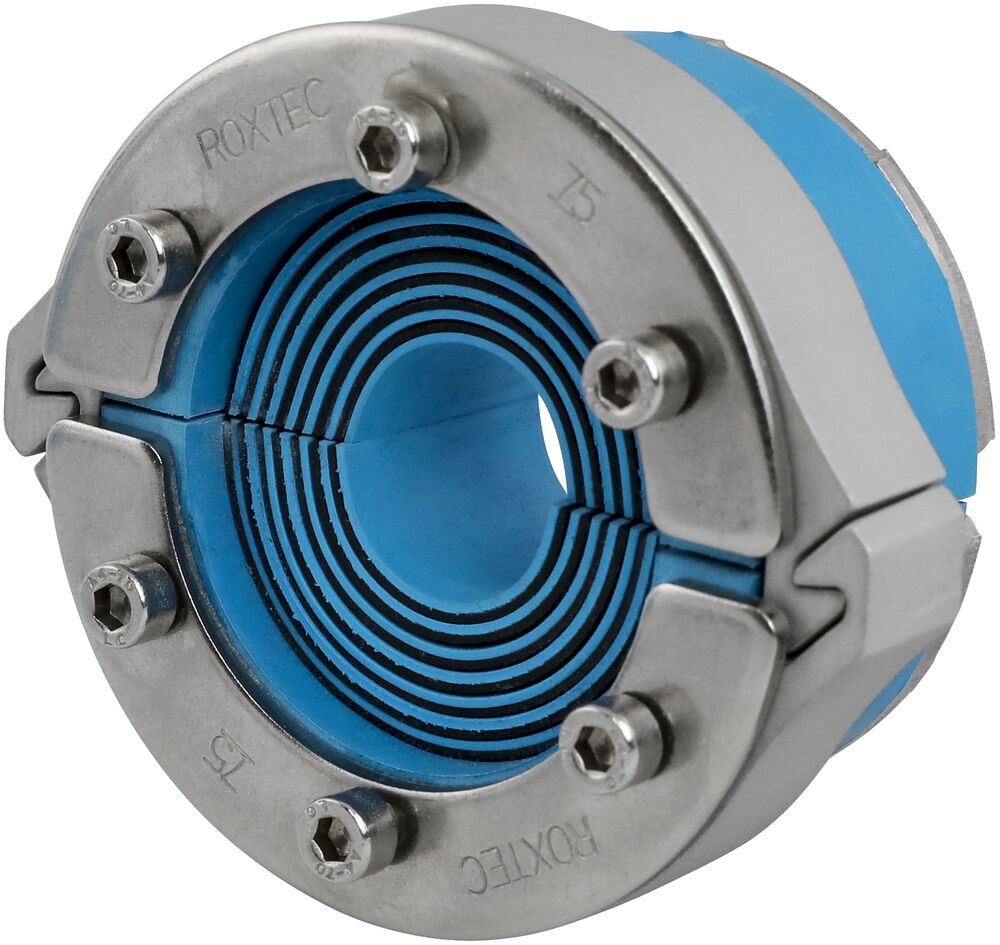

Roxtec C RS SLO seal
Roxtec round frames/seals · Roxtec
The Roxtec C RS SLO is a lightweight yet very strong sealing solution for single cable and pipe entries in cabinets, enclosures, and equipment. Providing ingress and fire protection as well as vibration-proof cable retention, it is ideal for mobility sectors such as rolling stock. The solution consists of an adaptable Roxtec C RS seal and a Roxtec C SLO sleeve. It is available in four different sizes to cover cables and pipes ranging from 4 to 54 mm.
- Lightweight
- Area efficient
- Ideal for serial production
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
C RS SLO 50 ALU
Art. No. 234691
- Aperture dimension Ø (mm)
- 50 - 53
- For cable/pipe Ø (mm)
- 8 - 30
- Weight (kg)
- 0.29
C RS SLO 68 ALU
Art. No. 234692
- Aperture dimension Ø (mm)
- 69 - 71
- For cable/pipe Ø (mm)
- 26 - 48
- Weight (kg)
- 0.43
C RS SLO 75 ALU
Art. No. 234694
- Aperture dimension Ø (mm)
- 76 - 78
- For cable/pipe Ø (mm)
- 24 - 54
- Weight (kg)
- 0.5
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- C RS SLO (en) pdf (manufacturer document)
- S1597300 C RS SLO SEALS C RS SLO 43-75 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded Unshielded | — | MEDB00002SA rev5 | No renewal status stated |
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | — | MERB00002SA | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec round frames/seals
Roxtec round frames and seals cover round cable and pipe entry arrangements. Selection depends on the opening, cable or pipe dimensions, attachment method, and project requirements.
Typical applications:
- Round openings
- Sleeves and core-drilled holes
- Cable and pipe entries
Not sure this is the right product? Compare the Roxtec round frames/seals family or describe your application.
