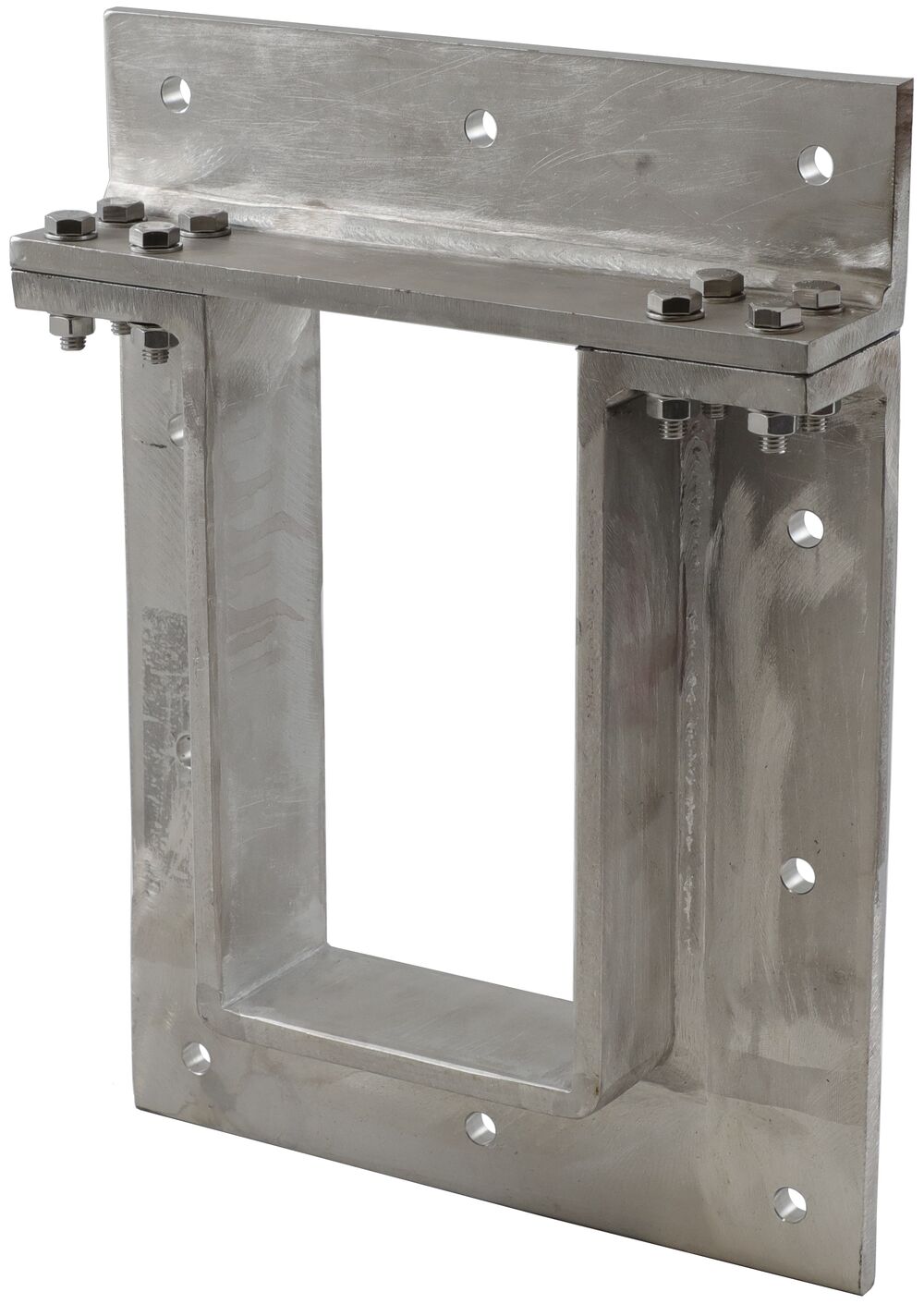

Representative product image. Size or configuration can vary.

Roxtec

Roxtec SFOH frame

Roxtec rectangular frames · Product details and source-listed options

The Roxtec SFOH frame is an openable version of the SFHM and is the go-to alternative when cables or pipes are already routed.

Openable.
Attachment by bolting.
To be used with corresponding Roxtec components to form a complete sealing solution.

Retail pricing

13 of 32 catalog articles priced

$1,725.47–$5,700.71 priced option range

Online ordering coming soon.

Select the matching SKU or article number. Availability, shipping, tax, suitability, and final order details are confirmed by a person.

Price source: Roxtec retail list · 2026.

Show all 13 options

Option	SKU / article	Price	Action
SFOH 2x1 AISI316	106162	$1,725.47	Quote this option
SFOH 4x1 AISI316	106163	$1,809.52	Quote this option
SFOH 4x2 AISI316	171353	$2,981.43	Quote this option
SFOH 4x3 AISI316	171354	$4,172.60	Quote this option
SFOH 4x4 AISI316	236043	$5,344.17	Quote this option
SFOH 6x1 AISI316	106164	$1,914.31	Quote this option
SFOH 6x2 AISI316	118846	$3,112.58	Quote this option
SFOH 6x3 AISI316	118847	$4,330.77	Quote this option
SFOH 6x4 AISI316	105325	$5,529.17	Quote this option
SFOH 8x1 AISI316	106165	$2,005.39	Quote this option
SFOH 8x2 AISI316	106221	$3,230.81	Quote this option
SFOH 8x3 AISI316	171369	$4,475.42	Quote this option
SFOH 8x4 AISI316	171370	$5,700.71	Quote this option

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Show all 32 article options

SFOH 2x1 GALV

Art. No. 124472

Aperture dimensions WxH (mm): 161(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 7

Quote this article number

SFOH 2x2 GALV

Art. No. 251640

Aperture dimensions WxH (mm): 293(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 393 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 10

Quote this article number

SFOH 2x3 GALV

Art. No. 251641

Aperture dimensions WxH (mm): 426(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 525.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 13.1

Quote this article number

SFOH 2x4 GALV

Art. No. 251642

Aperture dimensions WxH (mm): 558(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 658 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 16.2

Quote this article number

SFOH 4x1 GALV

Art. No. 124473

Aperture dimensions WxH (mm): 161(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 8.5

Quote this article number

SFOH 4x2 GALV

Art. No. 251643

Aperture dimensions WxH (mm): 293(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 393 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 11.53

Quote this article number

SFOH 4x3 GALV

Art. No. 251644

Aperture dimensions WxH (mm): 426(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 525.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 14.9

Quote this article number

SFOH 4x4 GALV

Art. No. 123016

Aperture dimensions WxH (mm): 558(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 658 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 19

Quote this article number

SFOH 6x1 GALV

Art. No. 175023

Aperture dimensions WxH (mm): 161(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 10

Quote this article number

SFOH 6x2 GALV

Art. No. 175025

Aperture dimensions WxH (mm): 293(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 393 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 13.5

Quote this article number

SFOH 6x3 GALV

Art. No. 124470

Aperture dimensions WxH (mm): 426(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 525.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 16.6

Quote this article number

SFOH 6x4 GALV

Art. No. 124471

Aperture dimensions WxH (mm): 558(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 658 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 20.4

Quote this article number

SFOH 8x1 GALV

Art. No. 175034

Aperture dimensions WxH (mm): 161(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 10

Quote this article number

SFOH 8x2 GALV

Art. No. 254323

Aperture dimensions WxH (mm): 293(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 393 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 14.4

Quote this article number

SFOH 8x3 GALV

Art. No. 254324

Aperture dimensions WxH (mm): 426(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 525.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 18.4

Quote this article number

SFOH 8x4 GALV

Art. No. 254325

Aperture dimensions WxH (mm): 558(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 658 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 22.5

Quote this article number

SFOH 2x1 AISI316

Art. No. 106162

Aperture dimensions WxH (mm): 161(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 7

Quote this article number

SFOH 2x2 AISI316

Art. No. 245788

Aperture dimensions WxH (mm): 293(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 393 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 10.2

Quote this article number

SFOH 2x3 AISI316

Art. No. 245789

Aperture dimensions WxH (mm): 426(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 525.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 13.4

Quote this article number

SFOH 2x4 AISI316

Art. No. 245790

Aperture dimensions WxH (mm): 558(+5/-5) x 141(+5/-5)
External dimensions WxHxD (mm): 658 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 16.5

Quote this article number

SFOH 4x1 AISI316

Art. No. 106163

Aperture dimensions WxH (mm): 161(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 8

Quote this article number

SFOH 4x2 AISI316

Art. No. 171353

Aperture dimensions WxH (mm): 293(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 393 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 11.7

Quote this article number

SFOH 4x3 AISI316

Art. No. 171354

Aperture dimensions WxH (mm): 426(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 525.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 14.76

Quote this article number

SFOH 4x4 AISI316

Art. No. 236043

Aperture dimensions WxH (mm): 558(+5/-5) x 200(+5/-5)
External dimensions WxHxD (mm): 658 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 18.6

Quote this article number

SFOH 6x1 AISI316

Art. No. 106164

Aperture dimensions WxH (mm): 161(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 9

Quote this article number

SFOH 6x2 AISI316

Art. No. 118846

Aperture dimensions WxH (mm): 293(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 393 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 13

Quote this article number

SFOH 6x3 AISI316

Art. No. 118847

Aperture dimensions WxH (mm): 426(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 525.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 18

Quote this article number

SFOH 6x4 AISI316

Art. No. 105325

Aperture dimensions WxH (mm): 558(+5/-5) x 258(+5/-5)
External dimensions WxHxD (mm): 658 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 20.4

Quote this article number

SFOH 8x1 AISI316

Art. No. 106165

Aperture dimensions WxH (mm): 161(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 10

Quote this article number

SFOH 8x2 AISI316

Art. No. 106221

Aperture dimensions WxH (mm): 293(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 393 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 13.53

Quote this article number

SFOH 8x3 AISI316

Art. No. 171369

Aperture dimensions WxH (mm): 426(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 525.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 18.8

Quote this article number

SFOH 8x4 AISI316

Art. No. 171370

Aperture dimensions WxH (mm): 558(+5/-5) x 318(+5/-5)
External dimensions WxHxD (mm): 658 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 22.5

Quote this article number

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Listed 6 certificates

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
IRS	A class fire	Steel	Marine	Bundle Copper Fiberglass Steel	2022TAC104	No renewal status stated
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel HDPE Other PB PE Plastic PP PVC PVDF Steel Titanium	63792/B0 BV	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine	—	GB23PTB00036_01	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel	GB23PTB00036_02	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	MEDB00001Y7	No renewal status stated
DNV	A class fire	Steel	Fiber Marine	—	MERB00001Y7	No renewal status stated

Product sources

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
