Roxtec rectangular frames

Roxtec SF welded Ex frame

Roxtec rectangular frames · Roxtec

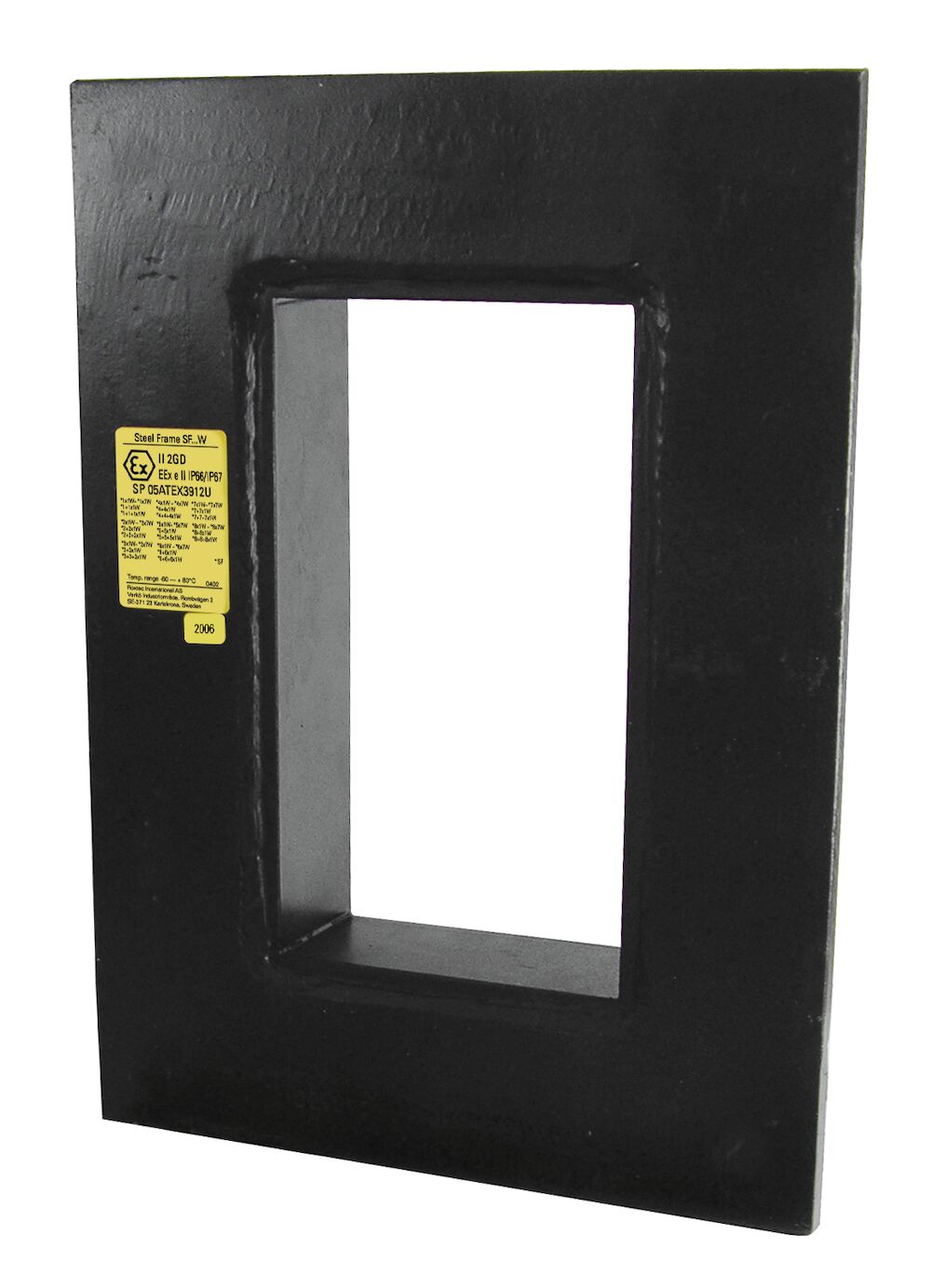

The Roxtec SF...W Ex frame is a metal frame with flange. It is available with a single opening, or in combinations with several openings in width and/or height. The Roxtec SF...W Ex frame is approved for use in potentially explosive atmospheres and hazardous locations.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

SF 6x1 W Ex PRIMED

Art. No. EXSF00600000112

Aperture dimensions WxH (mm): 201(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 8.2

Quote this article number

SF 6x2 W Ex PRIMED

Art. No. EXSF00600000212

Aperture dimensions WxH (mm): 331(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 391 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 11.8

Quote this article number

SF 6x3 W Ex PRIMED

Art. No. EXSF00600000312

Aperture dimensions WxH (mm): 462(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 521.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 15.3

Quote this article number

SF 6x1 W Ex AISI316

Art. No. EXSF00600000121

Aperture dimensions WxH (mm): 201(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 260.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 8.1

Quote this article number

SF 6x2 W Ex AISI316

Art. No. EXSF00600000221

Aperture dimensions WxH (mm): 331(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 391 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 11.8

Quote this article number

SF 6x3 W Ex AISI316

Art. No. EXSF00600000321

Aperture dimensions WxH (mm): 462(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 521.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 15.3

Quote this article number

SF 2x1 W Ex PRIMED

Art. No. EXSF00200000112

Aperture dimensions WxH (mm): 201(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 6

Quote this article number

SF 2x2 W Ex PRIMED

Art. No. EXSF00200000212

Aperture dimensions WxH (mm): 331(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 391 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 9

Quote this article number

SF 2x3 W Ex PRIMED

Art. No. EXSF00200000312

Aperture dimensions WxH (mm): 462(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 521.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 12

Quote this article number

SF 2x4 W Ex PRIMED

Art. No. 116455

Aperture dimensions WxH (mm): 592(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 652 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 14.6

Quote this article number

SF 2x5 W Ex PRIMED

Art. No. 116456

Aperture dimensions WxH (mm): 723(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 782.5 x 241 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 17.5

Quote this article number

SF 2+2x1 W Ex PRIMED

Art. No. 116462

Aperture dimensions WxH (mm): 201(+15/-15) x 292(+15/-15)
External dimensions WxHxD (mm): 260.5 x 352 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 8.5

Quote this article number

SF 2+2x2 W Ex PRIMED

Art. No. 116463

Aperture dimensions WxH (mm): 331(+15/-15) x 302(+15/-15)
External dimensions WxHxD (mm): 391 x 362 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 13.9

Quote this article number

SF 2+2x3 W Ex PRIMED

Art. No. 116464

Aperture dimensions WxH (mm): 462(+15/-15) x 302(+15/-15)
External dimensions WxHxD (mm): 521.5 x 362 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 18.7

Quote this article number

SF 2+2x4 W Ex PRIMED

Art. No. 116465

Aperture dimensions WxH (mm): 592(+15/-15) x 302(+15/-15)
External dimensions WxHxD (mm): 652 x 362 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 23.1

Quote this article number

SF 4x1 W Ex PRIMED

Art. No. EXSF00400000112

Aperture dimensions WxH (mm): 201(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 7.1

Quote this article number

SF 4x2 W Ex PRIMED

Art. No. EXSF00400000212

Aperture dimensions WxH (mm): 331(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 391 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 10.4

Quote this article number

SF 4x3 W Ex PRIMED

Art. No. EXSF00400000312

Aperture dimensions WxH (mm): 462(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 521.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 13.6

Quote this article number

SF 4x4 W Ex PRIMED

Art. No. EXSF00400000412

Aperture dimensions WxH (mm): 592(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 652 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 16.9

Quote this article number

SF 4x5 W Ex PRIMED

Art. No. EXSF004000000512

Aperture dimensions WxH (mm): 723(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 782.5 x 299.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 20.03

Quote this article number

SF 4+4x1 W Ex PRIMED

Art. No. 116489

Aperture dimensions WxH (mm): 201(+15/-15) x 409(+15/-15)
External dimensions WxHxD (mm): 260.5 x 469 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 10.8

Quote this article number

SF 4+4x2 W Ex PRIMED

Art. No. 116490

Aperture dimensions WxH (mm): 331(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 391 x 479 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 16.6

Quote this article number

SF 4+4x3 W Ex PRIMED

Art. No. 108301

Aperture dimensions WxH (mm): 462(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 521.5 x 479 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 23.5

Quote this article number

SF 4+4x4 W Ex PRIMED

Art. No. 116491

Aperture dimensions WxH (mm): 592(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 652 x 479 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 26.9

Quote this article number

SF 4+4x5 W Ex PRIMED

Art. No. 108305

Aperture dimensions WxH (mm): 723(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 782.5 x 479 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 32.1

Quote this article number

SF 6x4 W Ex PRIMED

Art. No. EXSF00600000412

Aperture dimensions WxH (mm): 592(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 652 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 18.8

Quote this article number

SF 6x5 W Ex PRIMED

Art. No. EXSF00600000512

Aperture dimensions WxH (mm): 723(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 782.5 x 358 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 22.4

Quote this article number

SF 6+6x1 W Ex PRIMED

Art. No. 116511

Aperture dimensions WxH (mm): 201(+15/-15) x 526(+15/-15)
External dimensions WxHxD (mm): 260.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 13.07

Quote this article number

SF 6+6x2 W Ex PRIMED

Art. No. 119538

Aperture dimensions WxH (mm): 331(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 391 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 19.4

Quote this article number

SF 6+6x3 W Ex PRIMED

Art. No. 116512

Aperture dimensions WxH (mm): 462(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 521.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 25.1

Quote this article number

SF 6+6x4 W Ex PRIMED

Art. No. 116513

Aperture dimensions WxH (mm): 592(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 652 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 32

Quote this article number

SF 6+6x5 W Ex PRIMED

Art. No. 116514

Aperture dimensions WxH (mm): 723(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 782.5 x 596 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 36.6

Quote this article number

SF 8x1 W Ex PRIMED

Art. No. EXSF00800000112

Aperture dimensions WxH (mm): 201(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 9.4

Quote this article number

SF 8x2 W Ex PRIMED

Art. No. EXSF00800000212

Aperture dimensions WxH (mm): 331(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 391 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 13.21

Quote this article number

SF 8x3 W Ex PRIMED

Art. No. EXSF00800000312

Aperture dimensions WxH (mm): 462(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 521.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 17

Quote this article number

SF 8x4 W Ex PRIMED

Art. No. EXSF00800000412

Aperture dimensions WxH (mm): 592(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 652 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 20.8

Quote this article number

SF 8x5 W Ex PRIMED

Art. No. EXSF00800000512

Aperture dimensions WxH (mm): 723(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 782.5 x 418 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 24.7

Quote this article number

SF 8+8x1 W Ex PRIMED

Art. No. 116535

Aperture dimensions WxH (mm): 201(+15/-15) x 646(+15/-15)
External dimensions WxHxD (mm): 260.5 x 706 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 2

Quote this article number

SF 8+8x2 W Ex PRIMED

Art. No. 116536

Aperture dimensions WxH (mm): 331(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 391 x 716 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 22.2

Quote this article number

SF 8+8x3 W Ex PRIMED

Art. No. 108313

Aperture dimensions WxH (mm): 462(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 521.5 x 716 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 28.4

Quote this article number

SF 8+8x4 W Ex PRIMED

Art. No. 108314

Aperture dimensions WxH (mm): 592(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 652 x 716 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 35.3

Quote this article number

SF 8+8x5 W Ex PRIMED

Art. No. 116537

Aperture dimensions WxH (mm): 723(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 782.5 x 716 x 60
Frame openings: 10
Packing space (mm): 120 x 240
Weight (kg): 41.7

Quote this article number

SF 2x1 W Ex AISI316

Art. No. EXSF00200000121

Aperture dimensions WxH (mm): 201(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 260.5 x 241 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 5.85

Quote this article number

SF 2x2 W Ex AISI316

Art. No. EXSF00200000221

Aperture dimensions WxH (mm): 331(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 391 x 241 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 9

Quote this article number

SF 2x3 W Ex AISI316

Art. No. EXSF00200000321

Aperture dimensions WxH (mm): 462(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 521.5 x 241 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 12

Quote this article number

SF 2x4 W Ex AISI316

Art. No. 116354

Aperture dimensions WxH (mm): 592(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 652 x 241 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 15

Quote this article number

SF 2x5 W Ex AISI316

Art. No. 116355

Aperture dimensions WxH (mm): 723(+15/-15) x 181(+15/-15)
External dimensions WxHxD (mm): 782.5 x 241 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 18

Quote this article number

SF 2+2x1 W Ex AISI316

Art. No. EXSF00220000121

Aperture dimensions WxH (mm): 201(+15/-15) x 292(+15/-15)
External dimensions WxHxD (mm): 260.5 x 352 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 8.7

Quote this article number

SF 2+2x2 W Ex AISI316

Art. No. 116361

Aperture dimensions WxH (mm): 331(+15/-15) x 302(+15/-15)
External dimensions WxHxD (mm): 391 x 362 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 14.2

Quote this article number

SF 2+2x3 W Ex AISI316

Art. No. 116362

Aperture dimensions WxH (mm): 462(+15/-15) x 302(+15/-15)
External dimensions WxHxD (mm): 521.5 x 362 x 60
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 19

Quote this article number

SF 2+2x4 W Ex AISI316

Art. No. 116363

Aperture dimensions WxH (mm): 592(+15/-15) x 302(+15/-15)
External dimensions WxHxD (mm): 652 x 362 x 60
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 23.7

Quote this article number

SF 4x1 W Ex AISI316

Art. No. EXSF00400000121

Aperture dimensions WxH (mm): 201(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 260.5 x 299.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 7.1

Quote this article number

SF 4x2 W Ex AISI316

Art. No. EXSF00400000221

Aperture dimensions WxH (mm): 331(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 391 x 299.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 10.24

Quote this article number

SF 4x3 W Ex AISI316

Art. No. EXSF00400000321

Aperture dimensions WxH (mm): 462(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 521.5 x 299.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 13.7

Quote this article number

SF 4x4 W Ex AISI316

Art. No. 116382

Aperture dimensions WxH (mm): 592(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 652 x 299.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 17

Quote this article number

SF 4x5 W Ex AISI316

Art. No. 116383

Aperture dimensions WxH (mm): 723(+15/-15) x 240(+15/-15)
External dimensions WxHxD (mm): 782.5 x 299.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 20.2

Quote this article number

SF 4+4x1 W Ex AISI316

Art. No. 116389

Aperture dimensions WxH (mm): 201(+15/-15) x 409(+15/-15)
External dimensions WxHxD (mm): 260.5 x 469 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 11

Quote this article number

SF 4+4x2 W Ex AISI316

Art. No. 116390

Aperture dimensions WxH (mm): 331(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 391 x 479 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 17

Quote this article number

SF 4+4x3 W Ex AISI316

Art. No. 116391

Aperture dimensions WxH (mm): 462(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 521.5 x 479 x 60
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 22.3

Quote this article number

SF 4+4x4 W Ex AISI316

Art. No. 116392

Aperture dimensions WxH (mm): 592(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 652 x 479 x 60
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 27.6

Quote this article number

SF 4+4x5 W Ex AISI316

Art. No. 116393

Aperture dimensions WxH (mm): 723(+15/-15) x 419(+15/-15)
External dimensions WxHxD (mm): 782.5 x 479 x 60
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 32.9

Quote this article number

SF 6x5 W Ex AISI316

Art. No. EXSF00600000521

Aperture dimensions WxH (mm): 723(+15/-15) x 298(+15/-15)
External dimensions WxHxD (mm): 782.5 x 358 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 22.5

Quote this article number

SF 6+6x1 W Ex AISI316

Art. No. EXSF00660000121

Aperture dimensions WxH (mm): 201(+15/-15) x 526(+15/-15)
External dimensions WxHxD (mm): 260.5 x 586 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 13.1

Quote this article number

SF 6+6x2 W Ex AISI316

Art. No. 108091

Aperture dimensions WxH (mm): 331(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 391 x 596 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 19.9

Quote this article number

SF 6+6x3 W Ex AISI316

Art. No. EXSF06600000321

Aperture dimensions WxH (mm): 462(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 521.5 x 596 x 60
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 25.7

Quote this article number

SF 6+6x4 W Ex AISI316

Art. No. 116417

Aperture dimensions WxH (mm): 592(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 652 x 596 x 60
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 32

Quote this article number

SF 6+6x5 W Ex AISI316

Art. No. 116418

Aperture dimensions WxH (mm): 723(+15/-15) x 536(+15/-15)
External dimensions WxHxD (mm): 782.5 x 596 x 60
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 37.4

Quote this article number

SF 8x1 W Ex AISI316

Art. No. EXSF00800000121

Aperture dimensions WxH (mm): 201(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 260.5 x 418 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 9.4

Quote this article number

SF 8x2 W Ex AISI316

Art. No. EXSF00800000221

Aperture dimensions WxH (mm): 331(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 391 x 418 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 13.2

Quote this article number

SF 8x3 W Ex AISI316

Art. No. EXSF00800000321

Aperture dimensions WxH (mm): 462(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 521.5 x 418 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 16.98

Quote this article number

SF 8x4 W Ex AISI316

Art. No. EXSF00800000421

Aperture dimensions WxH (mm): 592(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 652 x 418 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 21

Quote this article number

SF 8x5 W Ex AISI316

Art. No. EXSF00800000521

Aperture dimensions WxH (mm): 723(+15/-15) x 358(+15/-15)
External dimensions WxHxD (mm): 782.5 x 418 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 25

Quote this article number

SF 8+8x1 W Ex AISI316

Art. No. 116436

Aperture dimensions WxH (mm): 201(+15/-15) x 646(+15/-15)
External dimensions WxHxD (mm): 260.5 x 706 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 15.2

Quote this article number

SF 8+8x2 W Ex AISI316

Art. No. 116437

Aperture dimensions WxH (mm): 331(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 391 x 716 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 22.7

Quote this article number

SF 8+8x3 W Ex AISI316

Art. No. 116438

Aperture dimensions WxH (mm): 462(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 521.5 x 716 x 60
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 1

Quote this article number

SF 8+8x4 W Ex AISI316

Art. No. 116439

Aperture dimensions WxH (mm): 592(+15/-15) x 656(+15/-15)
External dimensions WxHxD (mm): 652 x 716 x 60
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 35.6

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

FRAMES Ex (en) pdf (manufacturer document)
S1016667 SF...W Ex FRAME +SINGLE AND +COMBINATION FRAME PDF (manufacturer document)
S1016668 SF...W Ex FRAME SINGLE AND COMBINATION FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	2254189	No renewal status stated
SGS	Ex	—	Armored Other	Conduit	25-08-162750/E25-08-169397/NB0002	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	CSAE 23UKEX1065U	No renewal status stated
Roxtec International AB	Ex	—	—	—	DoC RM and HD Ex	No renewal status stated
Nemko	Ex	—	—	—	IECEx NEM 12.0015U	No renewal status stated
NCC	Ex	—	Other	Conduit	NCC 11.0267 U	No renewal status stated
Nemko	Ex	—	Other	—	Nemko 12ATEX1279U	No renewal status stated
RISE	Ex	—	—	—	RISE25ATEX0001	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
