Roxtec SBTB frame

Roxtec rectangular frames · Roxtec

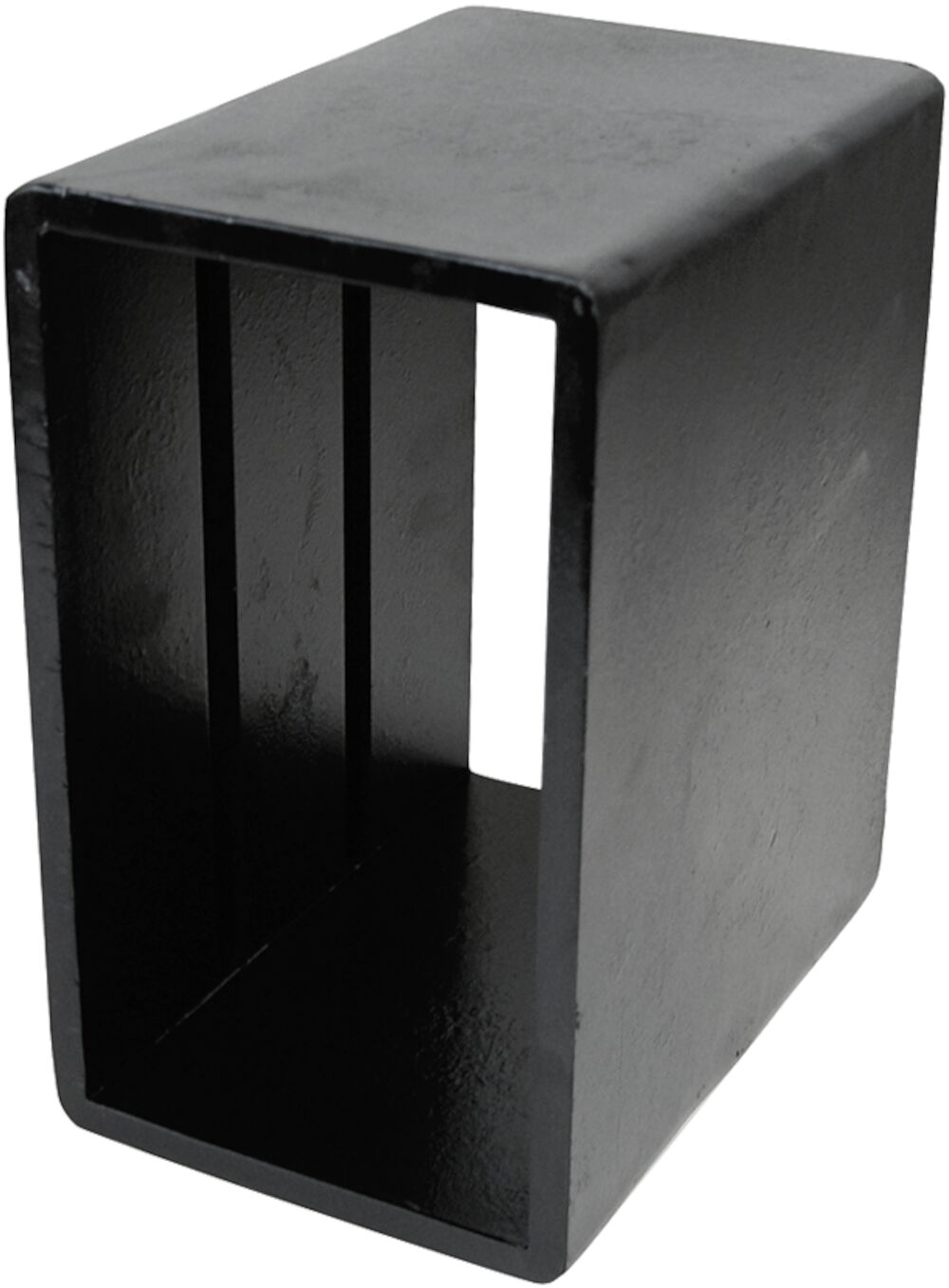

The Roxtec SBTB frame is a metal frame with two packing spaces behind each other (back-to-back). It is available in different materials.

To be used with corresponding Roxtec components to form a complete high fire demand sealing solution
Attachment by welding
Pressure test pipe available

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

SBTB 6x1 PRIMED

Art. No. 5S00000004391

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 200
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 10.5

Quote this article number

SBTB 6x2 PRIMED

Art. No. 5S00000004503

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 200
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 16.97

Quote this article number

SBTB 6x3 PRIMED

Art. No. 5S00000004393

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 200
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 22.3

Quote this article number

SBTB 6x1 AISI316

Art. No. 5SBT000002149

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 200
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 10.85

Quote this article number

SBTB 6x2 AISI316

Art. No. 5SBT000004538

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 200
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 16.9

Quote this article number

SBTB 6x3 AISI316

Art. No. 5SBTB00010248

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 200
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 22.8

Quote this article number

SBTB 6x1 ALU

Art. No. 105587

Aperture dimensions WxH (mm): 143(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 140.5 x 238 x 200
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 4

Quote this article number

SBTB 6x2 ALU

Art. No. 5SBT000007020

Aperture dimensions WxH (mm): 273(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 271 x 238 x 200
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 5.78

Quote this article number

SBTB 6x3 ALU

Art. No. 105588

Aperture dimensions WxH (mm): 404(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 401.5 x 238 x 200
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 7.85

Quote this article number

SBTB 2x1 PRIMED

Art. No. 5SBT000003961

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 200
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 6.95

Quote this article number

SBTB 2x2 PRIMED

Art. No. SBTB020000212

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 200
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 12.7

Quote this article number

SBTB 2x3 PRIMED

Art. No. SBTB020000312

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 200
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 17.7

Quote this article number

SBTB 2x4 PRIMED

Art. No. SBTB020000412

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 200
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 22.8

Quote this article number

SBTB 2x5 PRIMED

Art. No. 105568

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 200
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 27.3

Quote this article number

SBTB 2x6 PRIMED

Art. No. 105521

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 200
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 32.4

Quote this article number

SBTB 2+2x1 PRIMED

Art. No. 105560

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 200
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 11.7

Quote this article number

SBTB 2+2x2 PRIMED

Art. No. 105561

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 200
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 24

Quote this article number

SBTB 2+2x3 PRIMED

Art. No. 105562

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 200
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 34.2

Quote this article number

SBTB 2+2x4 PRIMED

Art. No. 105563

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 200
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 44.4

Quote this article number

SBTB 4x1 PRIMED

Art. No. 5S00000004392

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 200
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 8.93

Quote this article number

SBTB 4x2 PRIMED

Art. No. SBTB040000212

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 200
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 15.1

Quote this article number

SBTB 4x3 PRIMED

Art. No. SBTB040000312

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 200
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 20.7

Quote this article number

SBTB 4x4 PRIMED

Art. No. SBTB040000412

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 200
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 24.8

Quote this article number

SBTB 4x5 PRIMED

Art. No. SBTB040000512

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 200
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 31.9

Quote this article number

SBTB 4x6 PRIMED

Art. No. SBTB040000612

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 200
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 37.5

Quote this article number

SBTB 4x7 PRIMED

Art. No. 113648

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 200
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 44.1

Quote this article number

SBTB 4x8 PRIMED

Art. No. 113649

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 200
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 50.1

Quote this article number

SBTB 4x9 PRIMED

Art. No. 113650

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 200
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 56.1

Quote this article number

SBTB 4+4x1 PRIMED

Art. No. 5SBTB00013152

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 200
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 15

Quote this article number

SBTB 4+4x2 PRIMED

Art. No. 105565

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 200
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 31

Quote this article number

SBTB 4+4x3 PRIMED

Art. No. 105566

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 200
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 39.5

Quote this article number

SBTB 4+4x4 PRIMED

Art. No. 5S00000005648

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 200
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 49.6

Quote this article number

SBTB 4+4x5 PRIMED

Art. No. 105567

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 200
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 64.5

Quote this article number

SBTB 4+4x6 PRIMED

Art. No. 105529

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 200
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 76.5

Quote this article number

SBTB 6x4 PRIMED

Art. No. 5S00000004394

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 200
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 28.2

Quote this article number

SBTB 6x5 PRIMED

Art. No. 5S00000004528

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 200
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 38.11

Quote this article number

SBTB 6x6 PRIMED

Art. No. 5S00000004500

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 200
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 44.7

Quote this article number

SBTB 6x7 PRIMED

Art. No. 103932

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 200
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 46.5

Quote this article number

SBTB 6x8 PRIMED

Art. No. 104759

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 200
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 57.6

Quote this article number

SBTB 6x9 PRIMED

Art. No. 113671

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 200
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 64.2

Quote this article number

SBTB 6+6x1 PRIMED

Art. No. 5SBT000005681

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 200
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 19

Quote this article number

SBTB 6+6x2 PRIMED

Art. No. 5S00000004709

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 200
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 32.9

Quote this article number

SBTB 6+6x3 PRIMED

Art. No. 5S00000004707

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 200
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 44

Quote this article number

SBTB 6+6x4 PRIMED

Art. No. 5S00000004708

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 200
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 57

Quote this article number

SBTB 6+6x5 PRIMED

Art. No. 5S00000004501

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 200
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 63.75

Quote this article number

SBTB 6+6x6 PRIMED

Art. No. 5S00000004502

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 200
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 74.14

Quote this article number

SBTB 8x1 PRIMED

Art. No. SBTB080000112

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 200
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 13.2

Quote this article number

SBTB 8x2 PRIMED

Art. No. SBTB080000212

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 200
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 18.6

Quote this article number

SBTB 8x3 PRIMED

Art. No. SBTB080000312

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 200
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 24.77

Quote this article number

SBTB 8x4 PRIMED

Art. No. SBTB080000412

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 200
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 31.51

Quote this article number

SBTB 8x5 PRIMED

Art. No. 5SBT000008430

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 200
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 38.55

Quote this article number

SBTB 8x6 PRIMED

Art. No. 105525

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 200
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 44.4

Quote this article number

SBTB 8+8x1 PRIMED

Art. No. 5SBTB00011354

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 200
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 21.9

Quote this article number

SBTB 8+8x2 PRIMED

Art. No. 105569

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 200
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 41

Quote this article number

SBTB 8+8x3 PRIMED

Art. No. 105570

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 200
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 50

Quote this article number

SBTB 8+8x4 PRIMED

Art. No. 105572

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 200
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 63.6

Quote this article number

SBTB 2x1 AISI316

Art. No. 5SBTB00009304

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 200
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 7

Quote this article number

SBTB 2x2 AISI316

Art. No. 113709

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 200
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 12

Quote this article number

SBTB 2x3 AISI316

Art. No. 113710

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 200
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 17.43

Quote this article number

SBTB 2x4 AISI316

Art. No. 113711

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 200
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 22.58

Quote this article number

SBTB 2x5 AISI316

Art. No. 113712

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 200
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 27.73

Quote this article number

SBTB 2x6 AISI316

Art. No. 113713

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 200
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 32.4

Quote this article number

SBTB 2+2x1 AISI316

Art. No. 113718

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 200
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 11.67

Quote this article number

SBTB 2+2x2 AISI316

Art. No. 113719

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 200
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 16.27

Quote this article number

SBTB 2+2x3 AISI316

Art. No. 113720

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 200
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 34.88

Quote this article number

SBTB 2+2x4 AISI316

Art. No. 113721

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 200
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 45.15

Quote this article number

SBTB 4x1 AISI316

Art. No. 5SBT000004578

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 200
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 8.9

Quote this article number

SBTB 4x2 AISI316

Art. No. 5SBT000005711

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 200
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 14.7

Quote this article number

SBTB 4x3 AISI316

Art. No. 5SBTB00009582

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 200
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 19.57

Quote this article number

SBTB 4x4 AISI316

Art. No. 5SBT000005344

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 200
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 26

Quote this article number

SBTB 4x5 AISI316

Art. No. 113742

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 200
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 31.87

Quote this article number

SBTB 4x6 AISI316

Art. No. 113743

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 200
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 38.1

Quote this article number

SBTB 4x7 AISI316

Art. No. 113744

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 200
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 44.1

Quote this article number

SBTB 4x8 AISI316

Art. No. 113745

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 200
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 50.1

Quote this article number

SBTB 4x9 AISI316

Art. No. 113746

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 200
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 56.1

Quote this article number

SBTB 4+4x1 AISI316

Art. No. 5SBTB00009682

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 200
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 15.13

Quote this article number

SBTB 4+4x2 AISI316

Art. No. 113748

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 200
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 28.8

Quote this article number

SBTB 4+4x3 AISI316

Art. No. 113749

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 200
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 40.8

Quote this article number

SBTB 4+4x4 AISI316

Art. No. 5SBT000005329

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 200
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 52

Quote this article number

SBTB 4+4x5 AISI316

Art. No. 113750

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 200
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 63.68

Quote this article number

SBTB 4+4x6 AISI316

Art. No. 113751

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 200
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 75.09

Quote this article number

SBTB 6x4 AISI316

Art. No. 5SBTB00005994

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 200
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 29.46

Quote this article number

SBTB 6x5 AISI316

Art. No. 5SBT000004582

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 200
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 35.98

Quote this article number

SBTB 6x6 AISI316

Art. No. 5SBT000004542

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 200
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 42.25

Quote this article number

SBTB 6x7 AISI316

Art. No. 107819

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 200
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 48.52

Quote this article number

SBTB 6x8 AISI316

Art. No. 5SBTB00011958

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 200
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 57.6

Quote this article number

SBTB 6x9 AISI316

Art. No. 5SBT000004583

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 200
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 64.35

Quote this article number

SBTB 6+6x1 AISI316

Art. No. 106142

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 200
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 18

Quote this article number

SBTB 6+6x2 AISI316

Art. No. 106138

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 200
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 31

Quote this article number

SBTB 6+6x3 AISI316

Art. No. 106139

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 200
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 47.9

Quote this article number

SBTB 6+6x4 AISI316

Art. No. 5SBT000005343

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 200
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 60.41

Quote this article number

SBTB 6+6x5 AISI316

Art. No. 5SBT000005346

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 200
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 63.6

Quote this article number

SBTB 6+6x6 AISI316

Art. No. 5SBT000007931

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 200
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 87.9

Quote this article number

SBTB 8x1 AISI316

Art. No. 5SBT000005317

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 200
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 12.4

Quote this article number

SBTB 8x2 AISI316

Art. No. 110038

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 200
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 19

Quote this article number

SBTB 8x3 AISI316

Art. No. 5SBT000005710

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 200
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 26.49

Quote this article number

SBTB 8x4 AISI316

Art. No. 104758

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 200
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 33.34

Quote this article number

SBTB 8x5 AISI316

Art. No. 105959

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 200
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 40.2

Quote this article number

SBTB 8x6 AISI316

Art. No. 105960

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 200
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 47.04

Quote this article number

SBTB 8+8x1 AISI316

Art. No. 113797

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 200
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 25

Quote this article number

SBTB 8+8x2 AISI316

Art. No. 113798

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 200
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 43.5

Quote this article number

SBTB 8+8x3 AISI316

Art. No. 105962

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 200
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 52.98

Quote this article number

SBTB 8+8x4 AISI316

Art. No. 113799

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 200
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 69.3

Quote this article number

SBTB 2x1 ALU

Art. No. 5SBT000005696

Aperture dimensions WxH (mm): 143(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 140.5 x 121 x 200
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.45

Quote this article number

SBTB 2x2 ALU

Art. No. 105575

Aperture dimensions WxH (mm): 273(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 271 x 121 x 200
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 4.2

Quote this article number

SBTB 2x3 ALU

Art. No. 105579

Aperture dimensions WxH (mm): 404(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 401.5 x 121 x 200
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 5.9

Quote this article number

SBTB 2x4 ALU

Art. No. 105580

Aperture dimensions WxH (mm): 534(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 532 x 121 x 200
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 7.7

Quote this article number

SBTB 2x5 ALU

Art. No. 105581

Aperture dimensions WxH (mm): 665(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 662.5 x 121 x 200
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 9.4

Quote this article number

SBTB 2x6 ALU

Art. No. 105522

Aperture dimensions WxH (mm): 795(+1/-1) x 123(+1/-1)
External dimensions WxHxD (mm): 793 x 121 x 200
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.2

Quote this article number

SBTB 2+2x1 ALU

Art. No. 105596

Aperture dimensions WxH (mm): 143(+1/-1) x 234(+1/-1)
External dimensions WxHxD (mm): 140.5 x 232 x 200
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 4.1

Quote this article number

SBTB 2+2x2 ALU

Art. No. 105597

Aperture dimensions WxH (mm): 273(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 271 x 242 x 200
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 8.3

Quote this article number

SBTB 2+2x3 ALU

Art. No. 105598

Aperture dimensions WxH (mm): 404(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 401.5 x 242 x 200
Frame openings: 6
Packing space (mm): 120 x 60
Weight (kg): 11.8

Quote this article number

SBTB 2+2x4 ALU

Art. No. 105599

Aperture dimensions WxH (mm): 534(+1/-1) x 244(+1/-1)
External dimensions WxHxD (mm): 532 x 242 x 200
Frame openings: 8
Packing space (mm): 120 x 60
Weight (kg): 15.3

Quote this article number

SBTB 4x1 ALU

Art. No. 105582

Aperture dimensions WxH (mm): 143(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 140.5 x 179.5 x 200
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 3

Quote this article number

SBTB 4x2 ALU

Art. No. 105583

Aperture dimensions WxH (mm): 273(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 271 x 179.5 x 200
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 5.5

Quote this article number

SBTB 4x3 ALU

Art. No. 105584

Aperture dimensions WxH (mm): 404(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 401.5 x 179.5 x 200
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 7

Quote this article number

SBTB 4x4 ALU

Art. No. 105585

Aperture dimensions WxH (mm): 534(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 532 x 179.5 x 200
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.1

Quote this article number

SBTB 4x5 ALU

Art. No. 105586

Aperture dimensions WxH (mm): 665(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 662.5 x 179.5 x 200
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 11.1

Quote this article number

SBTB 4x6 ALU

Art. No. 105523

Aperture dimensions WxH (mm): 795(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 793 x 179.5 x 200
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 13.1

Quote this article number

SBTB 4x7 ALU

Art. No. 170246

Aperture dimensions WxH (mm): 926(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 923.5 x 179.5 x 200
Frame openings: 7
Packing space (mm): 120 x 120
Weight (kg): 15.2

Quote this article number

SBTB 4x8 ALU

Art. No. 170247

Aperture dimensions WxH (mm): 1056(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1054 x 179.5 x 200
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 17.2

Quote this article number

SBTB 4x9 ALU

Art. No. 170248

Aperture dimensions WxH (mm): 1187(+1/-1) x 182(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 179.5 x 200
Frame openings: 9
Packing space (mm): 120 x 120
Weight (kg): 19.3

Quote this article number

SBTB 4+4x1 ALU

Art. No. 105602

Aperture dimensions WxH (mm): 143(+1/-1) x 351(+1/-1)
External dimensions WxHxD (mm): 140.5 x 349 x 200
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 5.2

Quote this article number

SBTB 4+4x2 ALU

Art. No. 105603

Aperture dimensions WxH (mm): 273(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 271 x 359 x 200
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 9.9

Quote this article number

SBTB 4+4x3 ALU

Art. No. 105604

Aperture dimensions WxH (mm): 404(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 401.5 x 359 x 200
Frame openings: 6
Packing space (mm): 120 x 120
Weight (kg): 14

Quote this article number

SBTB 4+4x4 ALU

Art. No. 105605

Aperture dimensions WxH (mm): 534(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 532 x 359 x 200
Frame openings: 8
Packing space (mm): 120 x 120
Weight (kg): 18.1

Quote this article number

SBTB 4+4x5 ALU

Art. No. 105606

Aperture dimensions WxH (mm): 665(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 662.5 x 359 x 200
Frame openings: 10
Packing space (mm): 120 x 120
Weight (kg): 22.2

Quote this article number

SBTB 4+4x6 ALU

Art. No. 105530

Aperture dimensions WxH (mm): 795(+1/-1) x 361(+1/-1)
External dimensions WxHxD (mm): 793 x 359 x 200
Frame openings: 12
Packing space (mm): 120 x 120
Weight (kg): 26.3

Quote this article number

SBTB 6x4 ALU

Art. No. 105589

Aperture dimensions WxH (mm): 534(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 532 x 238 x 200
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 10.4

Quote this article number

SBTB 6x5 ALU

Art. No. 105590

Aperture dimensions WxH (mm): 665(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 662.5 x 238 x 200
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 12.8

Quote this article number

SBTB 6x6 ALU

Art. No. 105524

Aperture dimensions WxH (mm): 795(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 793 x 238 x 200
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 15.2

Quote this article number

SBTB 6x7 ALU

Art. No. 170274

Aperture dimensions WxH (mm): 926(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 923.5 x 238 x 200
Frame openings: 7
Packing space (mm): 120 x 180
Weight (kg): 17.4

Quote this article number

SBTB 6x8 ALU

Art. No. 170275

Aperture dimensions WxH (mm): 1056(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1054 x 238 x 200
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 19.8

Quote this article number

SBTB 6x9 ALU

Art. No. 170276

Aperture dimensions WxH (mm): 1187(+1/-1) x 240(+1/-1)
External dimensions WxHxD (mm): 1184.5 x 238 x 200
Frame openings: 9
Packing space (mm): 120 x 180
Weight (kg): 22.1

Quote this article number

SBTB 6+6x1 ALU

Art. No. 105607

Aperture dimensions WxH (mm): 143(+1/-1) x 468(+1/-1)
External dimensions WxHxD (mm): 140.5 x 466 x 200
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 6.3

Quote this article number

SBTB 6+6x2 ALU

Art. No. 105608

Aperture dimensions WxH (mm): 273(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 271 x 476 x 200
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11.7

Quote this article number

SBTB 6+6x3 ALU

Art. No. 105609

Aperture dimensions WxH (mm): 404(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 401.5 x 476 x 200
Frame openings: 6
Packing space (mm): 120 x 180
Weight (kg): 16.3

Quote this article number

SBTB 6+6x4 ALU

Art. No. 105610

Aperture dimensions WxH (mm): 534(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 532 x 476 x 200
Frame openings: 8
Packing space (mm): 120 x 180
Weight (kg): 20.9

Quote this article number

SBTB 6+6x5 ALU

Art. No. 105611

Aperture dimensions WxH (mm): 665(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 662.5 x 476 x 200
Frame openings: 10
Packing space (mm): 120 x 180
Weight (kg): 25.6

Quote this article number

SBTB 6+6x6 ALU

Art. No. 105531

Aperture dimensions WxH (mm): 795(+1/-1) x 478(+1/-1)
External dimensions WxHxD (mm): 793 x 476 x 200
Frame openings: 12
Packing space (mm): 120 x 180
Weight (kg): 30.2

Quote this article number

SBTB 8x1 ALU

Art. No. 105591

Aperture dimensions WxH (mm): 143(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 140.5 x 298 x 200
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 4.5

Quote this article number

SBTB 8x2 ALU

Art. No. 105592

Aperture dimensions WxH (mm): 273(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 271 x 298 x 200
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.7

Quote this article number

SBTB 8x3 ALU

Art. No. 105593

Aperture dimensions WxH (mm): 404(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 401.5 x 298 x 200
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 9.3

Quote this article number

SBTB 8x4 ALU

Art. No. 105594

Aperture dimensions WxH (mm): 534(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 532 x 298 x 200
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12

Quote this article number

SBTB 8x5 ALU

Art. No. 105595

Aperture dimensions WxH (mm): 665(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 662.5 x 298 x 200
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 14.6

Quote this article number

SBTB 8x6 ALU

Art. No. 105526

Aperture dimensions WxH (mm): 795(+1/-1) x 300(+1/-1)
External dimensions WxHxD (mm): 793 x 298 x 200
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 17.1

Quote this article number

SBTB 8+8x1 ALU

Art. No. 105612

Aperture dimensions WxH (mm): 143(+1/-1) x 588(+1/-1)
External dimensions WxHxD (mm): 140.5 x 586 x 200
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 7.51

Quote this article number

SBTB 8+8x2 ALU

Art. No. 105613

Aperture dimensions WxH (mm): 273(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 271 x 596 x 200
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 13.4

Quote this article number

SBTB 8+8x3 ALU

Art. No. 105614

Aperture dimensions WxH (mm): 404(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 401.5 x 596 x 200
Frame openings: 6
Packing space (mm): 120 x 240
Weight (kg): 18.6

Quote this article number

SBTB 8+8x4 ALU

Art. No. 105615

Aperture dimensions WxH (mm): 534(+1/-1) x 598(+1/-1)
External dimensions WxHxD (mm): 532 x 596 x 200
Frame openings: 8
Packing space (mm): 120 x 240
Weight (kg): 23.8

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

APERTURE DIMENSIONS S SERIES (en) pdf (manufacturer document)
RECTANGULAR RM SYSTEMS (en) pdf (manufacturer document)
S1005766 SBTB FRAME (M) + COMBINATION FRAME PDF (manufacturer document)
S1005767 SBTB FRAME (M) COMBINATION FRAME PDF (manufacturer document)
S1005768 SBTB FRAME (M) + SINGLE FRAME PDF (manufacturer document)
S1005769 SBTB FRAME (M) SINGLE FRAME PDF (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	04558/H1 BV	No renewal status stated
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
BV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Marine	—	15027/E0 BV	No renewal status stated
USCG	H class fire	Steel	Armored Marine	—	164.140/10/0	Source states: under renewal
USCG	H class fire	Steel	Marine	—	164.140/9/0	No renewal status stated
IRS	A class fire	Steel	Marine	Bundle Copper Fiberglass Steel	2022TAC104	No renewal status stated
ABS	Gas tightness (catastrophic) Jet Fire Water tightness (catastrophic)	Steel	Armored Marine	Steel	21-2055299-1-PDA	No renewal status stated
ABS	Gas tightness (catastrophic) Jet Fire Water tightness (catastrophic)	Stainless steel Steel	Armored Marine	Steel	21-2055299-1-PDA-DUP	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel Titanium	24-0023682-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel Titanium	24-0023682-PDA-DUP	No renewal status stated
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Bundle Steel Titanium	24-0131674-1-PDA	No renewal status stated
ABS	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Bundle Steel Titanium	24-0131674-1-PDA-DUP	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Fiber Marine Shielded	—	24-2397982-1-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	Bundle Copper Steel Titanium	25-0155736-PDA	No renewal status stated
ABS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	Bundle Copper Steel Titanium	25-0155736-PDA-DUP	No renewal status stated
BV	Blastload Jet Fire	Steel	Armored Marine	Steel	40893/C1 BV	No renewal status stated
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	41353/C0 BV	Source states: under renewal
BV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel HDPE Other PB PE Plastic PP PVC PVDF Steel Titanium	63792/B0 BV	No renewal status stated
QinetiQ	A class fire Blastload Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Marine	—	AS&P/BCC/30/13/002	Source states: under renewal
KRS	A class fire	Steel	Marine	—	CPH04189-FP004	Source states: under renewal
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Marine	—	GB23PTB00036_01	No renewal status stated
CCS	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel	GB23PTB00036_02	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	—	Bundle Copper Copper-Nickel Steel Titanium	LR25103712SF-1	No renewal status stated
LR	Jet Fire	Steel	—	—	LR25303961SF	Source states: under renewal
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	MEDB0000130	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	Armored Marine	—	MEDB00001Y7	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Bundle Copper Steel Titanium	MEDB00005J9	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	ABS Bundle Copper Copper-Nickel PB PE Plastic PP Steel Titanium	MEDB00006JA	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	Marine	—	MERB0000130	No renewal status stated
DNV	A class fire	Steel	Fiber Marine	—	MERB00001Y7	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium	—	Bundle Copper Copper-Nickel Steel Titanium	MERB00005J9	No renewal status stated
DNV	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Steel	—	Bundle Copper Copper-Nickel Steel	MERB00006JA	No renewal status stated
LR	A class fire Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	Fiber Marine Other	—	SAS F150098-M3-10	No renewal status stated
DNV	Gas tightness (catastrophic) Water tightness (catastrophic)	Aluminium Steel	All	Aluminium Copper Copper-Nickel Plastic Steel	TAE000000U	No renewal status stated
DNV	Gas tightness (catastrophic) H class fire Water tightness (catastrophic)	Steel	Armored Marine	Steel	TAF00000DW	No renewal status stated
DNV	Jet Fire	Steel	Armored Marine Shielded	Steel	TAF00000UG	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

Walls and floors
Bulkheads and decks
Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
