KFO 6x1
Art. No. KFO0000060059
- Aperture dimensions WxH (mm)
- 123(+0.5/-0.5) x 223(+0.5/-0.5)
- External dimensions WxHxD (mm)
- 159 x 260 x 52
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 1
Roxtec rectangular frames

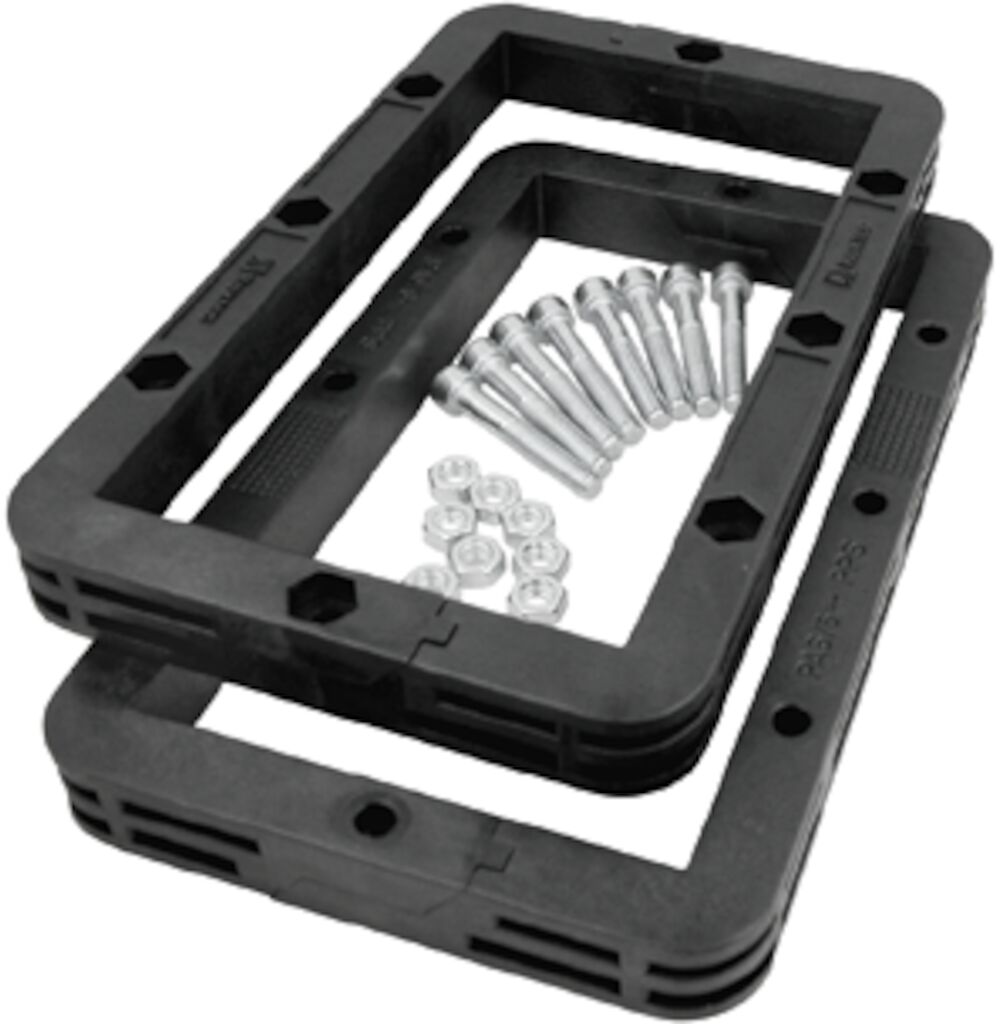

Roxtec KFO frame
Roxtec rectangular frames · Roxtec
The Roxtec KFO is a light-weight composite frame in size 6x1. The frame is openable for easy installation around existing cables and pipes.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by bolting
- Available with or without flange
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
KFO 6x1 WITH FLANGE
Art. No. KFO1000060059
- Aperture dimensions WxH (mm)
- 170(+2/-2) x 270(+2/-2)
- External dimensions WxHxD (mm)
- 319 x 420 x 59
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 1.6
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- KFO (en) pdf (manufacturer document)
- KFO 6x1 WITH FLANGE (en) pdf (manufacturer document)
- S1005726 KFO 6x1 PDF (manufacturer document)
- S1005809 KFO 6x1 WITH FLANGE PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
