GOH 2x1 FL100 GALV
Art. No. 124009
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 128(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 313 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 7
Roxtec rectangular frames

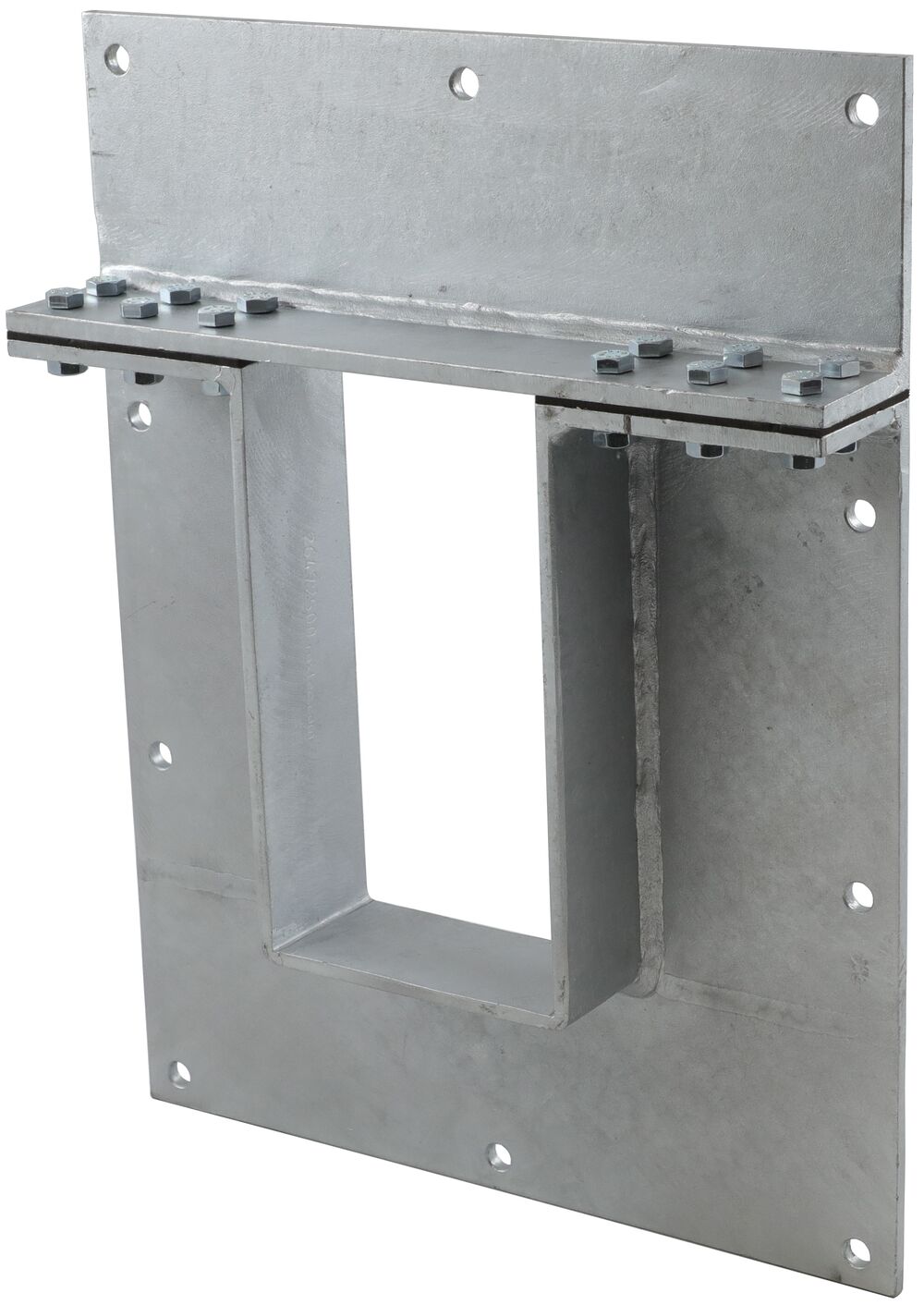

Roxtec GOH FL100 frame
Roxtec rectangular frames · Roxtec
The Roxtec GOH FL100 frame is openable and has a wide flange to comply with minimum edge distance between bolt hole and aperture opening. It is an excellent alternative for installations where cables are already routed.
- Ideal for bolting to concrete structures.
- To be used with corresponding Roxtec components to form a complete sealing solution.
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
GOH 2x2 FL100 GALV
Art. No. 250893
- Aperture dimensions WxH (mm)
- 280(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 465 x 313 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 9.6
GOH 2x3 FL100 GALV
Art. No. 250894
- Aperture dimensions WxH (mm)
- 413(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 597.5 x 313 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 12.2
GOH 2x4 FL100 GALV
Art. No. 179978
- Aperture dimensions WxH (mm)
- 545(+75/-5) x 128(+75/-5)
- External dimensions WxHxD (mm)
- 730 x 313 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 15
GOH 4x1 FL100 GALV
Art. No. 107250
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 371.5 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 8.1
GOH 4x2 FL100 GALV
Art. No. 121490
- Aperture dimensions WxH (mm)
- 280(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 465 x 371.5 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 11
GOH 4x3 FL100 GALV
Art. No. 192221
- Aperture dimensions WxH (mm)
- 412.5(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 597.5 x 371.5 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 13.5
GOH 4x4 FL100 GALV
Art. No. 121489
- Aperture dimensions WxH (mm)
- 545(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 730 x 371.5 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 18
GOH 6x1 FL100 GALV
Art. No. 179403
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 430 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 7.36
GOH 6x2 FL100 GALV
Art. No. 179416
- Aperture dimensions WxH (mm)
- 280(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 465 x 430 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 12
GOH 6x3 FL100 GALV
Art. No. 179976
- Aperture dimensions WxH (mm)
- 412.5(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 597.5 x 430 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 15
GOH 6x4 FL100 GALV
Art. No. 119419
- Aperture dimensions WxH (mm)
- 545(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 730 x 430 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 18
GOH 8x1 FL100 GALV
Art. No. 151629
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 490 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 9
GOH 8x2 FL100 GALV
Art. No. 150141
- Aperture dimensions WxH (mm)
- 280(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 465 x 490 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 13
GOH 8x3 FL100 GALV
Art. No. 155328
- Aperture dimensions WxH (mm)
- 412.5(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 597.5 x 490 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 17
GOH 8x4 FL100 GALV
Art. No. 121488
- Aperture dimensions WxH (mm)
- 545(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 730 x 490 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 20.3
GOH 2x1 FL100 AISI316
Art. No. 214791
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 128(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 313 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 7
GOH 2x2 FL100 AISI316
Art. No. 250896
- Aperture dimensions WxH (mm)
- 280(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 465 x 313 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 9.6
GOH 2x3 FL100 AISI316
Art. No. 250897
- Aperture dimensions WxH (mm)
- 413(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 597.5 x 313 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 12.2
GOH 2x4 FL100 AISI316
Art. No. 250898
- Aperture dimensions WxH (mm)
- 545(+5/-5) x 128(+5/-5)
- External dimensions WxHxD (mm)
- 730 x 313 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 60
- Weight (kg)
- 14.9
GOH 4x1 FL100 AISI316
Art. No. 152890
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 371.5 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 7.63
GOH 4x2 FL100 AISI316
Art. No. 215709
- Aperture dimensions WxH (mm)
- 280(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 465 x 371.5 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 10.83
GOH 4x3 FL100 AISI316
Art. No. 215812
- Aperture dimensions WxH (mm)
- 412.5(+75/-5) x 186.5(+75/-5)
- External dimensions WxHxD (mm)
- 597.5 x 371.5 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 14
GOH 4x4 FL100 AISI316
Art. No. 227620
- Aperture dimensions WxH (mm)
- 545(+5/-5) x 187(+5/-5)
- External dimensions WxHxD (mm)
- 730 x 371.5 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 120
- Weight (kg)
- 16.8
GOH 6x1 FL100 AISI316
Art. No. 157979
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 430 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 8.6
GOH 6x2 FL100 AISI316
Art. No. 164359
- Aperture dimensions WxH (mm)
- 280(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 465 x 430 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 11.7
GOH 6x3 FL100 AISI316
Art. No. 157824
- Aperture dimensions WxH (mm)
- 412.5(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 597.5 x 430 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 14.4
GOH 6x4 FL100 AISI316
Art. No. 125356
- Aperture dimensions WxH (mm)
- 545(+75/-5) x 245(+75/-5)
- External dimensions WxHxD (mm)
- 730 x 430 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 18.3
GOH 8x1 FL100 AISI316
Art. No. 179208
- Aperture dimensions WxH (mm)
- 147.5(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 332.5 x 490 x 60
- Frame openings
- 1
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 10
GOH 8x2 FL100 AISI316
Art. No. 110472
- Aperture dimensions WxH (mm)
- 280(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 465 x 490 x 60
- Frame openings
- 2
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 13.35
GOH 8x3 FL100 AISI316
Art. No. 104111
- Aperture dimensions WxH (mm)
- 412.5(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 597.5 x 490 x 60
- Frame openings
- 3
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 15.97
GOH 8x4 FL100 AISI316
Art. No. 173441
- Aperture dimensions WxH (mm)
- 545(+75/-5) x 305(+75/-5)
- External dimensions WxHxD (mm)
- 730 x 490 x 60
- Frame openings
- 4
- Packing space (mm)
- 120 x 240
- Weight (kg)
- 19.4
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| RISE | E fire EI fire | Brickwork Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete Sandwich | Construction Other Telecom | ABS Copper PE Plastic PVC Steel | 0402-CPR-SC1479-11 (ETA-11/0313) | No renewal status stated |
| Roxtec International AB | E fire EI fire | Brickwork Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete Sandwich | Construction Telecom | ABS Copper PE Plastic PVC Steel | CE Declaration of Conformity (ETA-11/0313) | No renewal status stated |
| Roxtec International AB | E fire EI fire | Brickwork Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete Sandwich | Construction Other Telecom | ABS Copper PE Plastic PVC Steel | CE Declaration of Performance (DoP) ETA 11/0313 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
