FLAMEPLUS 6x1 WITH EXT. FRAME
Art. No. 223805
- Aperture dimensions WxH (mm)
- 196(+5/-0) x 297(+5/-0)
- External dimensions WxHxD (mm)
- 331 x 433 x 310
- Frame openings
- 1
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 5.6
Roxtec rectangular frames

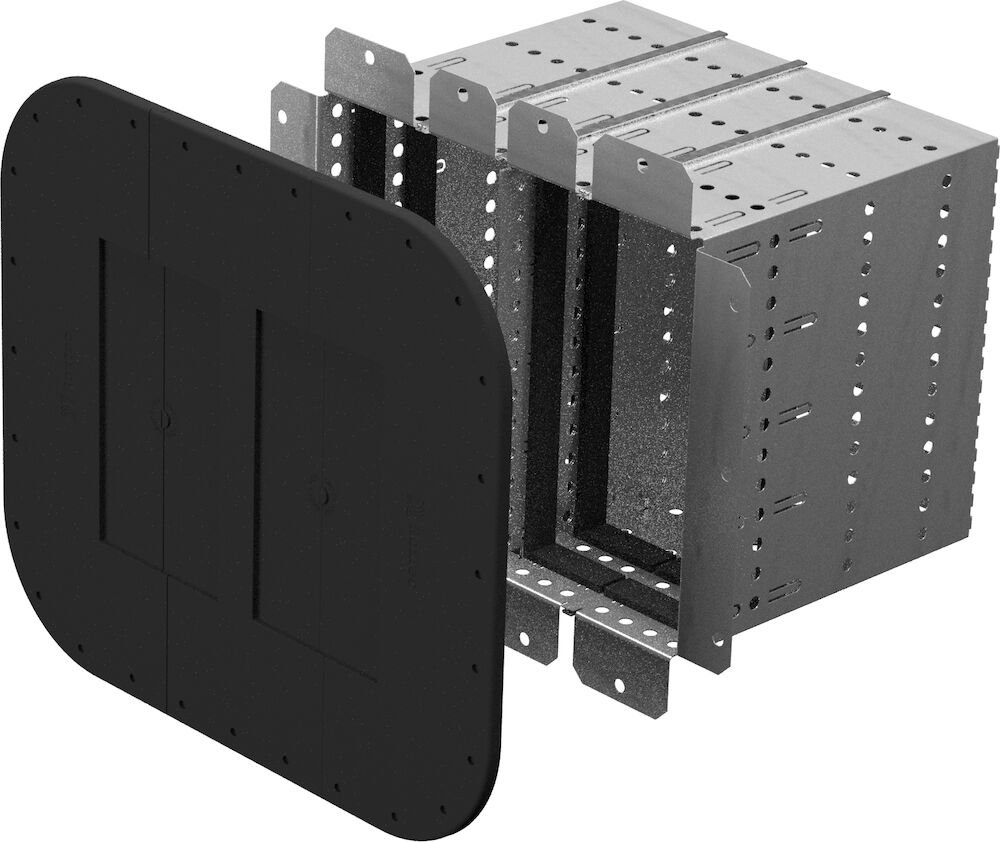

Roxtec FlamePlus™ frame with extension
Roxtec rectangular frames · Roxtec
The Roxtec FlamePlus™ frame complemented with an extension frame to be attached on the opposite side of the wall aperture is the choice when traditional mineral wool cable protection insulation is not permitted or unwanted. The extension is made from aluzink coated sheet metal and includes intumescent material that expands when exposed to fire. Both frames are made in a modular design to simplify logistics and makes it possible to install around existing cables.
- Ideal when exposed mineral wool cable insulation is not permitted
- Modular design
- Attachment by bolting
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
FLAMEPLUS 6x2 WITH EXT. FRAME
Art. No. 223806
- Aperture dimensions WxH (mm)
- 351(+5/-0) x 297(+5/-0)
- External dimensions WxHxD (mm)
- 487 x 433 x 310
- Frame openings
- 2
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 8.41
FLAMEPLUS 6x3 WITH EXT. FRAME
Art. No. 223807
- Aperture dimensions WxH (mm)
- 507(+5/-0) x 297(+5/-0)
- External dimensions WxHxD (mm)
- 642 x 433 x 310
- Frame openings
- 3
- Packing space (mm)
- 120 x 180
- Weight (kg)
- 11.4
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- FLAMEPLUS EXTENSION FRAME (en) pdf (manufacturer document)
- S1584743 FLAMEPLUS WITH EXT. FRAME PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| RISE | E fire EI fire | Concrete or Brickwork Lightweight concrete Sandwich | Construction Telecom | — | 0402-CPR- C500590 | No renewal status stated |
| Roxtec International AB | — | Concrete Lightweight concrete Sandwich | Construction | — | 20260324-252341 RIR1.2 | No renewal status stated |
| Roxtec International AB | E fire EI fire | Concrete or Brickwork Lightweight concrete Sandwich | Construction Telecom | — | CE Declaration of Conformity (ETA-25/0077) | No renewal status stated |
| Roxtec International AB | E fire EI fire | Concrete or Brickwork Lightweight concrete Sandwich | Construction Telecom | — | CE Declaration of Performance (DoP) ETA-25/0077 | No renewal status stated |
| ETA - Danmark | E fire EI fire | Concrete or Brickwork Lightweight concrete Sandwich | Construction Telecom | — | ETA-25/0077 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
