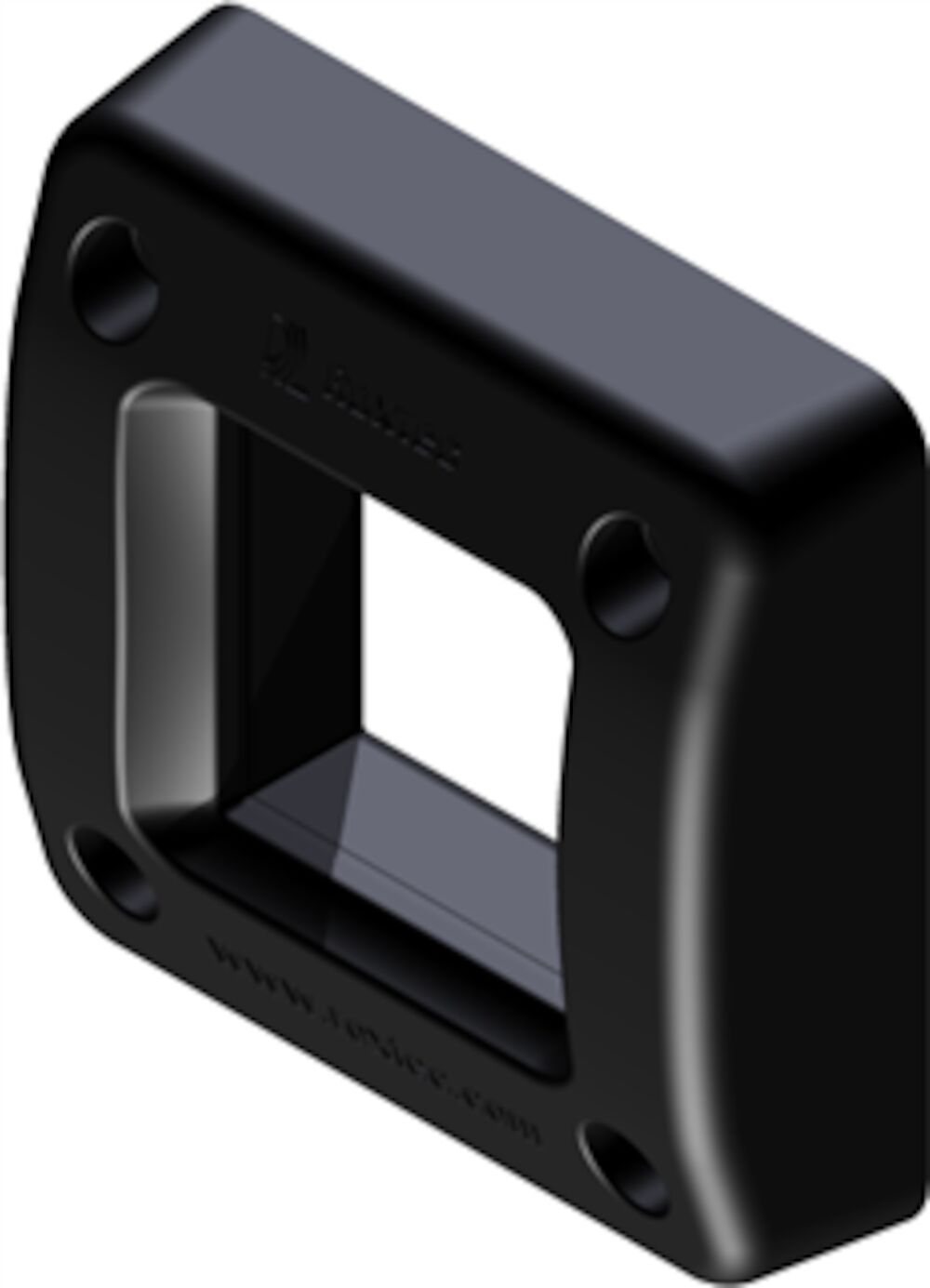

Roxtec EzEntry™ 4 mini frame representative product image
Representative product image. Size or configuration can vary.

Roxtec

Roxtec EzEntry™ 4 mini frame

Roxtec rectangular frames · Product details and source-listed options

Roxtec EzEntry™ 4 mini frame simplifies cable sealing in cabinets and enclosures. The light-weight composite frame is made for single-sided installations and allows the use of pre-terminated cables.

  • Allows pre-terminated cables
  • Available with stainless steel fasteners upon request to meet requirements in aggressive corrosive environments
  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Available in complete kits

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

Listed 1 article option

EZENTRY 4 MINI FRAME ASSEMBLY

Art. No. EZ00044000000

Aperture dimensions WxH (mm)
37(+0/-1) x 42(+0/-2)
External dimensions WxHxD (mm)
76 x 76 x 24
Frame openings
1
Packing space (mm)
40 x 40
Weight (kg)
0.08
Quote this article number

Reference documents

These links open manufacturer-hosted reference files. Check each source document revision before use.

manufacturer document (3)

Product sources

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.

Typical applications:

  • Walls and floors
  • Bulkheads and decks
  • Cabinets and enclosures

Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
