CF 8
Art. No. CSF0000080035
- Aperture dimensions WxH (mm)
- 61(+1/-1) x 127(+1/-1)
- External dimensions WxHxD (mm)
- 75 x 140 x 60
- Frame openings
- 1
- Packing space (mm)
- 40 x 80
- Weight (kg)
- 0.55
Roxtec rectangular frames

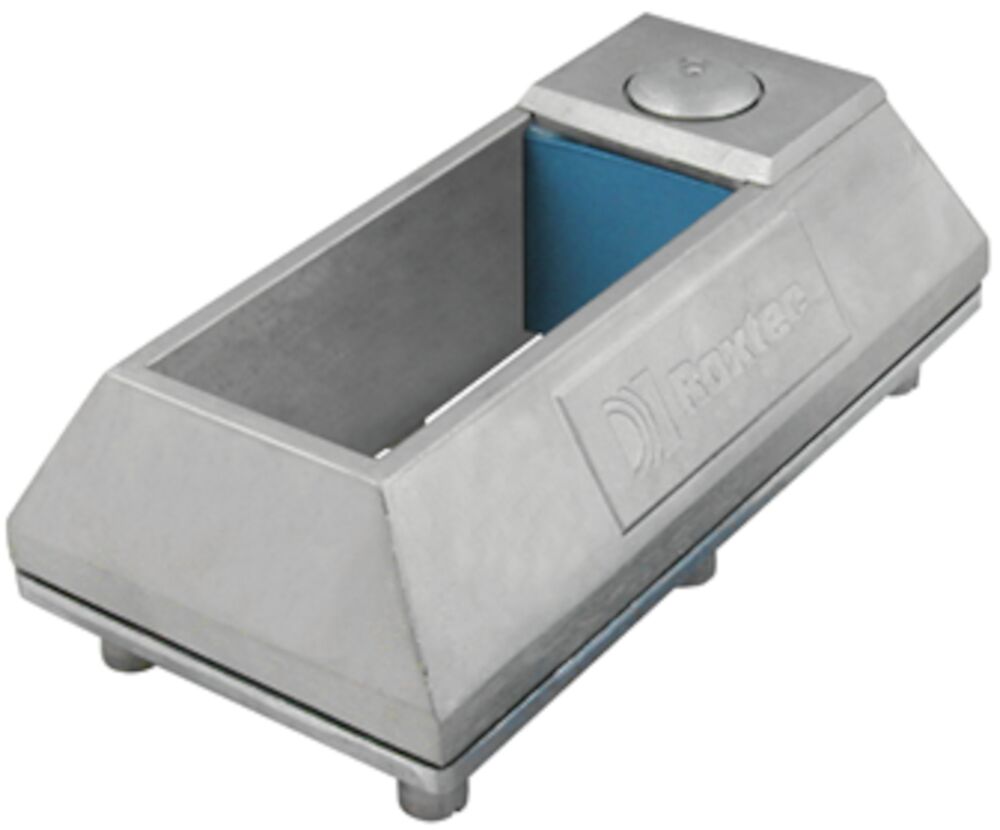

Roxtec CF 8/32 frame
Roxtec rectangular frames · Roxtec
The Roxtec CF 8 and CF 32 entry seal frames are made from cast aluminum. The compression unit is integrated in the frame.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by bolting
- Available as complete kits
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
CF 32
Art. No. CSF0000320035
- Aperture dimensions WxH (mm)
- 110(+1/-1) x 216(+1/-1)
- External dimensions WxHxD (mm)
- 130 x 230 x 60
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.4
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- CF 8, CF 32 (en) pdf (manufacturer document)
- S1002207 CF 32 APERTURE DIM PDF (manufacturer document)
- S1005777 CF 8 ASSEMBLY PDF (manufacturer document)
- S1005783 CF 32 ASSEMBLY PDF (manufacturer document)
- S1005919 CF 8 APERTURE DIM PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
| Underwriters Laboratories Inc. | UL/NEMA tightness | — | — | — | E209828 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
