CF 8 Ex
Art. No. EXCSF0000080035
- Aperture dimensions WxH (mm)
- 61(+0.5/-0.5) x 127(+0.5/-0.5)
- External dimensions WxHxD (mm)
- 75 x 140 x 60
- Frame openings
- 1
- Packing space (mm)
- 40 x 80
- Weight (kg)
- 0.44
Roxtec rectangular frames

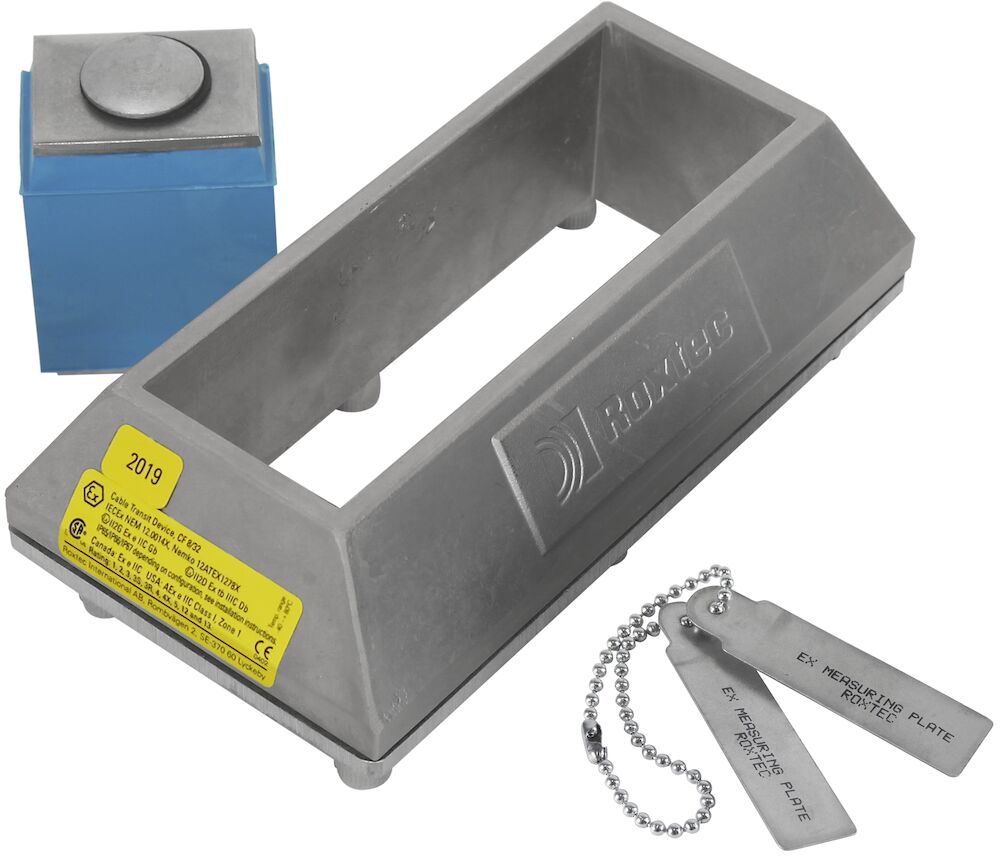

Roxtec CF 8/32 Ex frame
Roxtec rectangular frames · Roxtec
The Roxtec CF 8 Ex and CF 32 Ex are cast aluminum frames suitable for compact installations in cabinets. The compression unit is integrated in the frame. The CF 8 Ex solution can accommodate up to 15 cables and the CF 32 Ex up to 60 cables. The frames are approved for use in potentially explosive atmospheres and hazardous locations.
- To be used with corresponding Roxtec components to form a complete sealing solution
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
CF 32 Ex
Art. No. EXCSF0000320035
- Aperture dimensions WxH (mm)
- 110(+0.5/-0.5) x 216(+0.5/-0.5)
- External dimensions WxHxD (mm)
- 130 x 230 x 60
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.18
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- CF 8/32 Ex (en) pdf (manufacturer document)
- S1016540 CF 32 EX ASSEMBLY pdf (manufacturer document)
- S1016542 CF 8 EX ASSEMBLY pdf (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| KTL Korea Testing Laboratory | Ex | — | Other | Conduit | 15-KA4BO-0256X | No renewal status stated |
| CSA | Ex | — | Armored Other | Conduit | 2254189 | No renewal status stated |
| SGS | Ex | — | Armored Other | Conduit | 25-08-162752/E25-08-169410/NB0002 | No renewal status stated |
| LLC SERTIS-CENTER | Ex | — | Other | Conduit | CII 23.0812 X | No renewal status stated |
| CSA | Ex | — | Armored Other | Conduit | CSAE 23UKEX1066X | No renewal status stated |
| Roxtec International AB | Ex | — | — | — | DoC RM and HD Ex | No renewal status stated |
| Nemko | Ex | — | Other | — | IECEx NEM 120014X | No renewal status stated |
| NCC | Ex | — | Other | Conduit | NCC 11.0174 X | No renewal status stated |
| Nemko | Ex | — | — | — | Nemko 12ATEX1278X | No renewal status stated |
| RISE | Ex | — | — | — | RISE25ATEX0001 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
