CF 8 BG
Art. No. 103465
- Aperture dimensions WxH (mm)
- 61(+1/-1) x 127(+1/-1)
- External dimensions WxHxD (mm)
- 75 x 140 x 75
- Frame openings
- 1
- Packing space (mm)
- 40 x 80
- Weight (kg)
- 0.64
Roxtec

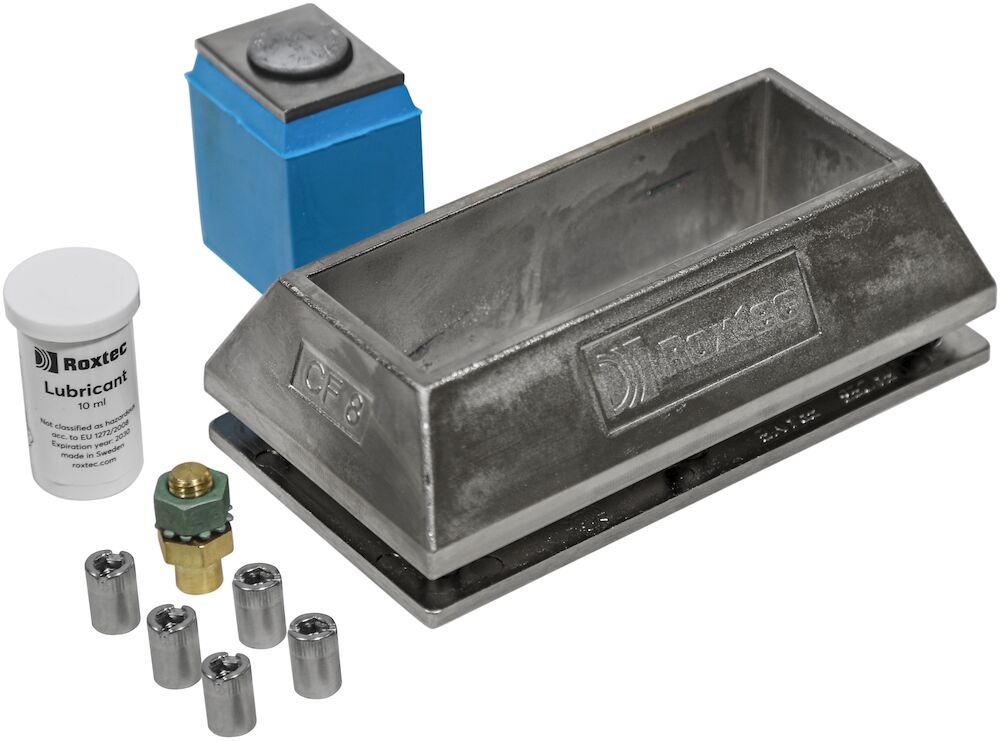

Roxtec CF 8/32 BG™ frame
The Roxtec CF 8/32 BG™ frames of cast aluminum with nickel plating ensure electrical conductivity. A frame can handle multiple pre-terminated cables/pipes in one opening.
- To be used with corresponding Roxtec components to form a complete sealing solution
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
Listed 2 article options
CF 32 BG
Art. No. 102826
- Aperture dimensions WxH (mm)
- 110(+1/-1) x 216(+1/-1)
- External dimensions WxHxD (mm)
- 130 x 230 x 75
- Frame openings
- 2
- Packing space (mm)
- 40 x 160
- Weight (kg)
- 1.63
Reference documents
These links open manufacturer-hosted reference files. Check each source document revision before use.
installation instruction (1)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
Listed 1 certificate
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| Roxtec International AB | — | — | — | — | Declaration of conformity Compact | No renewal status stated |
Product sources
- Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
