B LONGSIDE SIZE 2 GALV
Art. No. BLS0000020015
- External dimensions WxHxD (mm)
- 40 x 181 x 60
- Weight (kg)
- 0.8
Roxtec rectangular frames
Roxtec B frame
Roxtec rectangular frames · Roxtec

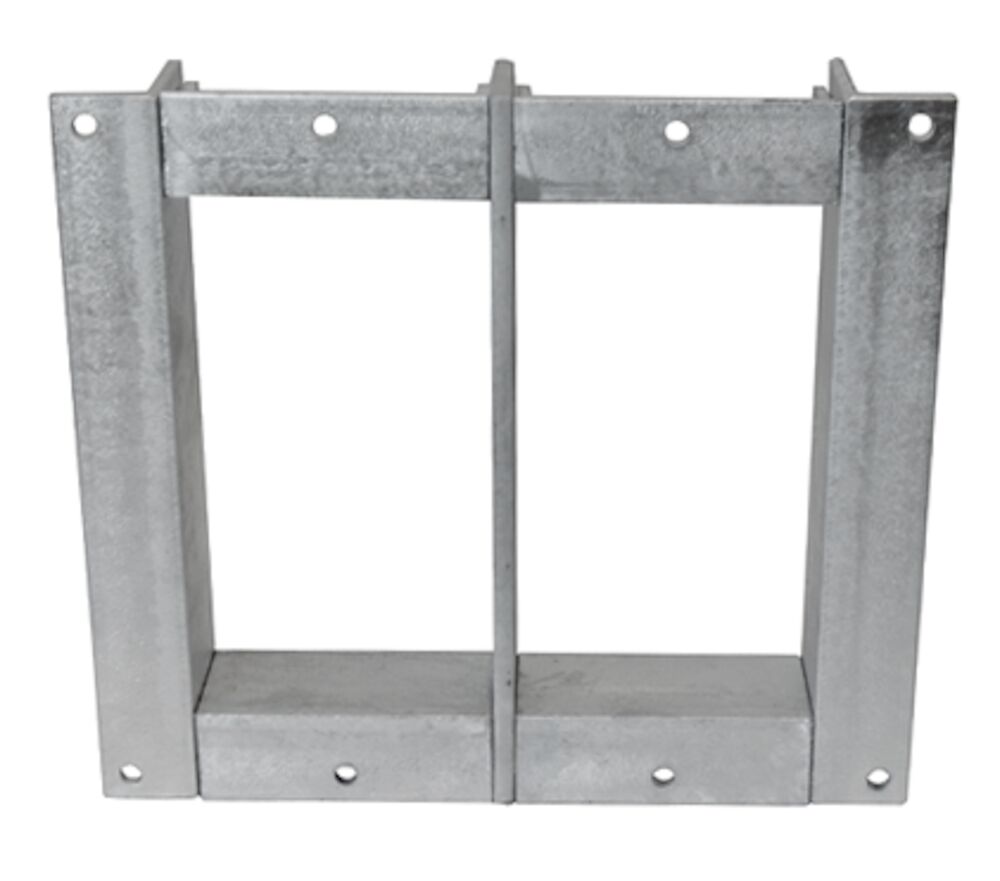

The Roxtec B frame is a metal frame with a small flange made for casting into the structure. It is assembled into different sizes and combinations. It can also be installed around existing cables and pipes.
- Attachment by casting or bolting
- Casting mold accessory available
- To be used with corresponding Roxtec components to form a complete sealing solution
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
B LONGSIDE SIZE 4 GALV
Art. No. BLS0000040015
- External dimensions WxHxD (mm)
- 40 x 239.5 x 60
- Weight (kg)
- 0.99
B LONGSIDE SIZE 6 GALV
Art. No. BLS0000060015
- External dimensions WxHxD (mm)
- 40 x 298 x 60
- Weight (kg)
- 1.2
B LONGSIDE SIZE 8 GALV
Art. No. BLS0000080015
- External dimensions WxHxD (mm)
- 40 x 358 x 60
- Weight (kg)
- 1.4
B PARTITION WALL SIZE 2 GALV
Art. No. BPW0000020015
- External dimensions WxHxD (mm)
- 8 x 181 x 60
- Weight (kg)
- 0.7
B PARTITION WALL SIZE 4 GALV
Art. No. BPW0000040015
- External dimensions WxHxD (mm)
- 8 x 239.5 x 60
- Weight (kg)
- 0.91
B PARTITION WALL SIZE 6 GALV
Art. No. BPW0000060015
- External dimensions WxHxD (mm)
- 8 x 298 x 60
- Weight (kg)
- 1.2
B PARTITION WALL SIZE 8 GALV
Art. No. BPW0000080015
- External dimensions WxHxD (mm)
- 8 x 358 x 60
- Weight (kg)
- 1.4
B SHORTSIDE 120 GALV
Art. No. BSH0001200015
- External dimensions WxHxD (mm)
- 120 x 60 x 40
- Weight (kg)
- 0.66
B LONGSIDE SIZE 2 AISI316
Art. No. BLS0000020021
- External dimensions WxHxD (mm)
- 40 x 181 x 60
- Weight (kg)
- 0.7
B LONGSIDE SIZE 4 AISI316
Art. No. BLS0000040021
- External dimensions WxHxD (mm)
- 40 x 239.5 x 60
- Weight (kg)
- 0.86
B LONGSIDE SIZE 6 AISI316
Art. No. BLS0000060021
- External dimensions WxHxD (mm)
- 40 x 298 x 60
- Weight (kg)
- 1.1
B LONGSIDE SIZE 8 AISI316
Art. No. BLS0000080021
- External dimensions WxHxD (mm)
- 40 x 358 x 60
- Weight (kg)
- 1.27
B PARTITION WALL SIZE 2 AISI316
Art. No. BPW0000020021
- External dimensions WxHxD (mm)
- 8 x 181 x 60
- Weight (kg)
- 0.67
B PARTITION WALL SIZE 4 AISI316
Art. No. BPW0000040021
- External dimensions WxHxD (mm)
- 8 x 239.5 x 60
- Weight (kg)
- 0.9
B PARTITION WALL SIZE 6 AISI316
Art. No. BPW0000060021
- External dimensions WxHxD (mm)
- 8 x 298 x 60
- Weight (kg)
- 1.09
B PARTITION WALL SIZE 8 AISI316
Art. No. BPW0000080021
- External dimensions WxHxD (mm)
- 8 x 358 x 60
- Weight (kg)
- 1.33
SHORTSIDE 120 AISI316
Art. No. BSH0001200021
- External dimensions WxHxD (mm)
- 120 x 60 x 40
- Weight (kg)
- 0.64
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- B (en) pdf (manufacturer document)
- S1590412 B FRAME SIZE 2 ASSEMBLY PDF (manufacturer document)
- S1590465 B FRAME SIZE 4 ASSEMBLY PDF (manufacturer document)
- S1590987 B FRAME SIZE 6 ASSEMBLY PDF (manufacturer document)
- S1590993 B FRAME SIZE 8 ASSEMBLY PDF (manufacturer document)
- S1591943 B FRAME LONG SIDE PDF (manufacturer document)
- S1591975 B FRAME PARTITION WALL PDF (manufacturer document)
- S1592074 B FRAME SHORT SIDE 60 & 120 PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| RISE | E fire EI fire | Brickwork Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete Sandwich | Construction Other Telecom | ABS Copper PE Plastic PVC Steel | 0402-CPR-SC1479-11 (ETA-11/0313) | No renewal status stated |
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction Telecom | Conduit Steel | C-AJ-8309 | No renewal status stated |
| Roxtec International AB | E fire EI fire | Brickwork Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete Sandwich | Construction Telecom | ABS Copper PE Plastic PVC Steel | CE Declaration of Conformity (ETA-11/0313) | No renewal status stated |
| Roxtec International AB | E fire EI fire | Brickwork Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete Sandwich | Construction Other Telecom | ABS Copper PE Plastic PVC Steel | CE Declaration of Performance (DoP) ETA 11/0313 | No renewal status stated |
| Myndigheten för samhällsskydd och beredskap | Blastload | Concrete Steel | Construction Other | Copper Steel | SRG7p-2026 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | — | Conduit Steel | W-J-1301 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Fiber Telecom | — | W-J-3245 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Fiber Telecom | — | W-J-3246 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3247 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3250 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3252 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Armored Construction | — | W-J-3254 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete Lightweight concrete | Construction Telecom | — | W-J-8076 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3359 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3362 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3364 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | W-L-3366 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Sandwich | Construction Fiber Telecom | Conduit Steel | W-N-8002 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Other Telecom | — | XHEZ.C-AJ-3160 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Concrete | Other Telecom | — | XHEZ.W-J-3052 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Fiber Other Telecom | — | XHEZ.W-L-3114 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Fiber Other Telecom | — | XHEZ.W-L-3115 | No renewal status stated |
| Underwriters Laboratories Inc. | F fire T fire | Gypsum | Armored Construction Other | — | XHEZ.W-L-3485 | No renewal status stated |
| Deutsches Institut für Bautechnik, DIBt | S fire | Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete | Armored Fiber Other Shielded Unshielded | — | Z-19.15-1925 | No renewal status stated |
| Deutsches Institut für Bautechnik, DIBt | S fire | Concrete | Other | Copper Steel | Z-19.53-2310 | No renewal status stated |
| Deutsches Institut für Bautechnik, DIBt | S fire | Casted Concrete Concrete or Brickwork Gypsum Lightweight concrete | Armored Fiber Other Shielded Unshielded | — | Z-19.53-2417 | No renewal status stated |
| Deutsches Institut für Bautechnik, DIBt | S fire | Brickwork Concrete Gypsum | Other | Copper Plastic Steel | Z-19.53-2545 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
