Roxtec rectangular frames

Roxtec B bolted Ex frame

Roxtec rectangular frames · Roxtec

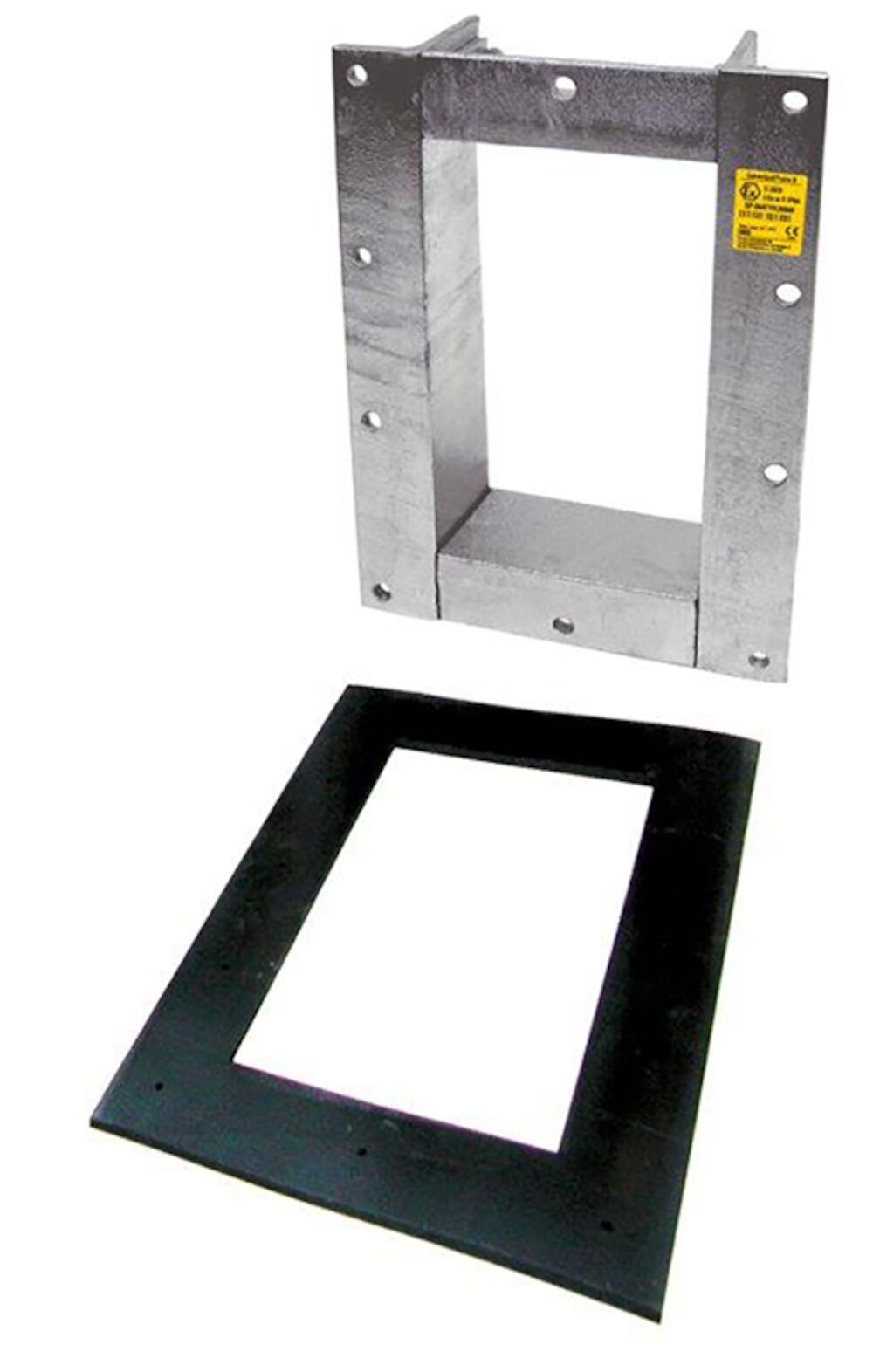

The Roxtec B…B Ex metal frame with flange is assembled into different sizes and combinations. It is suitable also for installation around existing cables and pipes. The B…B Ex frame is approved for use in potentially explosive atmospheres.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by bolting

Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.

Article numbers and specifications

Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.

B 6x1 B Ex GALV

Art. No. EXBBB0600000115

Aperture dimensions WxH (mm): 146(+1/-1) x 243(+1/-1)
External dimensions WxHxD (mm): 200.5 x 298 x 60
Frame openings: 1
Packing space (mm): 120 x 180
Weight (kg): 3.7

Quote this article number

B 6x2 B Ex GALV

Art. No. EXBBB0600000215

Aperture dimensions WxH (mm): 274(+1/-1) x 243(+1/-1)
External dimensions WxHxD (mm): 329 x 298 x 60
Frame openings: 2
Packing space (mm): 120 x 180
Weight (kg): 6.1

Quote this article number

B 6x3 B Ex GALV

Art. No. EXBBB0600000315

Aperture dimensions WxH (mm): 403(+1/-1) x 243(+1/-1)
External dimensions WxHxD (mm): 457.5 x 298 x 60
Frame openings: 3
Packing space (mm): 120 x 180
Weight (kg): 8.7

Quote this article number

B 2x1 B Ex GALV

Art. No. EXBBB0200000115

Aperture dimensions WxH (mm): 146(+1/-1) x 126(+1/-1)
External dimensions WxHxD (mm): 200.5 x 181 x 60
Frame openings: 1
Packing space (mm): 120 x 60
Weight (kg): 2.8

Quote this article number

B 2x2 B Ex GALV

Art. No. EXBBB0200000215

Aperture dimensions WxH (mm): 274(+1/-1) x 126(+1/-1)
External dimensions WxHxD (mm): 329 x 181 x 60
Frame openings: 2
Packing space (mm): 120 x 60
Weight (kg): 4.49

Quote this article number

B 2x3 B Ex GALV

Art. No. EXBBB0200000315

Aperture dimensions WxH (mm): 403(+1/-1) x 126(+1/-1)
External dimensions WxHxD (mm): 457.5 x 181 x 60
Frame openings: 3
Packing space (mm): 120 x 60
Weight (kg): 7

Quote this article number

B 2x4 B Ex GALV

Art. No. EXBBB0200000415

Aperture dimensions WxH (mm): 531(+1/-1) x 126(+1/-1)
External dimensions WxHxD (mm): 586 x 181 x 60
Frame openings: 4
Packing space (mm): 120 x 60
Weight (kg): 9.35

Quote this article number

B 2x5 B Ex GALV

Art. No. EXBBB0200000515

Aperture dimensions WxH (mm): 670(+1/-1) x 126(+1/-1)
External dimensions WxHxD (mm): 714.5 x 181 x 60
Frame openings: 5
Packing space (mm): 120 x 60
Weight (kg): 14.32

Quote this article number

B 4x1 B EX GALV

Art. No. EXBBB0400000115

Aperture dimensions WxH (mm): 146(+1/-1) x 185(+1/-1)
External dimensions WxHxD (mm): 200.5 x 239.5 x 60
Frame openings: 1
Packing space (mm): 120 x 120
Weight (kg): 3.2

Quote this article number

B 4x2 B Ex GALV

Art. No. EXBBB0400000215

Aperture dimensions WxH (mm): 274(+1/-1) x 185(+1/-1)
External dimensions WxHxD (mm): 329 x 239.5 x 60
Frame openings: 2
Packing space (mm): 120 x 120
Weight (kg): 5.8

Quote this article number

B 4x3 B Ex GALV

Art. No. EXBBB0400000315

Aperture dimensions WxH (mm): 403(+1/-1) x 185(+1/-1)
External dimensions WxHxD (mm): 457.5 x 239.5 x 60
Frame openings: 3
Packing space (mm): 120 x 120
Weight (kg): 7.5

Quote this article number

B 4x4 B Ex GALV

Art. No. EXBBB0400000415

Aperture dimensions WxH (mm): 531(+1/-1) x 185(+1/-1)
External dimensions WxHxD (mm): 586 x 239.5 x 60
Frame openings: 4
Packing space (mm): 120 x 120
Weight (kg): 10.2

Quote this article number

B 4x5 B Ex GALV

Art. No. EXBBB0400000515

Aperture dimensions WxH (mm): 670(+1/-1) x 185(+1/-1)
External dimensions WxHxD (mm): 714.5 x 239.5 x 60
Frame openings: 5
Packing space (mm): 120 x 120
Weight (kg): 11.3

Quote this article number

B 6x4 B Ex GALV

Art. No. EXBBB0600000415

Aperture dimensions WxH (mm): 531(+1/-1) x 243(+1/-1)
External dimensions WxHxD (mm): 586 x 298 x 60
Frame openings: 4
Packing space (mm): 120 x 180
Weight (kg): 11

Quote this article number

B 6x5 B Ex GALV

Art. No. EXBBB0600000515

Aperture dimensions WxH (mm): 670(+1/-1) x 243(+1/-1)
External dimensions WxHxD (mm): 714.5 x 298 x 60
Frame openings: 5
Packing space (mm): 120 x 180
Weight (kg): 13.62

Quote this article number

B 8x1 B Ex GALV

Art. No. EXBBB0800000115

Aperture dimensions WxH (mm): 146(+1/-1) x 303(+1/-1)
External dimensions WxHxD (mm): 200.5 x 358 x 60
Frame openings: 1
Packing space (mm): 120 x 240
Weight (kg): 4.43

Quote this article number

B 8x2 B Ex GALV

Art. No. EXBBB0800000215

Aperture dimensions WxH (mm): 274(+1/-1) x 303(+1/-1)
External dimensions WxHxD (mm): 329 x 358 x 60
Frame openings: 2
Packing space (mm): 120 x 240
Weight (kg): 6.99

Quote this article number

B 8x3 B Ex GALV

Art. No. EXBBB0800000315

Aperture dimensions WxH (mm): 403(+1/-1) x 303(+1/-1)
External dimensions WxHxD (mm): 457.5 x 358 x 60
Frame openings: 3
Packing space (mm): 120 x 240
Weight (kg): 9.8

Quote this article number

B 8x4 B Ex GALV

Art. No. EXBBB0800000415

Aperture dimensions WxH (mm): 531(+1/-1) x 303(+1/-1)
External dimensions WxHxD (mm): 586 x 358 x 60
Frame openings: 4
Packing space (mm): 120 x 240
Weight (kg): 12.4

Quote this article number

B 8x5 B Ex GALV

Art. No. EXBBB0800000515

Aperture dimensions WxH (mm): 670(+1/-1) x 303(+1/-1)
External dimensions WxHxD (mm): 714.5 x 358 x 60
Frame openings: 5
Packing space (mm): 120 x 240
Weight (kg): 15.53

Quote this article number

Reference documents

These links open current files hosted by Roxtec. Check the source document revision before use.

FRAMES Ex (en) pdf (manufacturer document)
S1016534 B FRAME EX COMBINATION FRAME pdf (manufacturer document)
S1016535 B FRAME EX SINGEL FRAME pdf (manufacturer document)

Source-listed certificates

Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.

Authority	Rating	Division / structure	Cable	Pipe	Type approval	Status
CSA	IP tightness UL/NEMA tightness	—	Other	Copper Steel	1333944	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	2254189	No renewal status stated
SGS	Ex	—	Armored Other	Conduit	25-08-162752/E25-08-169410/NB0002	No renewal status stated
LLC SERTIS-CENTER	Ex	—	Other	Conduit	CII 23.0812 X	No renewal status stated
CSA	Ex	—	Armored Other	Conduit	CSAE 23UKEX1066X	No renewal status stated
Roxtec International AB	Ex	—	—	—	DoC RM and HD Ex	No renewal status stated
Nemko	Ex	—	Other	—	IECEx NEM 120014X	No renewal status stated
NCC	Ex	—	Other	Conduit	NCC 11.0174 X	No renewal status stated
Nemko	Ex	—	—	—	Nemko 12ATEX1278X	No renewal status stated
RISE	Ex	—	—	—	RISE25ATEX0001	No renewal status stated

Source checked 2026-08-08: official Roxtec product page.

About Roxtec rectangular frames

Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
