LABSEAL C LTX WITH COUNTER FRAME 0-40
Art. No. 241407
- Aperture dimensions WxH (mm)
- 165(+2/-1) x 261(+2/-1)
- External dimensions WxHxD (mm)
- 201 x 296 x 86
- Frame openings
- 2
- Packing space (mm)
- 60 x 180
- Weight (kg)
- 2.93
Roxtec rectangular frames

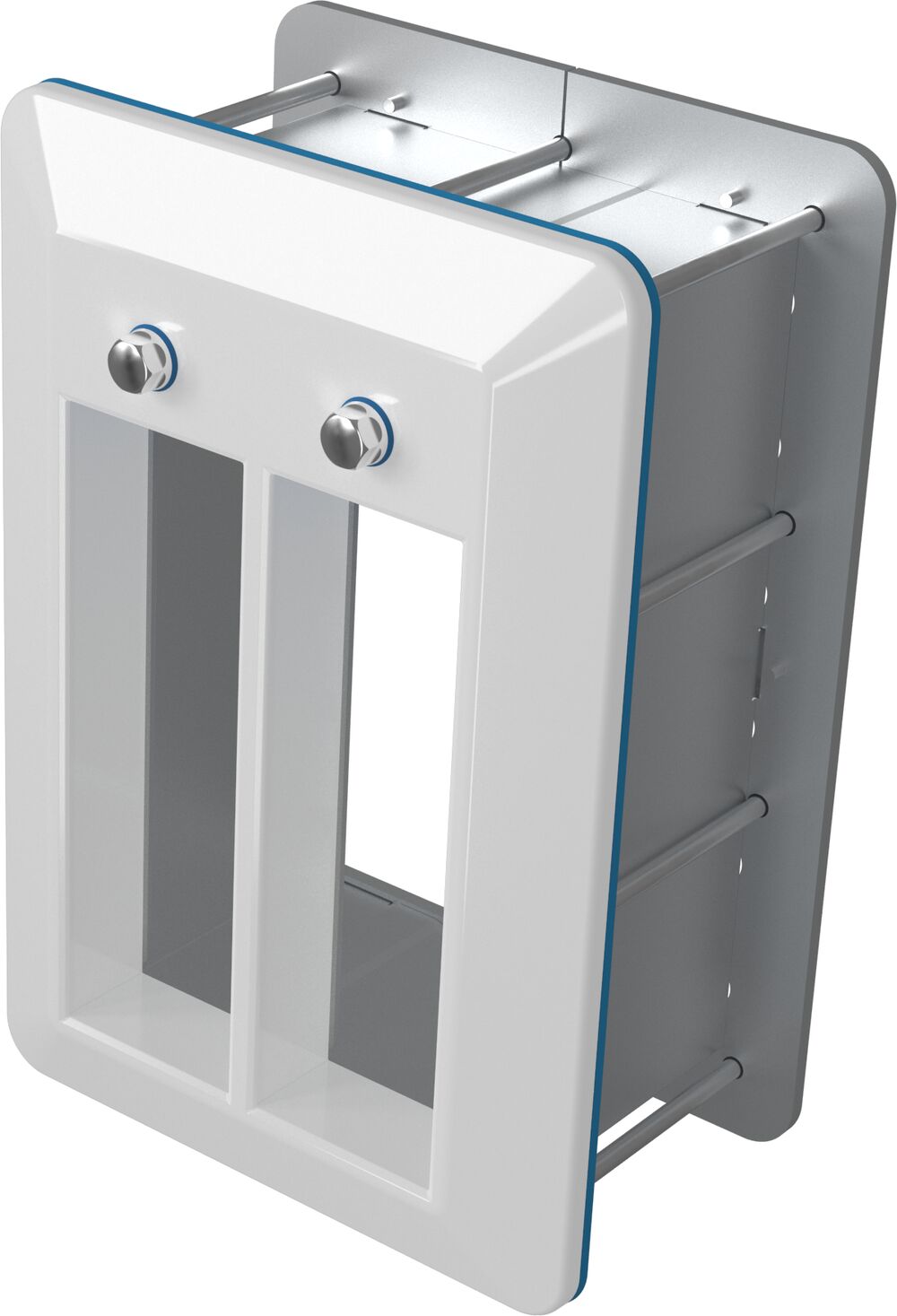

LabSeal™ C LTX frame
Roxtec rectangular frames · Roxtec
The Roxtec LabSeal™ frame is a lightweight, area efficient and easy-to-clean cable and pipe transit frame in powder-coated aluminum. It is hygienically designed and optimized for laboratory and cleanroom applications. The frame has integrated compression units and a rubber flange gasket.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Designed for attachment to sandwich panels
- Available in kits
- Available in powder-coated aluminum
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
LABSEAL C LTX WITH EXT. FRAME 90-100
Art. No. 244894
- Aperture dimensions WxH (mm)
- 165(+2/-1) x 261(+2/-1)
- External dimensions WxHxD (mm)
- 201 x 296 x 146
- Frame openings
- 2
- Packing space (mm)
- 60 x 180
- Weight (kg)
- 3.5
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- Roxtec LabSeal C LTX (en) pdf (manufacturer document)
- S1610073 LABSEAL C LTX FRAME CONFIGURATIONS PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| Fraunhofer IPA | — | — | — | — | RO 2505-1624 | No renewal status stated |
| Fraunhofer IPA | — | — | — | — | RO 2508-1666_01 | No renewal status stated |
| Fraunhofer IPA | — | — | — | — | RO 2508-1666_02 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
Not sure this is the right product? Compare the Roxtec rectangular frames family or describe your application.
