CSP 16 AISI316 FRAME ASSEMBLY
Art. No. 233728
- Aperture dimensions WxH (mm)
- 109(+1/-0.5) x 109(+1/-0.5)
- External dimensions WxHxD (mm)
- 131 x 140 x 63.5
- Frame openings
- 2
- Packing space (mm)
- 40 x 80
- Weight (kg)
- 1.8
Roxtec rectangular frames

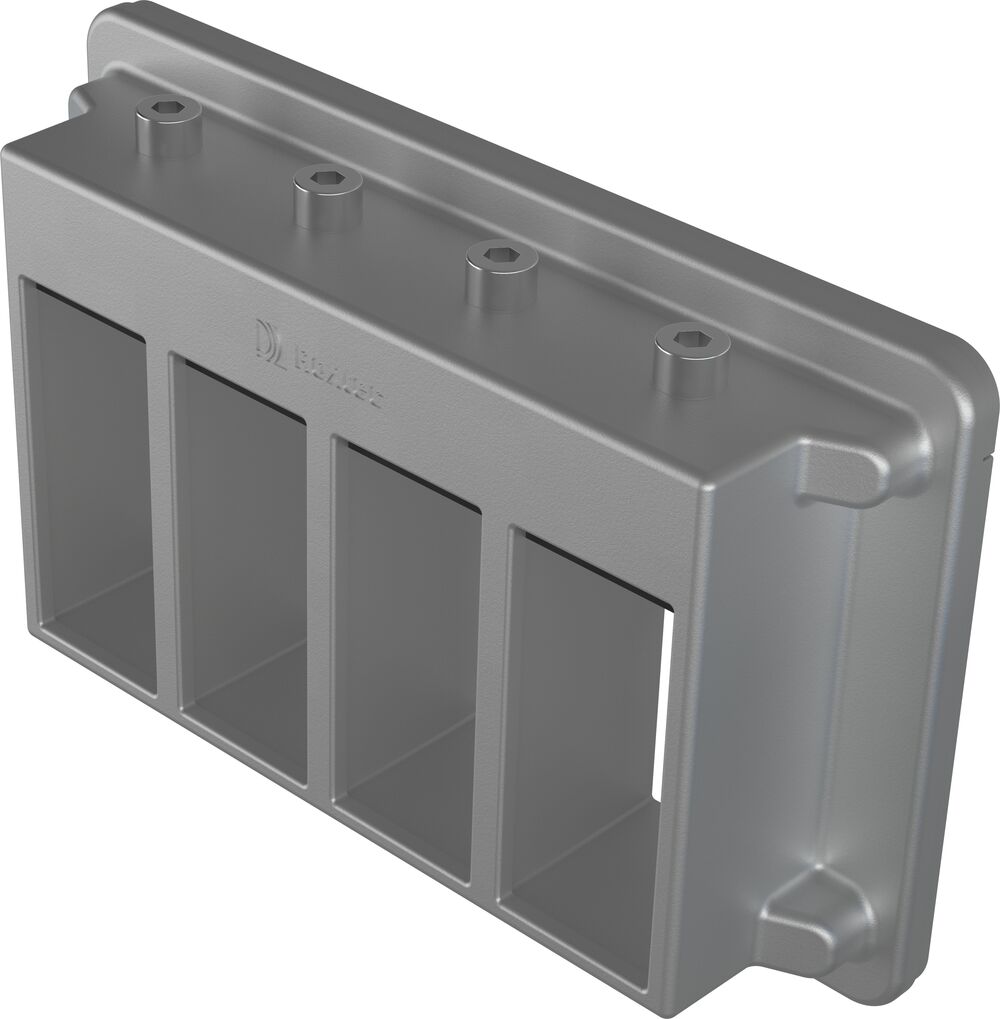

Roxtec CSP frame
Roxtec rectangular frames · Roxtec
The Roxtec CSP 16/32 transit device frame is ideal for high cable density applications in cabinets and enclosures. It is made of acid proof stainless steel, has an integrated compression unit and is certified for use with Roxtec sealing modules.
- To be used with Roxtec HD modules or CM BG™ modules to form a complete sealing solution
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
CSP 32 AISI316 FRAME ASSEMBLY
Art. No. 233729
- Aperture dimensions WxH (mm)
- 201(+1/-0.5) x 109(+1/-0.5)
- External dimensions WxHxD (mm)
- 223 x 140 x 63.5
- Frame openings
- 4
- Packing space (mm)
- 40 x 80
- Weight (kg)
- 2.87
Reference documents
These links open current files hosted by Roxtec. Check the source document revision before use.
- CSP (en) pdf (manufacturer document)
- S1602060 CSP 16 APERTURE DIMENSION PDF (manufacturer document)
- S1602062 CSP 32 APERTURE DIMENSION PDF (manufacturer document)
- S1604690 CSP 16 AISI316 FRAME ASSEMBLY PDF (manufacturer document)
- S1604693 CSP 32 AISI316 FRAME ASSEMBLY PDF (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| CSA | IP tightness UL/NEMA tightness | — | Other | Copper Steel | 1333944 | No renewal status stated |
| Underwriters Laboratories Inc. | IP tightness UL/NEMA tightness | — | — | — | E496911 | No renewal status stated |
Source checked 2026-08-08: official Roxtec product page.
About Roxtec rectangular frames
Roxtec rectangular frames form the frame portion of modular cable and pipe transit systems. Frame type and components must be matched to the opening and application.
Typical applications:
- Walls and floors
- Bulkheads and decks
- Cabinets and enclosures
