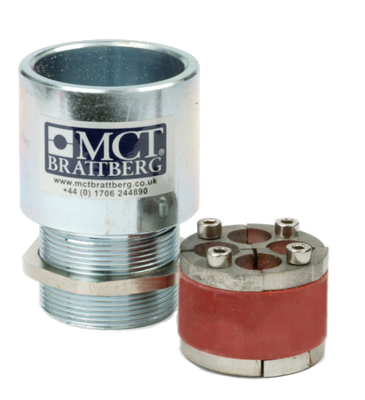

MSR glands
MCT Brattberg seals, glands and joints · MCT Brattberg
The MSR glands are designed to seal up to 8 cables between 4 and 32 mm (0.16” and 1.26”) diameter. And pipes between 4-30 mm.
- Sealing up to 8 cables between 4 and 32 mm
- Pressure tested up to 5 bar
- MED Modular B approved for use in cruise liners & passenger vessels
- Each gland accommodates a range of cable diameters
- No additional parts or on site machining required
- Gland manufactured from stainless steel with electro plating
- No welding required
Performance and specifications
- Maritime resistance to fire
- A0, A60
- Water-tightness
- Glands 5 Bar - SR,MSR,GLANDS - Catastrophic pressure load
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- MSR 40 TYPE 3 1170223 B (technical drawing)
- LR26270387SFTC (pdf) (manufacturer document)
- MSR 40 TYPE 1 1170220 B (technical drawing)
- MSR 63 TYPE 1 1170232 B (technical drawing)
- MSR Instruction (pdf) (manufacturer document)
- MSR 63 TYPE 1 1170231 B (technical drawing)
- SR,MSR,DB EU DECLARATION OF CONFORMITY LR22490809MB (pdf) (manufacturer document)
- MSR 50 TYPE 2 1170225 B (technical drawing)
- MSR 40 TYPE 2 1170222 B (technical drawing)
- MSR Data Sheet (manufacturer document)
- LR26270388MB (pdf) (manufacturer document)
- MSR 40 TYPE 3 1170224 B (technical drawing)
- MSR Data Sheet (manufacturer document)
- MSR 63 TYPE 1 1180416 C (technical drawing)
- MSR 50 TYPE 3 1170229 B (technical drawing)
- MSR 20 TYPE 1 1170230 B (technical drawing)
Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg seals, glands and joints
MCT Brattberg seals, glands, and joints cover specialized cable and pipe entry arrangements. Quote review confirms the opening, cable or pipe dimensions, pressure, and installation method.
Typical applications:
- Cable and pipe seals
- Bulkhead and deck glands
- Pressure-tight joints
- Custom train and industrial penetrations
Not sure this is the right product? Compare the MCT Brattberg seals, glands and joints family or describe your application.
