RGSF
MCT Brattberg systems · MCT Brattberg

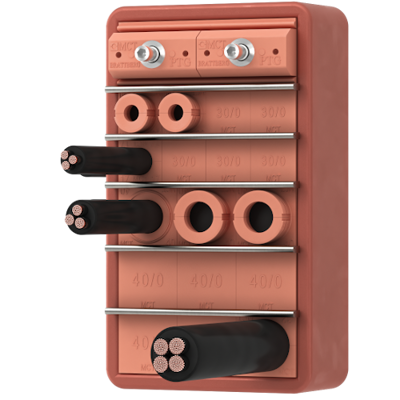

RGSF is a standard RGS transit with a flange that allows the frame to be welded into a hole which is slightly larger than the frame. The flange helps reinforce the frame during welding to the construction, less risk of deformation. For installations where cables are already in place, specify RGSFO which has a removable end.
- For holes larger than the frame
Performance and specifications
- Gas-tightness
- 4 Bar - Catastrophic pressure load
- Ingress protection
- IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
- Maritime resistance to fire
- A0, A60, H0, H60, H120
- Water-tightness
- 6 Bar - Catastrophic pressure load
- Working temperature
- -65 to +70 °C
Configuration options
Use these source-listed options to describe the required configuration. Final selection is confirmed with the quote.
Frame or opening sizes
- Available values
- 1 - (60x100 mm), 2 - (120x100 mm), 3 - (60x160 mm), 4 - (120x160 mm), 5 - (60x220 mm), 6 - (120x220 mm), 7 - (60x280 mm), 8 - (120x280 mm)
Materials
- Available values
- Primer, Stainless Steel, Galvanized, Aluminium
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- RGSF 8X8 1190432 A (technical drawing)
- RGSF 6X2 1190416 A (technical drawing)
- LR26332337MB (pdf) (manufacturer document)
- RGSF 4X2 1190406 A (technical drawing)
- RGSF 8X5 1190429 A (technical drawing)
- RGSF 4X5 1190409 A (technical drawing)
- RGSF 6X1 1190415 A (technical drawing)
- LR26332338UKMB (pdf) (manufacturer document)
- RGSF 2X9 1190403 A (technical drawing)
- RGSF 6X10 1190424 A (technical drawing)
- RGSF 2X8 1190402 A (technical drawing)
- RGSF 4X8 1190412 A (technical drawing)
- RGSF 8X3 1190427 A (technical drawing)
- Welding Guidelines (pdf) (installation instruction)
- RGSF 2X1 1190395 A (technical drawing)
- RGSF 4X1 1190405 A (technical drawing)
- RGSF 2X6 1190400 A (technical drawing)
- TAE00001U2 (pdf) (manufacturer document)
- RGSF 8X2 1190426 A (technical drawing)
- RGSF 4X6 1190410 A (technical drawing)
- RGSF 6X3 1190417 A (technical drawing)
- 27842 B0 BV (pdf) (manufacturer document)
- RGSF 4X4 1190408 A (technical drawing)
- RGSF 8X6 1190430 A (technical drawing)
- Installation Guide Rectangular Frames (pdf) (installation instruction)
- RGSF 6X4 1190418 A (technical drawing)
- RGS EU DECLARATION OF CONFORMITY LR22218988MB (pdf) (manufacturer document)
- RGSF 2X3 1190397 A (technical drawing)
- RGSF 6X8 1190422 A (technical drawing)
- LR23410499SF (pdf) (manufacturer document)
- RGSF 4X7 1190411 A (technical drawing)
- RGSF 8X7 1190431 A (technical drawing)
- RGSF 4X9 1190413 A (technical drawing)
- RGSF 6X6 1190420 A (technical drawing)
- 25-0261160-PDA (pdf) (technical drawing)
- RGSF 8X4 1190428 A (technical drawing)
- LR26270336SFTC (pdf) (manufacturer document)
- RGSF 2X10 1190404 A (technical drawing)
- RGSF 6X9 1190423 A (technical drawing)
- LR2425142MD (pdf) (manufacturer document)
- RGSF 4X10 1190414 A (technical drawing)
- LR26270050SFTC (pdf) (manufacturer document)
- RGSF 8X10 1190434 A (technical drawing)
- RGSF 8X9 1190433 A (technical drawing)
- RGSF 8X1 1190425 A (technical drawing)
- TAF00000KE (pdf) (manufacturer document)
- RGSF 2X5 1190399 A (technical drawing)
- 25-0033756-1-1-PDA (pdf) (technical drawing)
- RGSF 6X5 1190419 A (technical drawing)
- LR23320483SF (pdf) (manufacturer document)
- RGSF 2X7 1190401 A (technical drawing)
- RGSF 6X7 1190421 A (technical drawing)
- RGSF 4X3 1190407 A (technical drawing)
- RGSF 2X2 1190396 A (technical drawing)
- Letter cables pipes (pdf) (manufacturer document)
- TAF00000TJ (pdf) (manufacturer document)
- RGSF 2X4 1190398 A (technical drawing)
Source checked 2026-08-08: official MCT Brattberg product page.
