MCT Brattberg

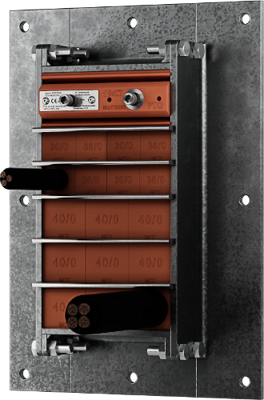

RGG Ex
These Ex approved cable and pipe transits are used in high-risk land-based environments to minimize danger by preventing the spread of fire, water, gas, chemicals and other hazardous substances. RGG Ex transit is bolted onto a concrete wall or floor or a plaster board wall. It is manufactured from a 60x60x6 mm angle bar.
- For bolting
Performance and specifications
- Ingress protection
- IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
- Resistance to fire
- EI30, EI60, EI90, EI240 - EN-1366-3, EI120
- Working temperature
- -65 to +70 °C
Configuration options
Use these source-listed options to describe the required configuration. Final selection is confirmed with the quote.
- Frame or opening sizes
- 1 - (60x100 mm), 2 - (120x100 mm), 3 - (60x160 mm), 4 - (120x160 mm), 5 - (60x220 mm), 6 - (120x220 mm), 7 - (60x280 mm), 8 - (120x280 mm)
- Materials
- Primer, Stainless Steel, Galvanized, Aluminium
Reference documents
These links open manufacturer-hosted reference files. Check each source document revision before use.
55 documents shown
manufacturer document (8)
technical drawing (46)
- RGG 2X7 1190699 A
- RGG 8X3 1190912 A
- RGG 8X4 1190913 A
- RGG 3X1 1200044 A
- RGG 2X9 1190701 A
- RGG 4X5 1190778 A
- RGG 2X2 1190694 A
- RGG 5X1 1200045 A
- RGG 8X6 1190915 A
- RGG 8X7 1190916 A
- RGG 2X6 1190698 A
- RGG 2X3 1190695 A
- COFC 80208206 (pdf)
- RGG 6X5 1190852 A
- RGG 6X10 1190857 A
- RGG 4X10 1190783 A
- RGG 6X8 1190855 A
- RGG 8X9 1190918 A
- RGG 4X6 1190779 A
- RGG 4X2 1190775 A
- RGG 8X1 1190910 A
- RGG 4X8 1190781 A
- RGG 6X3 1190850 A
- RGG 4X1 1190774 A
- RGG 4X9 1190782 A
- RGG 8X5 1190914 A
- RGG 6X1 1190848 A
- RGG 4X4 1190777 A
- RGG 2X8 1190700 A
- RGG 6X7 1190854 A
- ETA CE Drawings (pdf)
- RGG 6X2 1190849 A
- RGG 8X10 1190919 A
- RGG 6X9 1190856 A
- RGG 8X2 1190911 A
- RGG 6X4 1190851 A
- RGG 4X7 1190780 A
- RGG 6X6 1190853 A
- RGG 2X10 1190702 A
- RGG 2X4 1190696 A
- RGG 4X3 1190776 A
- RGG 2X5 1190697 A
- RGG 2X1 1190693 A
- RGG 1X1 1200043 A
- RGG 7X1 1200046 A
- RGG 8X8 1190917 A
installation instruction (1)
Product sources
- Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg systems
MCT Brattberg transit systems include rectangular, round, EMC, and Ex configurations for cable and pipe penetrations. Frame type, size, material, and packing components are confirmed during quote review.
Typical applications:
- Rectangular cable and pipe transits
- Round penetrations
- EMC and grounding applications
- Hazardous-area penetrations
