E-RGSbtb
MCT Brattberg systems · MCT Brattberg

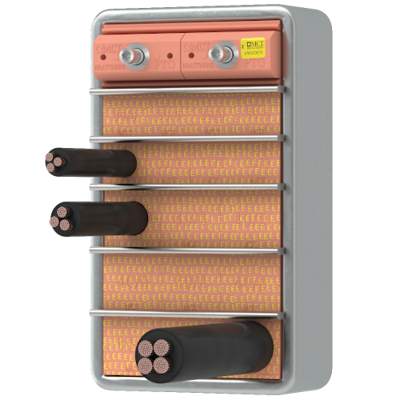

E-RGSbtb is a double transit which is packed from both sides, enabling on site pressure testing of the penetration. Installations with this frame can be pressure tested from the space between the pack block units. They also conform to jet-fire rating.
- For twice the safety
Performance and specifications
- Gas-tightness
- 4 Bar - Catastrophic pressure load
- Ingress protection
- IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
- Maritime resistance to fire
- A60, H60
- Water-tightness
- 6 Bar - Catastrophic pressure load
- Working temperature
- -65 to +70 °C
Configuration options
Use these source-listed options to describe the required configuration. Final selection is confirmed with the quote.
Frame or opening sizes
- Available values
- 1 - (60x100 mm), 2 - (120x100 mm), 3 - (60x160 mm), 4 - (120x160 mm), 5 - (60x220 mm), 6 - (120x220 mm), 7 - (60x280 mm), 8 - (120x280 mm)
Materials
- Available values
- Primer, Stainless Steel, Galvanized, Aluminium
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- RGS BTB 6X1 1190269 A (technical drawing)
- RGS BTB 2X5 1190253 A (technical drawing)
- RGS BTB 4X4 1190262 A (technical drawing)
- LR26332337MB (pdf) (manufacturer document)
- RGS BTB 2X3 1190251 A (technical drawing)
- RGS BTB 2X2 1190250 A (technical drawing)
- LR26332338UKMB (pdf) (manufacturer document)
- RGS BTB 4X9 1190267 A (technical drawing)
- RGS BTB 4X5 1190263 A (technical drawing)
- RGS BTB 8X4 1190282 A (technical drawing)
- G&B Datasheet (manufacturer document)
- LR23398477SF (pdf) (manufacturer document)
- RGS BTB 6X8 1190276 A (technical drawing)
- RGS BTB 8X2 1190280 A (technical drawing)
- Welding Guidelines (pdf) (installation instruction)
- RGS BTB 6X10 1190278 A (technical drawing)
- TAE00001U2 (pdf) (manufacturer document)
- 27842 B0 BV (pdf) (manufacturer document)
- RGS BTB 2X10 1190258 A (technical drawing)
- RGS BTB 2X6 1190254 A (technical drawing)
- RGS EU DECLARATION OF CONFORMITY LR22218988MB (pdf) (manufacturer document)
- RGS BTB 6X3 1190271 A (technical drawing)
- RGS BTB 8X7 1190285 A (technical drawing)
- RGS BTB 6X7 1190275 A (technical drawing)
- RGS BTB 6X4 1190272 A (technical drawing)
- RGS BTB 2X9 1190257 A (technical drawing)
- LR23410499SF (pdf) (manufacturer document)
- Installation Guide EMC Rectangular Frames (pdf) (installation instruction)
- RGS BTB 4X6 1190264 A (technical drawing)
- RGS BTB 8X5 1190283 A (technical drawing)
- RGS BTB 4X3 1190261 A (technical drawing)
- RGS BTB 2X7 1190255 A (technical drawing)
- 25-0261160-PDA (pdf) (technical drawing)
- RGS BTB 4X8 1190266 A (technical drawing)
- RGS BTB 6X5 1190273 A (technical drawing)
- RGS BTB 2X4 1190252 A (technical drawing)
- RGS BTB 8X3 1190281 A (technical drawing)
- RGS BTB 6X6 1190274 A (technical drawing)
- RGS BTB 4X2 1190260 A (technical drawing)
- LR2425142MD (pdf) (manufacturer document)
- RGS BTB 6X9 1190277 A (technical drawing)
- RGS BTB 4X10 1190268 A (technical drawing)
- LR26270050SFTC (pdf) (manufacturer document)
- TAF000009S (pdf) (manufacturer document)
- RGS BTB 8X1 1190279 A (technical drawing)
- RGS BTB 2X1 1190249 A (technical drawing)
- TAF00000KE (pdf) (manufacturer document)
- 23-2395108-PDA (pdf) (technical drawing)
- 25-0033756-1-1-PDA (pdf) (technical drawing)
- RGS BTB 4X1 1190259 A (technical drawing)
- RGS BTB 8X8 1190287 A (technical drawing)
- RGS BTB 8X10 1190288 A (technical drawing)
- RGS BTB 8X6 1190284 A (technical drawing)
- RGS BTB 2X8 1190256 A (technical drawing)
- RGS BTB 4X7 1190265 A (technical drawing)
- RGS BTB 6X2 1190270 A (technical drawing)
- TAF00000TJ (pdf) (manufacturer document)
Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg systems
MCT Brattberg transit systems include rectangular, round, EMC, and Ex configurations for cable and pipe penetrations. Frame type, size, material, and packing components are confirmed during quote review.
Typical applications:
- Rectangular cable and pipe transits
- Round penetrations
- EMC and grounding applications
- Hazardous-area penetrations
Not sure this is the right product? Compare the MCT Brattberg systems family or describe your application.
