E-RGB
MCT Brattberg systems · MCT Brattberg

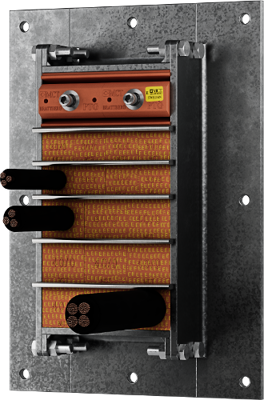

These cable and pipe transits are used in high-risk land-based environments to minimize danger by preventing the spread of fire, water, gas, chemicals and other hazardous substances. E-RGB provide the same sealing as the standard MCT Brattberg system but with added, built-in protection against electromagnetic pulse (due to lightning or nuclear blast) and interference (EMI), electronic sabotage (synthetic EMP) and static electricity. E-RGB frame type is casted into a concrete wall or floor. It is manufactured from a 60x60x6 mm angle bar.
- Standard E-series
- The E-RGB is also approved for grounding and bonding applications.
Performance and specifications
- Ingress protection
- IP65, IP66, IP67, IP68, Nema 250 - type 3R, 4X, 12.
- Resistance to fire
- EI30, EI60, EI90, EI120, EI240 - EN-1366-3
- Working temperature
- -65 to +70 °C
Configuration options
Use these source-listed options to describe the required configuration. Final selection is confirmed with the quote.
Frame or opening sizes
- Available values
- 1 - (60x100 mm), 2 - (120x100 mm), 3 - (60x160 mm), 4 - (120x160 mm), 5 - (60x220 mm), 6 - (120x220 mm), 7 - (60x280 mm), 8 - (120x280 mm)
Materials
- Available values
- Primer, Stainless Steel, Galvanized, Aluminium
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Reference documents
These links open current files hosted by MCT Brattberg. Check the source document revision before use.
- RGB 4X7 1190451 A (technical drawing)
- RGB 4X2 1190446 A (technical drawing)
- RGB 8X4 1190468 A (technical drawing)
- RGB 2X10 1190444 A (technical drawing)
- RGB 8X3 1190467 A (technical drawing)
- RGB 2X4 1190438 A (technical drawing)
- RGB 8X5 1190469 A (technical drawing)
- RGB 8X9 1190473 A (technical drawing)
- RGB 2X3 1190437 A (technical drawing)
- RGB 8X1 1190465 A (technical drawing)
- RGB 8X6 1190470 A (technical drawing)
- RGB 2X6 1190440 A (technical drawing)
- RGB 4X5 1190449 A (technical drawing)
- RGB 2X1 1190435 A (technical drawing)
- RGB 4X8 1190452 A (technical drawing)
- RGB 6X3 1190457 A (technical drawing)
- RGB 6X7 1190461 A (technical drawing)
- RGB 6X5 1190459 A (technical drawing)
- RGB 6X9 1190463 A (technical drawing)
- RGB 4X10 1190454 A (technical drawing)
- Installation Guide EMC Rectangular Frames (pdf) (installation instruction)
- RGB 2X8 1190442 A (technical drawing)
- RGB 4X4 1190448 A (technical drawing)
- RGB 8X8 1190472 A (technical drawing)
- RGB 2X5 1190439 A (technical drawing)
- RGB 6X2 1190456 A (technical drawing)
- RGB 8X2 1190466 A (technical drawing)
- RGB 6X10 1190464 A (technical drawing)
- RGB 4X3 1190447 A (technical drawing)
- RGB 6X1 1190455 A (technical drawing)
- RGB 6X6 1190460 A (technical drawing)
- RGB 6X4 1190458 A (technical drawing)
- RGB 4X1 1190445 A (technical drawing)
- ETA CE Drawings (pdf) (technical drawing)
- RGB 2X9 1190443 A (technical drawing)
- RGB 8X7 1190471 A (technical drawing)
- RGB 4X6 1190450 A (technical drawing)
- RGG/B DoP (pdf) (manufacturer document)
- RGB 6X8 1190462 A (technical drawing)
- RGB 2X2 1190436 A (technical drawing)
- RGB 4X9 1190453 A (technical drawing)
- RGB 8X10 1190474 A (technical drawing)
Source checked 2026-08-08: official MCT Brattberg product page.
