Waveguides
MCT Brattberg insert blocks · MCT Brattberg

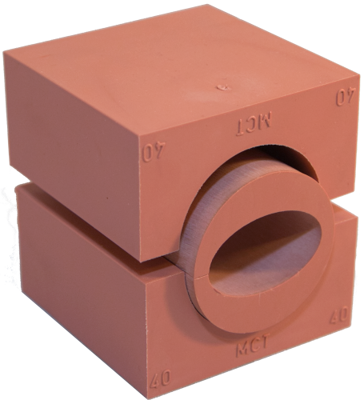

MCT Brattberg has a specially adapted range of insert blocks for the installation of waveguides. Where the waveguide passes straight through a transit system. It is possible to use a fixed type insert block, manufactured to the specific dimensions of the waveguide. However, if there is a possibility that the waveguide may pass through the transit at an undetermined angle then a revolving core version should be used, this is then installed inside a standard insert block.
- For waveguides
- Installed in a solid insert block where Waveguide goes through the transit in a straight line.
- Also available with a revolving core for increased flexibility. The core is adapted to the standard insert block.
- Does not pinch the Waveguide.
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg insert blocks
MCT Brattberg insert blocks fill transit frames around cables and pipes. Block style and dimensions must match the cable or pipe and the selected system.
Typical applications:
- Cable and pipe packing
- Spare capacity
- EMC configurations
- Non-standard cable arrangements
