MCT Brattberg
ALF Cabinet Seal

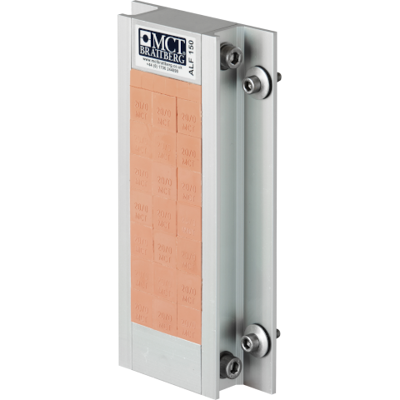

ALF cabinet seal is a cable penetration for applications where dust and water tightness are demanded. Complete kit with gasket, sealing washers, bolts and nuts.
- Easy to install - no special tools needed
- Available as standard ALF and E-ALF (EMC)
- Complete kit
Performance and specifications
- Ingress protection
- IP66, IP67
- Resistance to fire
- EI30, EI60
- Working temperature
- -65 to +70 °C
Reference documents
These links open manufacturer-hosted reference files. Check each source document revision before use.
30 documents shown
manufacturer document (30)
- ALF 90+90 W40
- ALF 60 W60
- ALF 150+150X2 W60
- ALF 60 W40
- MCT Brattberg technical document
- ALF 120X2 W60
- ALF NEMA (pdf)
- ALF 120 W60
- ALF 150 W40
- ALF 120X2 W40
- ALF 120+120X2 W60
- ALF 150+150 W40
- ALF 90 W40
- ALF 120 W40
- ALF IP 67 (pdf)
- ALF Cabinet Seal Instruction
- ALF 150+150X2 W40
- ALF 150X2 W60
- ALF 150 W60
- ALF 90 W60
- ALF 120+120X2 W40
- ALF 150X2 W40
- ALF 90X2 W40
- ALF 120+120 W60
- ALF 90+90 W60
- ALF 150+150 W60
- ALF 90X2 W60
- ALF 120+120 W40
- ALF 90+90X2 W40
- ALF 90+90X2 W60
Product sources
- Source checked 2026-08-08: official MCT Brattberg product page.
About MCT Brattberg cabinet seals
MCT Brattberg cabinet seals support cable entry into cabinets and enclosures. The opening, cable layout, installation access, and protection requirement determine the configuration.
Typical applications:
- Electrical cabinets
- Server and data cabinets
- Retrofit cable entry
- EMC cabinet entry
