MARINE BLANKET 96 -6
Art. No. 100903
- Amount/package
- 6
- Contents
- 7300 x 100 x 25 mm
FireSeal marine systems
Marine Flex System
FireSeal marine systems · FireSeal

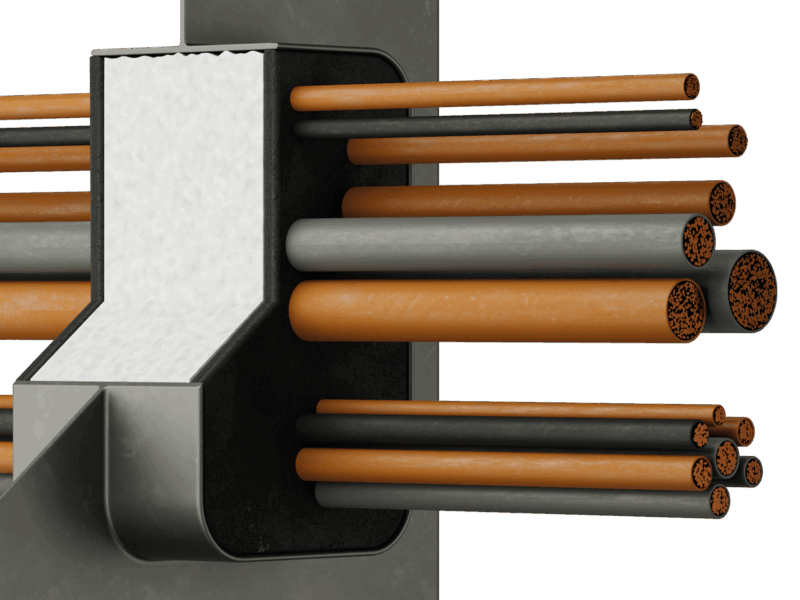

A marine sealing system for cable and pipe penetrations. The component set and installation arrangement depend on the opening, service, and specified conditions.
- For marine cable and pipe penetrations
- Uses sealant, blanket, and related installation components
- Package rows identify each system component
Performance and specifications
- Application Temperature
- 5 - 35°C
- Approved Pipe Diameter
- DN250
- Curing Time (15mm thk)
- Abt. 1 week
- Electrical Properties
- Insulating
- Fire Rating
- A0 - A60, H0 - H120
- Gas Blast
- 1,4 Bar
- Gas Tightness
- 0,03 Bar
- Hardness
- 15 Shore A
- Marine Blanket Color
- Off-white
- Marine Blanket Density
- 96kg/m³
- Marine Blanket Working Temp
- >1200°C
- Marine Flex Color
- Black or White
- Marine Flex Density
- 1400 kg/m³
- Marine Flex Working Temp
- -65°C up-to 250°C
- Pressure Resistance
- Up to 4,0 Bar
- Shelf Life
- 12 months
- Sleeve Depth (total)
- Min. 250 mm H120, Min.150 mm A0-A60
- Sound Attenuation
- 55 dBA
- Tensile Strength
- 0.7 MPa
- Thickness Silicone Sealant
- 2 x 15 mm(*12,5mm)
- Working Time
- 20 - 30 minutes
Pricing, availability, and lead time are confirmed on quote — send your quantities and application details and a human responds.
Article numbers and specifications
Select the closest article number, then include the opening, cable or pipe sizes, quantity, and required date in the request.
MARINE BLANKET 96 -1
Art. No. 100904
- Amount/package
- 1
- Contents
- 7300 x 610 x 25 mm
MARINE FLEX SEALANT
Art. No. 100906
- Amount/package
- 15
- Color
- White
- Contents
- 310 ml
MARINE FLEX SEALANT
Art. No. 100907
- Amount/package
- 15
- Color
- Black
- Contents
- 310 ml
INTUMESCENT SLEEVE
Art. No. 100908
- Amount/package
- 1
- Contents
- Ø50 mm 330 mm
SPACER MARIN FLEX 200ST
Art. No. 100915
- Amount/package
- 200
- Color
- White
- Contents
- 10x180
CARTRIDGE NOZZLE LONG 25
Art. No. 313380
- Amount/package
- 25
- Contents
- 170 mm
ANGLE NOZZLE ADAPTER -25
Art. No. 313390
- Amount/package
- 25
Reference documents
These links open current files hosted by FireSeal. Check the source document revision before use.
- Marine Flex System Installation Guide ABS (installation instruction)
- Marine Flex System Installation Guide and Retrofit Sandwich Panel (installation instruction)
- Marine Flex System Retrofit ABS (installation instruction)
- Marine Flex System Installation Guide 180-200mm (installation instruction)
- Marine Flex System Installation Guide 150mm (installation instruction)
- MED DoC MEDB00006W3 Rev.6 (manufacturer document)
- MED DoC MEDB00002G2 Rev.6 (manufacturer document)
- MED DoC MEDB000046B Rev.8 (manufacturer document)
- MED DoC MEDB000049W Rev.6 (manufacturer document)
- MED DoC MEDB00007ZN Rev.6 (manufacturer document)
- MED DoC MEDB00007ZR Rev.6 (manufacturer document)
- MED DoC MEDB0000AW4 Rev.1 (manufacturer document)
- MED DoC MEDB0000B5D Rev.1 (manufacturer document)
- Marine Blanket SDS ES (manufacturer document)
- Marine Blanket SDS DE (manufacturer document)
- Marine Blanket SDS DK (manufacturer document)
- Marine Blanket SDS EN (manufacturer document)
- Marine Blanket SDS NO (manufacturer document)
- Marine Flex SDS DE (manufacturer document)
- Marine Flex SDS DK (manufacturer document)
- Marine Flex SDS ES (manufacturer document)
- Marine Flex SDS EN (manufacturer document)
- Marine Flex SDS NO (manufacturer document)
- Marine Flex SDS SE (manufacturer document)
- Marine Flex System inspection control (manufacturer document)
- Marine Blanket TDS (manufacturer document)
- Marine Flex TDS (manufacturer document)
Source-listed certificates
Certificate rows reproduce factual source fields. They do not confirm applicability to a specific assembly. Open the source record and ask AMFSS to check the application.
| Authority | Rating | Division / structure | Cable | Pipe | Type approval | Status |
|---|---|---|---|---|---|---|
| MEDB000049W Rev.1 A0/A60 | — | — | — | — | — | No renewal status stated |
| MEDB00007ZN A0/A60 | — | — | — | — | — | No renewal status stated |
| MEDB00007ZR A0/A60 | — | — | — | — | — | No renewal status stated |
| LR24146365SF A60 | — | — | — | — | — | No renewal status stated |
| 26-0564624-PDA H0/H120 | — | — | — | — | — | No renewal status stated |
| MED-D MEDD00001JN | — | — | — | — | — | No renewal status stated |
| 21.10021.262 A60 | — | — | — | — | — | No renewal status stated |
| LR24146355SF A60 | — | — | — | — | — | No renewal status stated |
| LR21450083SF H120 | — | — | — | — | — | No renewal status stated |
| MEDB0000B5D A0/A60 | — | — | — | — | — | No renewal status stated |
| LR24146365SF A60 | — | — | — | — | — | No renewal status stated |
| MEDB00002G2 Rev.2 A0 | — | — | — | — | — | No renewal status stated |
| 70554/A0 BV A0/A60 | — | — | — | — | — | No renewal status stated |
| TA24166E(N) A0 | — | — | — | — | — | No renewal status stated |
| MEDB000046B-rev.2 A0/A60 | — | — | — | — | — | No renewal status stated |
| CPH18371-FP001 A0/A60 | — | — | — | — | — | No renewal status stated |
| SW22PTB00005_02 A0/A60 | — | — | — | — | — | No renewal status stated |
| 21.10022.262 A60 | — | — | — | — | — | No renewal status stated |
| 26-0571445-PDA A0/A60 | — | — | — | — | — | No renewal status stated |
| MEDB0000AW4 A0/A60 | — | — | — | — | — | No renewal status stated |
| MEDB00006W3 A0 | — | — | — | — | — | No renewal status stated |
| 22-2226077-PDA A0/A60 | — | — | — | — | — | No renewal status stated |
| 24-0013394-PDA A0/A60 | — | — | — | — | — | No renewal status stated |
| SW22PTB00005_01 A0/A60 | — | — | — | — | — | No renewal status stated |
| LR2446567SF A0/A60 | — | — | — | — | — | No renewal status stated |
| 21.10024.262 A0 | — | — | — | — | — | No renewal status stated |
| 26-0514725-PDA A0/A60 | — | — | — | — | — | No renewal status stated |
| LR24146594SF A60 | — | — | — | — | — | No renewal status stated |
| 70555/A1 BV A0/A60 | — | — | — | — | — | No renewal status stated |
| 22-2226078-PDA A0/A60 | — | — | — | — | — | No renewal status stated |
| LR24146421SF A60 | — | — | — | — | — | No renewal status stated |
Source checked 2026-08-08: official FireSeal product page.
About FireSeal marine systems
FireSeal marine systems cover cable, metal-pipe, plastic-pipe, and joint sealing applications for vessels and offshore structures. The exact system, package article, and approval scope are confirmed during quote review.
Typical applications:
- Marine cable penetrations
- Metal and plastic pipe penetrations
- Deck and bulkhead openings
- New installations and retrofit work
Not sure this is the right product? Compare the FireSeal marine systems family or describe your application.
